Name: Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6111
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Rapid Temperature Change Test Chamber

Model NO.: UP-6111

Emperature Range: -70ºC~+180ºC

Humidity Range: 10%~98%Rh

Temperature Fluctuation: ±1ºC

Humidity Fluctuation: ±2.5%Rh

Warranty: 1 Year

Custom Service: OEM,ODM

Power: Three-phase, 380V/50Hz

Size Service: Support Customer Customization

Highlight:

Emergency Shutdown Rapid Temperature Change Test Chamber

High-Precision Programmable Controller Environmental Test Chamber

SUS#304 Stainless Steel Construction Temperature Cycling Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6111

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller

Product Description

Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown

This chamber is engineered to simulate extreme rapid temperature change environments for product tolerance testing. It achieves exceptionally high heating and cooling rates (5°C/min to 40°C/min or higher) to perform temperature cycling, thermal shock, and high-low temperature fatigue testing. This equipment evaluates the reliability, performance degradation, and potential failures of electronic products, automotive components, aerospace equipment, and various materials under severe temperature variations.

Design Features

Cable ports on the left side for easy specimen wiring during measurement or voltage application
Hinged door mechanism preventing auto-closing for enhanced safety
Compliance with major environmental test standards including IEC, JEDEC, and SAE
Safety tested with CE certification

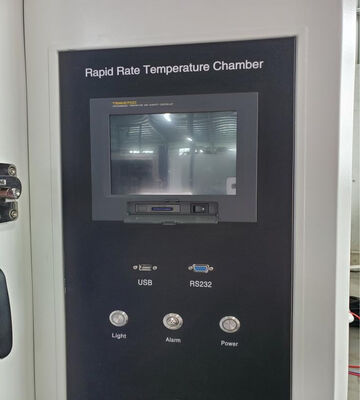

Programmable Controller

High-precision programmable touch screen controller for stable operation
Multiple step types including ramp, soak, jump, auto-start, and end functions

Technical Specifications

Internal Dimension (W×D×H)	1000×800×1000mm
External Dimension (W×D×H)	1580×1700×2260mm
Working Capacity	800 liter
Material of Internal Chamber	SUS#304 stainless steel, mirror finished
Material of External Chamber	Stainless steel with paint spray
Temperature Range	-70°C to +180°C
Temperature Fluctuation	±1°C
Heating Rate	5°C/min
Cooling Rate	5°C/min
Sample Tray	SUS#304 stainless steel, 3 pieces
Testing Hole	Diameter 50mm, for cable routing
Power	Three-phase, 380V/50Hz
Safety Protection Devices	Leakage protection, over-temperature protection, compressor over-voltage and overload protection, heater short circuit protection
Insulation Material	Compound material without sweating, specialized for low pressure
Heating Method	Electrical
Compressor	Imported new generation with low noise

Our Service Process

Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Specifications Customization Process

Create detailed drawings for customized requirements, provide reference photos for product appearance, and finalize solutions with confirmed pricing.

Production and Delivery Process

Manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.

Installation and After-Sales Service

Provide field installation services and comprehensive after-sales support for optimal equipment performance.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment; Urgent requirements receive special arrangement priority.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo placement.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power cables to begin operation. On-site installation assistance is available when necessary.
