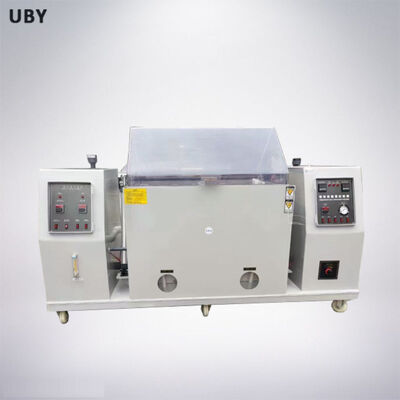

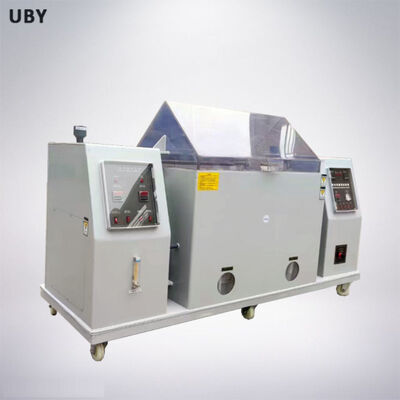

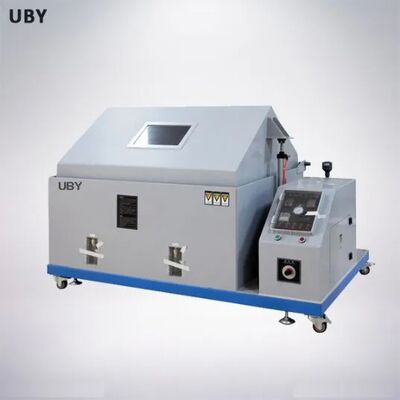

Name: UP-6197 Easy-to-Operate Salt Spray Test Chamber with Anti Crystallization Nozzle for Cyclic Corrosion Testing
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Price: 4,799.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Salt Spray Test Chamber

Model NO.: UP-6197

Warranty: 1 Year

Custom Service: OEM,ODM

Sample Room Temperature: RT~55ºC

Saturation Barrel Temperature: 35ºC~70ºC

Emperature Deviation: ±2ºC (no Load)

Temperature Fluctuation: ±0.5ºC (no Load)

Salt Spray Deposition: 1.0 ~2.0ml/80cm2.h

Salt Spray Concentration: 5±0.5%

Air Pressure: 0.2 - 0.4Mpa (for Reference)

Spray Pressure: 0.05 ~ 0.17 Mpa/cm (for Reference)

Highlight:

Easy-to-Operate Salt Spray Test Chamber

Anti Crystallization Nozzle Corrosion Test Chamber

Cyclic Corrosion Test Salt Fog Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 30 Unit/month

Gallery

UP-6197 Easy-to-Operate Salt Spray Test Chamber with Anti Crystallization Nozzle for Cyclic Corrosion Testing

Product Description

UP-6197 Easy-to-Operate Salt Spray Cyclic Corrosion Test Chamber

This salt spray fog corrosion test chamber determines the corrosion resistance of iron metals, inorganic films, or organic films. Ideal for testing automotive components (rearview mirrors, audio systems, electronics, lighting), electrical products, watches, hardware, outdoor lighting, communication devices, locomotives, instrumentation, aerospace components, and waterproof strips. Custom interior configurations available to meet specific application requirements.

Compliance Standards

CNS: 3627, 3385, 4159, 7669, 8886 | JIS: D0201, H8502, H8610, K5400, Z2371 | ISO: 3768, 3769, 3770 | ASTM: 8117, B268

Technical Specifications

Model	UP6197-60	UP6197-90	UP6197-120
Internal Dimension WxHxD (mm)	600x400x450	900x500x600	1200x500x800
External Dimension WxHxD (mm)	1100x600x1200	1400x1200x900	2100x1400x1300
Lab Temperature	Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C
Pressure Bucket Temperature	Saline test (NSS ACSS) 47±1°C; Corrosion Test (CASS) 63±1°C
Lab Capacity (L)	270	480	640
Saline Capacity (L)	25	40	40
Saline Concentration	5% NaCl concentration, or 0.26g CuCl₂·2H₂O per liter of 5% NaCl
Compressed Air Pressure	1.0~6.0 Kgf
Spray Volume	1.0~2.0ml/80cm²/h (16-hour minimum operation, average value)

Key Features

Constructed with tank, pneumatic system, heating unit, and control system
Anti-corrosion, high-temperature resistant imported PVC tank with high-temperature welded joints
Transparent fiberglass upper cover for easy sample observation
Water-sealing structure prevents salt fog overflow
Multi-layer racks for versatile sample positioning
Tower spray system ensures uniform fog distribution and prevents crystallization
Independent heating system for optimal temperature control
RKC temperature controller with PID function for precision and durability
Side-mounted control panel with lockable door for easy maintenance

Our Service Commitment

Consultative Selling Process

Inquiry Phase: Technical consultation, product recommendations, and competitive pricing
Customization Phase: Detailed drawings, reference photos, and final solution confirmation
Production Phase: Quality manufacturing with progress updates and calibration services
Delivery & Support: Timely shipping, installation assistance, and comprehensive after-sales service

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with extended coverage for international shipping. We provide remote technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.

What is your delivery timeline?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.

Do you offer customization and OEM services?

Yes, we provide both standard and customized machines according to your specifications, including OEM and ODM services with your logo.

How do I install and operate the equipment?

We provide comprehensive English operation manuals and videos. Most machines are pre-assembled and only require power connection. On-site installation assistance is available when necessary.
