Name: UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Price: 4,799.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Ice Water Splashing Immersion Test Chamber

Model NO.: UP-6300

Temperature Range: Rt+10 ºC ~ 150 ºC

Heating Rate: Rt+10 ºC ~ 150 ºC ≤45min.

Cooling Rate: 25 ºC ~ 2 ºC ≤60min.

Warranty: 1 Year

Custom Service: OEM,ODM

Additional Service: Support Customer Customization

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Specification: Refer To The Actual Size Specifications

Highlight:

SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber

7-inch LCD Touch Screen Environmental Test Chamber

French Taikang Compressor Automotive Parts Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 30 Unit/month

Gallery

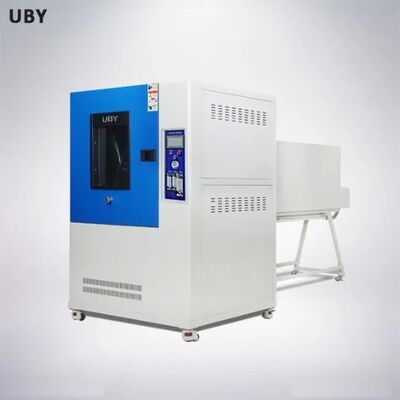

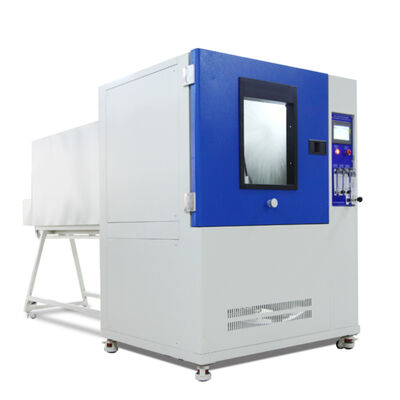

UP-6300 SUS316# Stainless Steel Ice Water Splashing Immersion Test Chamber with 7-inch LCD Touch Screen and French Taikang Compressor for Automotive Parts

Product Description

UP-6300 Reliable Ice Water Splashing Immersion Test Chamber for Automotive Parts

This advanced ice water splashing immersion test chamber is designed for comprehensive testing of automotive parts and electronic components. It performs both ice water splash and immersion tests to simulate winter conditions and assess material reliability.

Product Overview

Application: Automotive accessories, electronic and electrical products
Function: Composite testing chamber for ice water splash and immersion tests to simulate winter conditions on vehicle components

Compliance Standards

Complies with international standards GB/T 28046.4-2011 (ISO 16750-4:2006) and VW80000:2009-10 LV124 for automotive electrical and electronic component testing requirements.

Key Features

Dual functionality for ice water splash and immersion testing
High-quality steel construction with durable surface coating
SUS316 stainless steel inner box for long-term rust resistance
High-density glass fiber insulation for thermal stability
Transparent observation window with LED lighting
Advanced temperature control system with uniform distribution
Double-layer high-temperature sealing for test area confinement
100mm test port for power/signal line access
User-friendly control panel with touch screen interface
Mobility features with lockable casters
PLC control system with imported electrical components
French Taikang compressor refrigeration system
Precision flow control with automatic constant current
Automatic water level management for efficient operation
Pipeline and inner box automatic cleaning function

Technical Specifications

Dimensions and Sample Restrictions
Inner Box Size	1200×900×700 mm (W×D×H)
Basket Size	Approx. 840×680×650 mm (W×D×H)
Outer Dimensions	Approx. 1800×1520×2150 mm (W×D×H)
Sample Restrictions	Flammable, explosive, volatile, corrosive, biological samples, and strong electromagnetic sources prohibited

Technical Performance
Temperature Range	RT+10°C to 150°C
Temperature Deviation	≤2°C
Temperature Uniformity	≤2°C (no-load condition)
Test Water Temperature	0°C to +4°C
Test Water Control	5P chiller with pure titanium evaporator
Test Cycles	0-100 times (presettable)
Basket Load Capacity	100kg (automatically controllable lifting)

Our Comprehensive Service

We provide consultative selling services throughout the entire business process:

Inquiry Process: Technical discussion, product recommendation, and competitive pricing
Customization Process: Detailed drawings, reference photos, and final solution confirmation
Production & Delivery: Quality production with progress updates, calibration, and timely shipping
Installation & Support: Field installation and comprehensive after-sales service

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of environmental chambers and testing equipment. Every machine includes a 12-month warranty (extended to 14 months considering sea transportation). We offer free maintenance and provide technical support via email, phone, or video chat with solutions within 24-48 hours.

What about the delivery term?

Standard machines: 3-7 working days for stock items, 15-20 working days for non-stock items after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
