Home /Products/Environmental Test Chamber/Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window

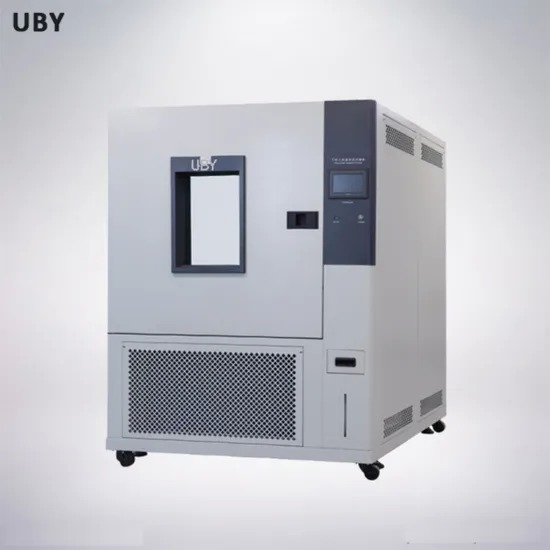

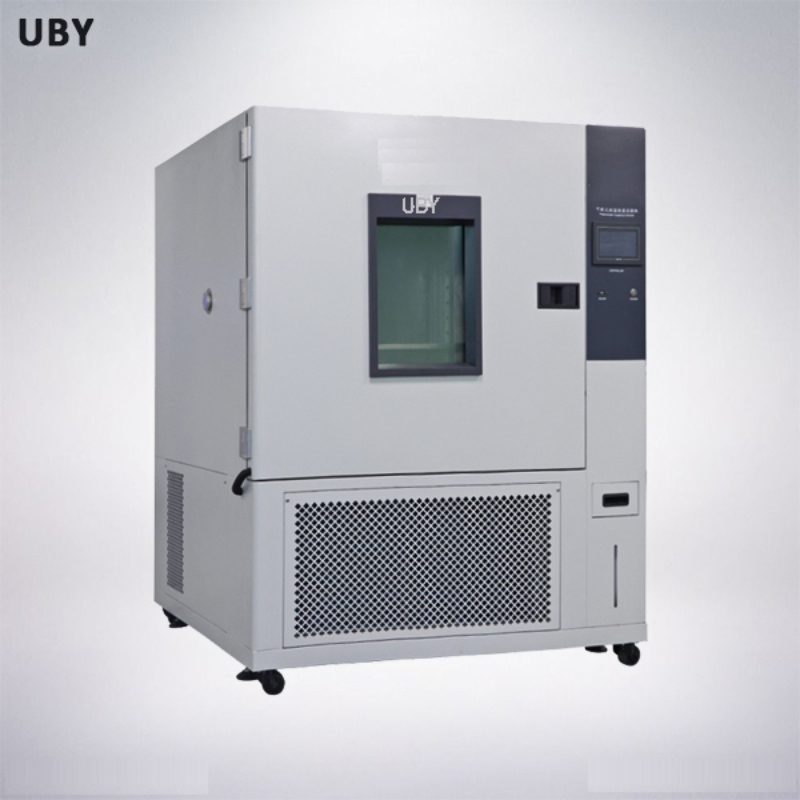

Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window

1 Unit
MOQ
$599~$8999
Price
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Model NO.: UP-6195
HS Code: 8514199000
Temperature Range: -70°C~150°C
Humidity Range: 20%~98%Rh
Temp Uniformity: ±1.0°C
Humidity Fluctuation: ±2.5%R.H
Warranty: 1 Year
Custom Service: OEM,ODM
Additional Service: Support Customer Customization
Size Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

Programmable Environmental Test Chamber

,

Precision Temperature Humidity Test Chamber

,

Large Glass Window Climate Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description
Programmable Temperature Humidity Test Chamber
This precision testing chamber simulates various environmental conditions for testing material performance including heat resistance, dry resistance, humidity resistance, and cold resistance capabilities.
Applications & Standards
Complies with international standards: IEC60068 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Key Features
  • Large glass window with hollow electric plating film and anti-condensation design, built-in lighting for real-time sample observation
  • Large-size LCD display with simple operation and program editing capabilities, PID automatic calculation function with failure message display
  • SUS304 mirror-face stainless steel inner box with steel outer box, CNC machine tool processed for precise construction
  • RS-232 communication interface with recorder compatibility and strong expandability
  • High-intensity PU foam and high-density glass fiber cotton insulation to minimize energy loss
Technical Specifications
Product Model UP-6195-50 UP-6195-100 UP-6195-250 UP-6195-500 UP-6195-1000A UP-6195-1000B UP-6195-2000
Chamber Volume (W×D×H) cm 56×30×30 63×40×40 70×60×60 102×70×70 158×80×80 91×100×110 200×110×90
Starting Power 5kw 6kw 8kw 10kw 15kw 15kw 20kw
Operating Power 3kw 3.4kw 5kw 6kw 7kw 7kw 9kw
Environmental Temperature: 5~35ºC
Environmental Humidity: ≤90% R.H
Temperature Range: 10~40ºC (high temperature cleaning 250ºC)
Humidity Range: 40~70% R.H (20ºC~30ºC)
Temperature Fluctuation: ±0.3ºC
Temperature Deviation: ±0.5ºC
Humidity Fluctuation: ±2.5% R.H
Humidity Deviation: ±3%
Recovery Rate: Formaldehyde, octanol, 4-phenyl cyclohexene, dodecane and tetradecane have recovery rate >80%
Background Concentration: Single VOC <2 μg/m³, TVOC <20 μg/m³
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window 0 Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window 1 Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window 2 Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window 3
Our Service Process
  • Inquiry Process: Technical consultation, product recommendations, and competitive pricing
  • Customization Process: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality production with progress updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
  • Are you a manufacturer with after-sales service? Yes, we are professional manufacturers with 12-month warranty and extended support. Technical assistance provided within 24-48 hours.
  • What is the delivery time? Standard machines: 3-7 days in stock, 15-20 days for production. Urgent orders accommodated.
  • Do you accept customization and branding? Yes, we offer OEM/ODM services including custom specifications and logo placement.
  • How is installation handled? Machines shipped pre-assembled with English operation manuals/videos. On-site installation assistance available.
