Home /Products/Environmental Test Chamber/UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing

UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing

1 Unit
MOQ
$599~$8999
Price
UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6195
Warranty: 1 Year
Custom Service: OEM,ODM
Temperature Range: -20~+150ºC
Temperature Fluctuation: ±0.5ºC
Temperature Uniformity: <=2.0ºC
Humidity Control Range: 20%R.H~98%R.H
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

programmable thermal cycle chamber

,

rapid-rate environmental test chamber

,

thermal chamber with reinforced latches
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 20 Unit/month
Product Description
UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber With Reinforced Door Latches and Silicone Gaskets
Product Overview

The Programmable Constant Temperature and Humidity Test Chamber is designed for environmental simulation reliability testing of industrial products. It features precise temperature and humidity control with a wide operating range, meeting the performance requirements of GB5170.2.3.5.6-95 standards for electrical and electronic products environmental testing equipment.

This tester is specifically used for surface erosion resistance testing of various materials processed by paint, plating, and anodizing treatments.

Key Features
  • Energy saving and consumption reduction: Utilizes gas-liquid bypass mode to adjust cooling capacity for constant temperature and humidity control
  • Easy to operate: Programmable color LCD touch controller with PID control and flexible experimental data recording and processing
  • High reliability: Key components are imported to ensure long service life and operational reliability
Technical Specifications
Parameter Details
Temperature range -20ºC ~ +150ºC
Temperature fluctuation ±0.5ºC
Temperature uniformity <=2.0ºC
Heating rate From -20ºC to +100ºC within 40min (no load, ambient temperature +25ºC)
Cooling rate From +20ºC to -20ºC within 40min (no load, ambient temperature +25ºC)
Humidity control range 20%R.H~98%R.H
Humidity deviation ±3.0%RH(>75%RH)
±5.0%RH(≤75%RH)
Humidity uniformity ±3.0%RH(no-load)
Humidity fluctuation ±1.0%RH
Interior dimension: WxHxD(mm) 500x750x600
Carton size: WxHxD(mm) 720×1650×1370
Warm box External wall material: High quality carbon steel plate, surface electrostatic color spray treatment. Left side has φ50mm diameter hole. Inner wall material: SUS304# stainless steel plate. Insulation material: Hard polyurethane foam insulation layer + glass fiber.
Box door Single door with heating wire in door frame to prevent condensation at low temperature
Inspection window W 300×H 400mm observation window with multi-layer hollow electrothermal coated glass for heat retention and condensation prevention
Lighting device 1 LED lighting device installed on the window
Sample Stand Stainless steel sample rack with 2 layers, height adjustable, bearing weight 30kg/layer
Refrigeration compressor France Taikang fully closed compressor
Coolants Non-fluorine environmental refrigerant R404A, compliant with environmental regulations, safe and non-toxic
Condenser system Air-cooled
Safety protection devices Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning.
Power supply AC380V; 50Hz; 6KW

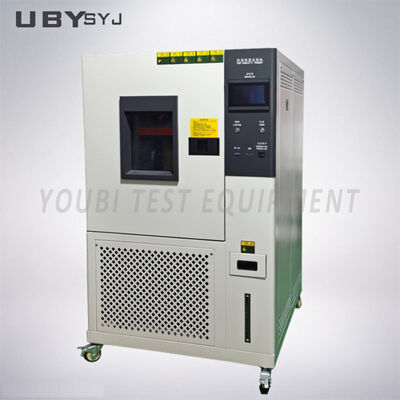

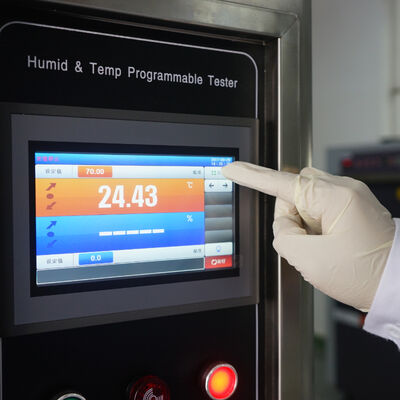

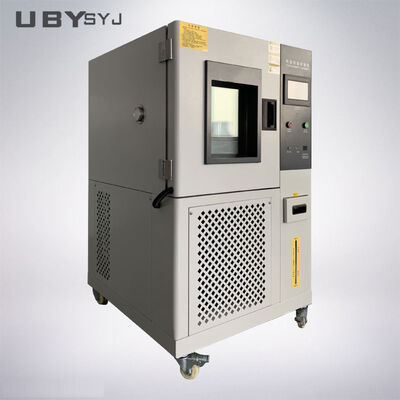

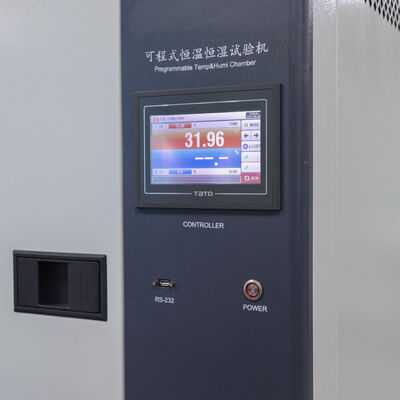

Product Images
UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing 0 UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing 1 UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing 2 UP-6195 Programmable Rapid-Rate Thermal Cycle Chamber with Reinforced Door Latches and Silicone Gaskets for Environmental Testing 3
Our Service Process
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization Process: Create drawings for custom requirements, provide reference photos, and confirm final solution and pricing
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and arrange timely shipping
  • Installation and After-Sales Service: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend this to 14 months. If your machine experiences issues, contact us via email or phone. We'll diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. We offer on-site installation assistance when necessary.
