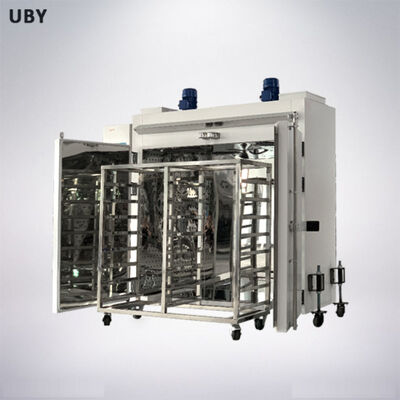

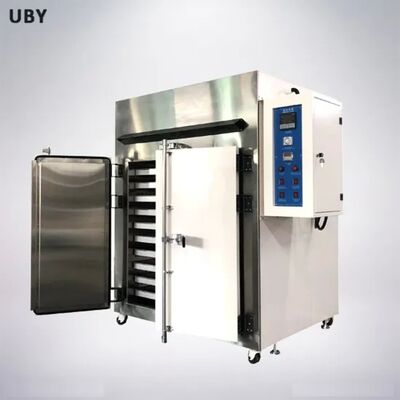

Customized Electric Hot Air Drying Industrial Oven with Precision Temperature Controller
This customized electric hot air drying industrial oven provides a stable testing environment for pre-heating, drying, and various physical and chemical testing applications. Equipped with a precision temperature controller and high-stability platinum resistance, it ensures excellent temperature distribution throughout the chamber.
Applications & Industries
Ideal for laboratories, manufacturing facilities, and research institutions requiring precise temperature control for material testing, product development, and quality control processes.
Technical Specifications
| Inner Size W×H×D (cm) |
External Size W×H×D (cm) |
Temperature Range (°C) |
Heating Time |
Accuracy (°C) |
Uniformity |
Power |
Working Power (kw) |
| 45×40×40 |
66×82×52 |
RT~100°C |
~10 min |
±0.3 |
±1% |
220V or 380V |
2.2 (A-D) |
| 50×50×50 |
69×100×64 |
A:200°C |
- |
±0.3 |
±1% |
- |
4.6 |
| 60×90×50 |
93×125×70 |
B:300°C |
- |
±0.3 |
±1% |
- |
5.5 |
| 100×100×60 |
133×165×80 |
C:400°C |
- |
±0.3 |
±1% |
- |
6 |
| 100×100×100 |
120×160×120 |
D:500°C |
- |
±0.3 |
±1% |
- |
8 |
Key Features
- Exterior: SECC steel with fine powder coating treatment
- Interior: SUS#304 stainless steel construction
- High temperature resistant long shaft motor with turbine fan
- Silicone forced tight sealing system
- Over temperature protection and super load automatic power system
- Air force level circulation system
- PID+S.S.R. heating system
- PID microcomputer control thermostat with automatic constant temperature and quick temperature compensation
- Timer function with power failure alarm indication
- Optional glass window available for customization
Our Service Commitment
Customer Inquiry Process
We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on your specific needs.
Customization Process
We create detailed drawings for customer confirmation, provide reference photos, and finalize the solution and pricing before production.
Production & Delivery
Production follows confirmed PO requirements with progress photos provided. Final inspection includes factory or third-party calibration as required, with confirmed shipping timelines.
Installation & Support
We provide field installation services and comprehensive after-sales support to ensure optimal performance.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include a 12-month warranty (extended to 14 months considering sea transportation). We provide free maintenance and technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangement priority.
Do you accept customization and OEM services?
Yes, we offer both standard and fully customized machines according to your specifications, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
