Home /Products/Environmental Test Chamber/UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber

UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber

1 Unit
MOQ
$599~$8999
Price
UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: High Temperature Ashing Furnace
Model NO.: UP-6196
Temperature Range: Rt ~1200ºC
Accuracy: ±2ºC
Temperature Uniformity: ±1.5%
Temperature Raising Speed: 60 Min To 1200±1.0ºC
Warranty: 1 Year
Custom Service: OEM, ODM
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Specification: Refer To The Actual Size Specifications
Highlight:

1200ºC Temperature Range Ashing Furnace

,

PID Temperature Control Environmental Test Chamber

,

Customizable Size High Temperature Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6196
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6196 Thermal Stability Environmental Test Chamber High Temperature Industry Ashing Furnace
High Temperature Ashing Furnace designed for aging tests of electronic components, plastic, rubber, and chemical products. Ideal for metal preheating, quenching, burning, stewing, annealing, and ashing tests with precise temperature control.
Quick Details
Alternative Name High Temperature Ashing Furnace
Function Aging tests for electronic components, plastic, rubber, chemical products; metal preheating, quenching, burning, stewing, annealing, and ashing tests
Feature Simulates weather influence on products; tests anti-aging performance against UV light
Weight Options 45kg, 55kg, 75kg
Volume Options 42×48×67cm; 47×48×72cm; 47×68×72cm
Product Description
High Temperature Ashing Furnace is primarily used for alloy steel products and various metal parts for tempering, high temperature reactions, and ashing tests. Suitable for special baking processes and aging tests of electronic components and plastic chemical products.
Key Features
  • Top-grade heating unit with extended service life
  • Imported PID thermometer for precise temperature control and simple operation
  • Rapid temperature raising and cooling capabilities
  • Over-temperature protective device and auto over-load power off system
  • Thermal radiation auto power off cyclic system
Technical Specifications
Model UP-6196-A UP-6196-B UP-6196-C
Working Space (W×D×H) 30×20×12cm 20×40×30cm 20×42×20cm
Temperature Range Normal temperature ~1200ºC
Heating Control S.S.R, PID
Accuracy ±2ºC
Temperature Uniformity ±1.5%
Temperature Raising Speed 60 min to 1200±1.0ºC
Material External chamber: SECC steel sheet with powder coating; Inside: ceramic plate
Volume (W×D×H) 42×48×67cm 47×48×72cm 47×68×72cm
Weight 45kg 55kg 75kg
Power AC380V, 4KW AC380V, 6KW AC380V, 6KW
Product Images

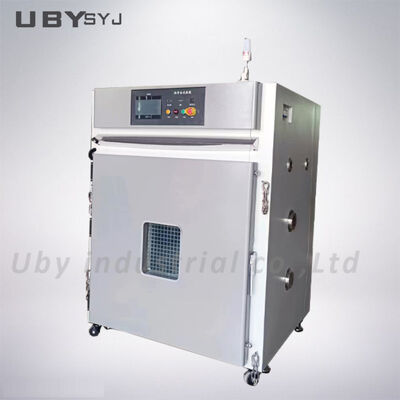

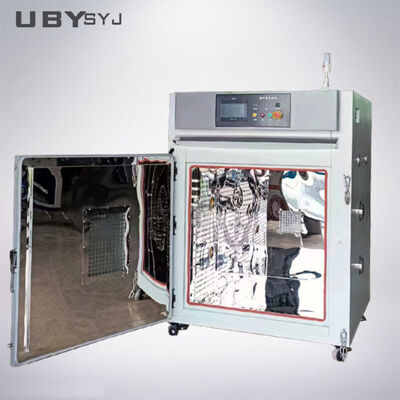

UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber 0 UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber 1 UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber 2 UP-6196 High Temperature Ashing Furnace with 1200ºC Range PID Control and Customizable Size Environmental Test Chamber 3
Our Service
We provide comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide competitive pricing
  • Customization: Create drawings and reference photos for customized requirements, confirm final solutions
  • Production & Delivery: Manufacture according to specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers and testing equipment. Every machine includes 12-month warranty with FREE maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
