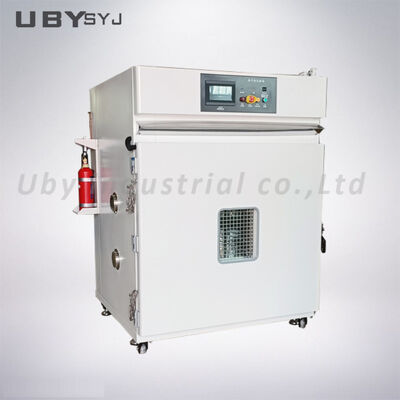

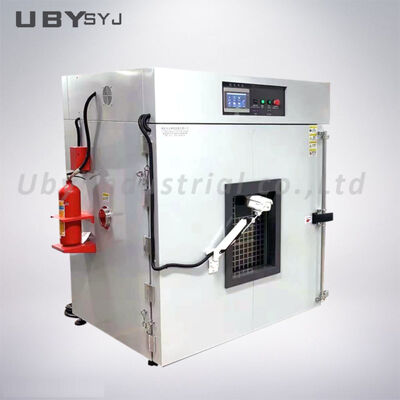

UP-6196 Large LCD Thermostatic Drying Oven with Cavity Preheating Technology
Advanced Cavity Preheating Technology
The advanced cavity preheating technology features heating elements evenly distributed around the inner chamber. This system preheats the cavity inner wall, then utilizes heat transfer and forced-fan convection to ensure every point in the chamber accurately achieves and maintains the set temperature value, guaranteeing uniform temperature distribution throughout the cavity.
This design provides uniform heat distribution with low energy consumption, minimizing heat loss and reducing operational costs for customers.
Technical Specifications
| Product Model |
UP-6196-40 |
UP-6196-70 |
UP-6196-130 |
| Convection Mode |
Forced Convection |
| Control System |
Microprocessor PID |
| Temperature Range (°C) |
RT+5°C~250°C |
| Temperature Accuracy (°C) |
0.1 |
| Temperature Fluctuation (°C) |
±0.5 (in the range of 50~240°C) |
| Temperature Uniformity |
2% (in the range of 50~240°C) |
| Timer Range |
0~99h, or 0~9999min (selectable) |
| Working Environment |
Ambient temperature: 10~30°C, Humidity <70% |
| Insulation Materials |
Imported environmental protection type material |
| External Dimensions (H×W×D) |
570×580×593mm |
670×680×593mm |
770×780×693mm |
| Internal Dimensions (H×W×T) |
350×350×350mm |
450×450×350mm |
550×550×450mm |
| Interior Volume (L) |
40 |
70 |
130 |
| Interior Steel Materials |
SUS304 stainless steel inner |
| Number of Standard Trays |
2 |
| Power (W) |
770 |
970 |
1270 |
| Supply Voltage |
220V/50Hz |
| Net Weight (KG) |
40 |
48 |
65 |
| Shipping Weight (KG) |
43 |
51 |
69 |
| Packing Size (H×W×D) |
690×660×680mm |
790×760×680mm |
890×860×780mm |
Key Features
- Cavity preheating technology with air duct forced convection system
- Microcomputer control system with advanced insulation technology
- Intelligent numerical display with uniform temperature distribution
- Widely used in drying, sterilization, heated storage, heat treatment, and other applications
- Essential equipment for laboratories and research facilities
- Provides constant temperature with thermal insulation to ensure smooth experiment progression and sample culture
Ergonomic Design
Classic laboratory color design with international fashion styling and arc-shaped contours for optimal operational comfort.
Integrated design featuring an external handle and LCD screen with ergonomic structure and comfortable viewing angle, providing convenient door operation and interface control.
Adjustable mesh shelf intervals and quantities to meet customer requirements with maximum capacity.
Comfortable vertical structure maximizes workspace with upper working chamber for easy access.
Double door design enables easy sample observation while maintaining temperature stability, featuring bell-type lighting system.
Modern Manufacturing Processes
Sheet metal components utilize laser cutting and CNC bending technology. Cold-rolled sheets employ three-line acidification anti-rust technology. Incubator surfaces feature professional plastic spraying workmanship.
Our Service Process
Customer Inquiry Process
- Discussion of testing requirements and technical details
- Recommendation of suitable products for customer confirmation
- Quotation of most appropriate pricing based on customer requirements
Specifications Customization Process
- Creation of related drawings for customized requirement confirmation
- Provision of reference photos to show product appearance
- Final solution confirmation and pricing agreement
Production and Delivery Process
- Manufacturing according to confirmed purchase order requirements
- Production process photos provided to customer
- Final product photos for customer confirmation
- Factory calibration or third-party calibration as required
- Comprehensive testing and packing
- Timely delivery with customer notification
Installation and After-Sales Service
Professional field installation and comprehensive after-sales support services.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.
If your machine experiences issues, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Solutions are typically provided within 24 to 48 hours after problem confirmation.
What about the delivery term?
For standard machines in stock: 3-7 working days
For non-stock items: 15-20 working days after payment receipt
Special arrangements available for urgent requirements
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placement of your logo on the equipment.
How can I install and use the machine?
Upon ordering, we provide English operation manuals or videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
