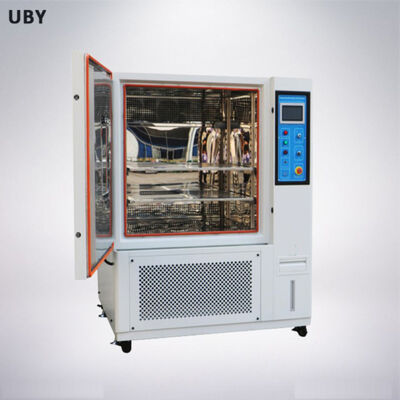

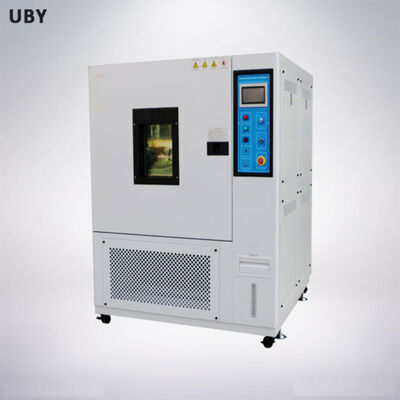

UP-6195 Stackable Temperature Humidity Test Chamber with Microprocessor PID
This advanced stackable temperature humidity test chamber features microprocessor PID control for precise environmental simulation. Designed for testing material performance under various conditions including heat, dry, humidity, and cold exposure.
Applications
Simulates diverse environmental conditions to test material performance characteristics including heat resistance, dry resistance, humidity resistance, and cold resistance for comprehensive material performance evaluation.
Design Standards Compliance
GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Technical Specifications
| Parameter |
100L |
150L |
225L |
408L |
800L |
1000L |
| Inner Box Size (W×D×H mm) |
400×400×500 |
500×500×600 |
600×500×750 |
800×600×850 |
1000×800×1000 |
1000×1000×1000 |
| Carton Size (W×D×H mm) |
680×1550×1450 |
700×1650×1650 |
800×1650×1750 |
1000×1700×1870 |
1200×1850×2120 |
1200×2050×2120 |
| Heating Time to 150°C (min) |
35 |
40 |
40 |
40 |
45 |
45 |
| Cooling Time to -40°C (min) |
60 |
60 |
60 |
60 |
60 |
60 |
| Cooling Time to -70°C (min) |
100 |
100 |
100 |
100 |
100 |
100 |
| Power (kW) |
5.5 |
6.5 |
6 |
6.5 |
7.5 |
8 |
| Weight (kg) |
200 |
250 |
300 |
400 |
600 |
700 |
Performance Range
Temperature Range: -70°C/-40°C to +150°C
Humidity Range: 20%RH to 98%RH
Temperature Uniformity: ±2°C
Humidity Uniformity: ±3%RH
Construction Materials
- Inner Box: #304 2B stainless steel plate, 1.0mm thickness
- Outer Box: Electrostatic spraying cold rolled painted steel plate, 1.2mm thickness
- Insulation: Rigid foam and glass wool
- Heater: Nichrome heating wire heater
- Humidifier: Stainless steel sheathed humidifier
System Components
- Air Circulation: Centrifugal fan with wide-band forced air circulation (push-out and push-down)
- Refrigeration: Air-cooled, single-stage or cascade refrigeration
- Compressors: French Taikang fully hermetic or American Emerson compressor
- Refrigerants: R404A, R23A
- Water Supply: Water pump lifting system
Standard Accessories
Test hole cover (medium 50), 1 partition, 2 gauze, 3 pieces total
Safety Protection Systems

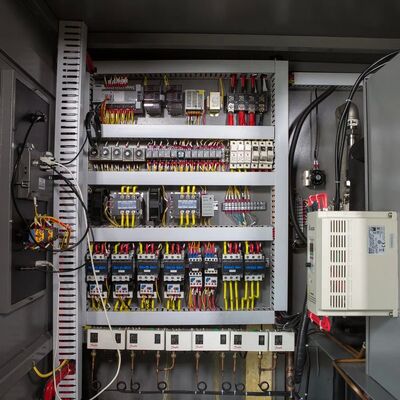

Pressure relief port, explosion-proof door lock, non-bass switch, protective wire, over temperature protection, anti-dry burning protection, water shortage protection, compressor overpressure protection, overheating protection, overcurrent protection, emergency shutdown and other comprehensive protection devices.
Power Requirements
13W AC220V±10% 50/60Hz | 5W AC380/415V±10% 50/60Hz
Our Comprehensive Service Process
Customer Inquiry Process
Technical consultation to discuss testing requirements, product recommendations based on specific needs, and competitive pricing quotation.
Customization Process
Engineering drawings and reference photos provided for custom requirements confirmation, final solution development, and pricing agreement.
Production and Delivery
Manufacturing according to confirmed specifications, production progress updates with photos, final product confirmation, factory or third-party calibration, comprehensive testing, and timely shipping arrangements.
Installation and After-Sales Support
Professional field installation services and comprehensive after-sales technical support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend to 14 months for international customers. For technical issues, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.
What is the delivery timeline?
Standard machines in stock: 3-7 working days
Custom orders: 15-20 working days after payment
Expedited production available for urgent requirements
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and fully customized machines according to your specifications. We provide OEM and ODM services including custom branding with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and instructional videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when required.
