Name: UP-2003 High Precision Universal Tensile Tester Machine Durable Tensile Strength Testing Machine
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UPP-2003
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Tensile Strength Testing Machine

Model NO.: UP-2003

Accuracy Grade: 0.5

Power Source: AC110-220V

Speed Accuracy: ±0.5%

Displacement Resolution: 0.001mm

Load Accuracy: ±0.25%

Stroke (Exclude The Grips): 650mm, 800mm (Optional)

Effective Width: 400mm, 600mm (Optional)

Power: 1PH, AC220V, 50/60Hz

Highlight:

High Precision Universal Tensile Tester

Universal Tensile Tester Machine

Durable Tensile Strength Testing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UPP-2003

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

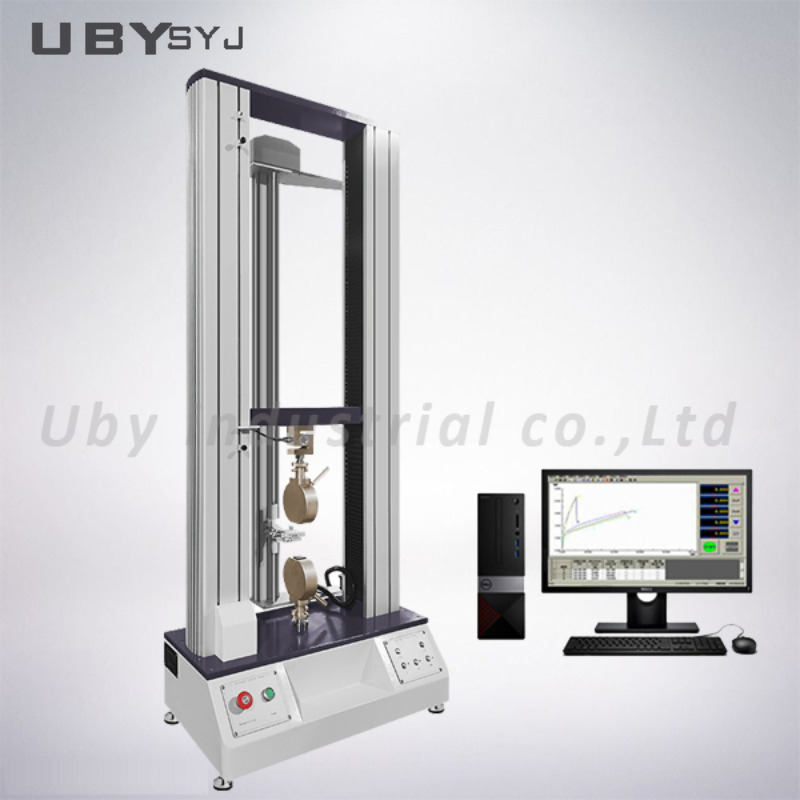

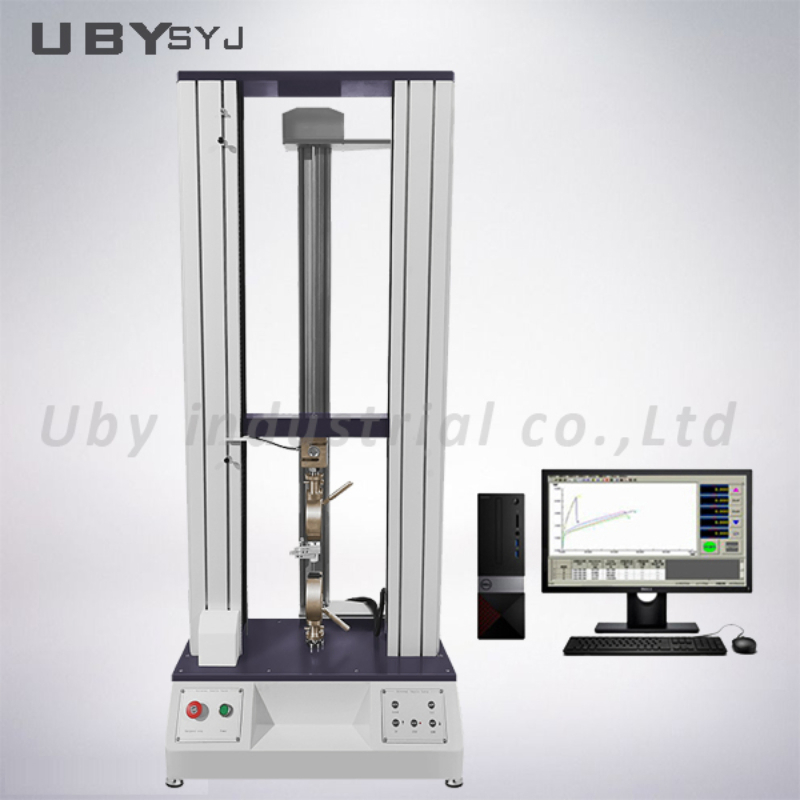

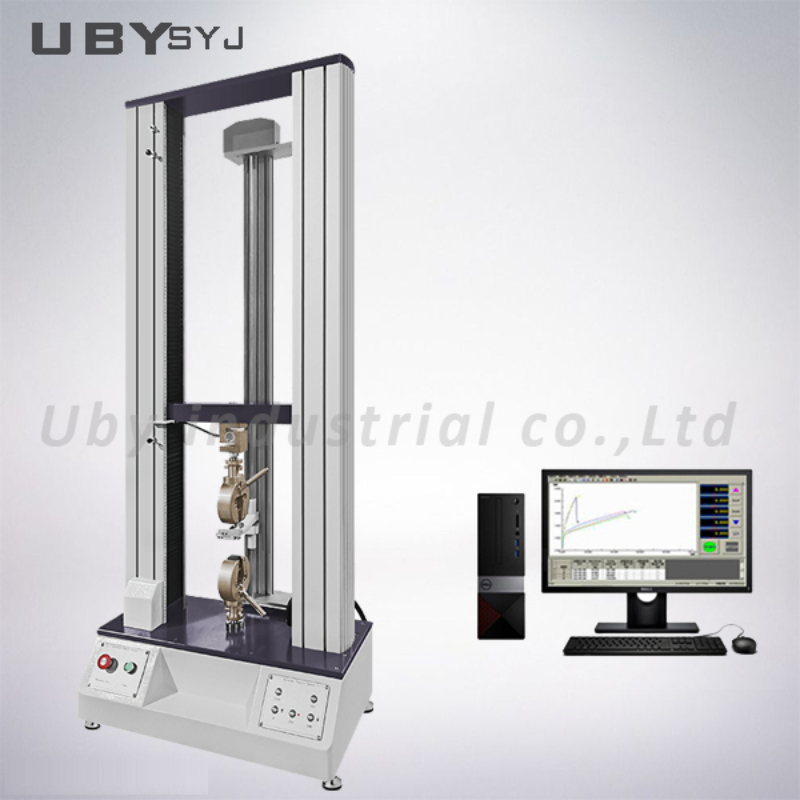

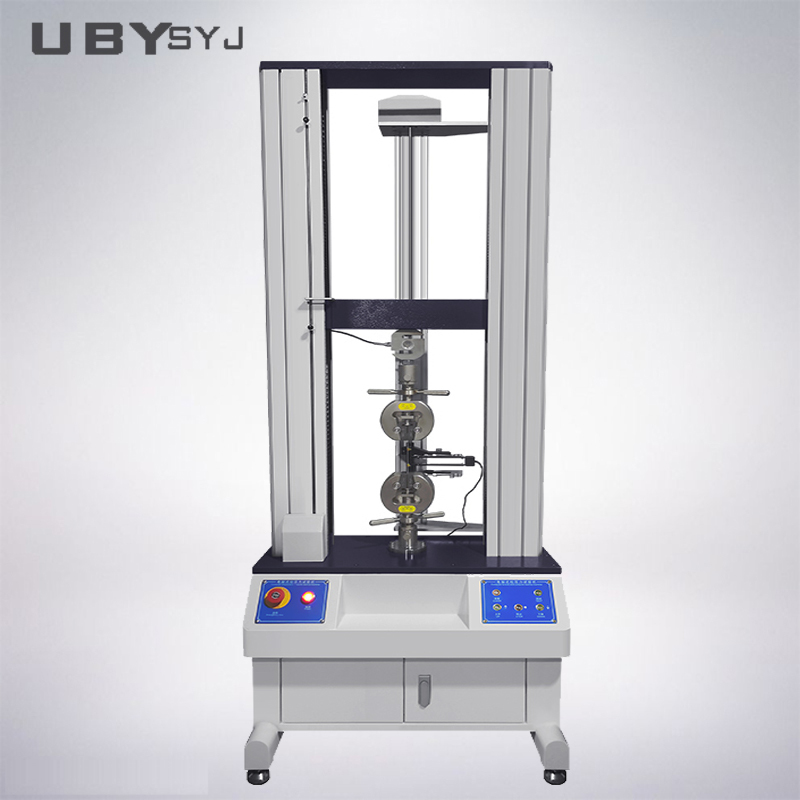

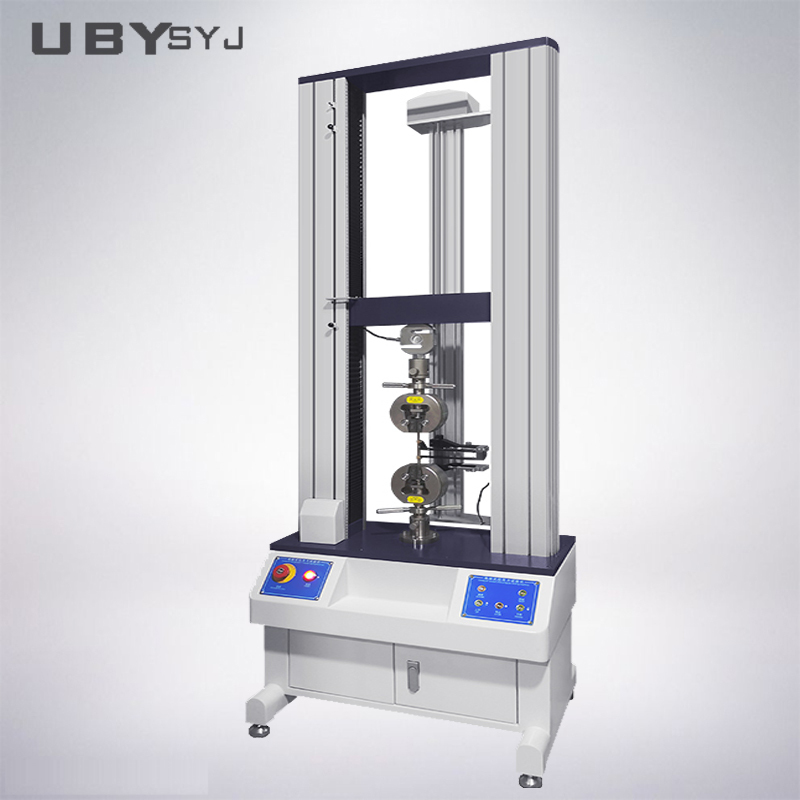

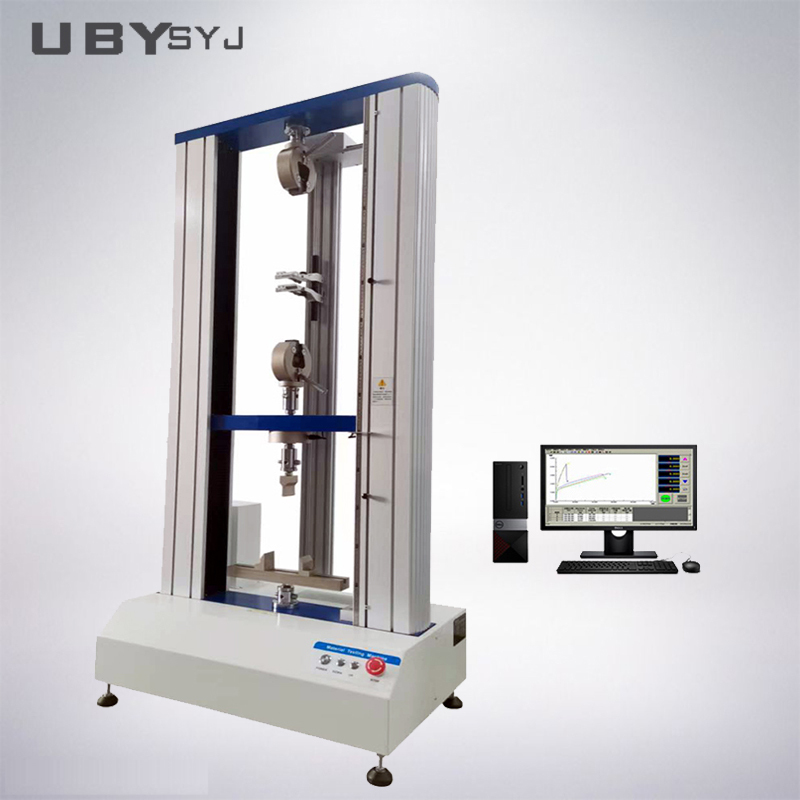

UP-2003 High Precision Universal Tensile Tester Machine Durable Tensile Strength Testing Machine

Product Description

UP-2003 High-Precision Universal Tensile Tester

Product Overview

The UP-2003 testing machine features a newly designed microcomputer-type top pressure meter. This advanced instrument completely transforms traditional material test machines by eliminating heavy construction, complex operation, and single performance limitations. The structure utilizes high-grade baked paint processing with aluminum extrusion sealed boards, built-in high precision, low resistance, and zero-clearance roll strain screw rods with oriented columns. The control system offers high-speed data acquisition and operation, employing a double column and double screw rod structure that significantly increases testing capacity up to 20,000N maximum.

Technical Specifications

Design Standards	GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986 GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412
Model	UP-2003
Range of Speed	50-400mm/min
Motor	AV Servo Motor
Capacity Options	5, 10, 20, 50, 100, 200, 500KG optional
Resolution	1/150,000
Effective Testing Space	400mm MAX
Accuracy	±0.5%
Operation Method	Windows XP, Win7 operation, computer control
Standard Accessories	Computer, printer, system operation manual
Optional Accessories	Customized clamps by appointment, force sensors, printer, operation manual
Weight	400KG
Dimensions (W×D×H)	80×50×150CM
Power	1PH, AC220V, 50/60Hz
Stroke Protection	Upper and lower protection, prevent over preset
Force Protection	System setting
Emergency Stop Device	Handling emergencies

Applications

This materials testing machine is applicable for testing tensile, compression, bending, peel, shearing force, peeling force, modulus of elasticity, and elongation of materials, components, and finished products for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, packaging, tape, film, solar cell, and various other materials.

Product Images

Our Service Process

Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
Production and Delivery: Manufacture according to confirmed PO requirements, provide production photos, conduct calibration, and arrange shipping
Installation and After-Sales: Provide field installation and ongoing after-sales support

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals or videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
