Name: Digital Display Tensile Compression Tester Machine For BOPP Film Materials
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-2003
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-2003

Max Diameter Of Workpiece: 500 Or Above

Mass Scope Of Workpiece: <900kg

Type: Universal Testing Machine

Maxcapacity: 20-100000kN

Accuracy Grade: 0.5

Load Way: Electronic Load

Loading Method: Static Load

Display: Digital

Control: Computer Control

Weight: 100-500Kg

Power Source: AC110-220V

Oil Cylinder Position: Under

Additional Service: Support Customer Customization.

Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob

Resolution: 1/150000

Range Of Speed: 50~400mm/Min

Effective Testing Space: 400mm Max

Accuracy: ±0.5%

Product Name: Universal Testing Machine

Highlight:

Digital Display Tensile Compression Tester

Tensile Compression Tester Machine

BOPP Film Materials Testing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-2003

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

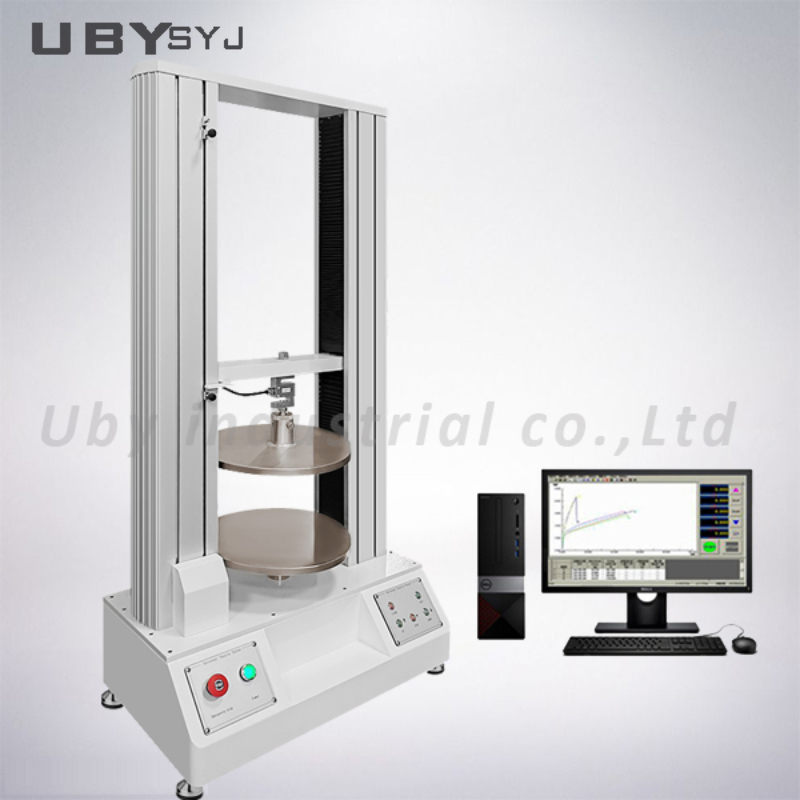

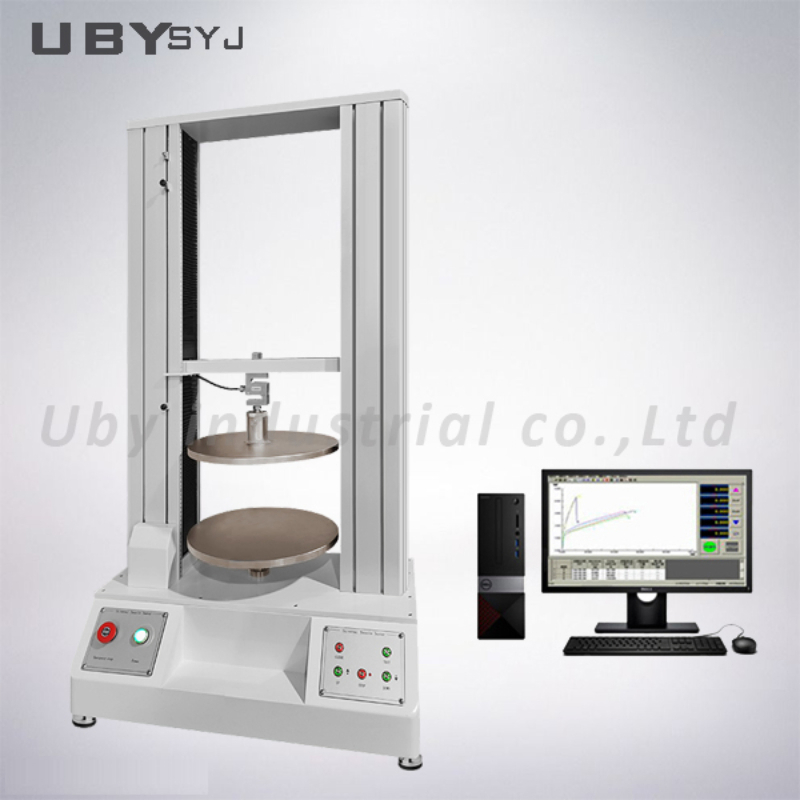

Digital Display Tensile Compression Tester Machine For BOPP Film Materials

Product Description

Steady Performance Digital Tensile Compression Tester For BOPP Film Materials

Product Overview

This materials testing machine is designed for comprehensive testing of tensile, compression, bending, peel, shearing force, peeling force, modulus of elasticity, and elongation properties across various materials including metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, packaging, tape, film, and solar cells.

Key Features

Microcomputer-type top pressure meter with advanced design
Double column and double screw rod structure for enhanced test force capacity (up to 20,000N)
High-precision, low-resistance, zero-clearance roll strain screw rod and oriented column
Senior roast paint processed aluminum squeeze type seal board construction
High-speed data acquisition and operation control system
Stable, reliable performance with high precision and simple operation

Technical Specifications

Model	UP-2003
Range of Speed	50-400mm/min
Motor	AV Servo Motor
Capacity Choice	5, 10, 20, 50, 100, 200, 500KG optional
Resolution	1/150,000
Effective Testing Space	400mm MAX
Accuracy	±0.5%
Operation Method	Windows XP, Win7 operation, computer control
Power	1PH, AC220V, 50/60Hz
Weight	400KG
Dimensions (W×D×H)	80×50×150CM

Safety Features

Upper and lower stroke protection to prevent over preset
System force protection settings
Emergency stop device for handling emergencies

Standard Accessories

Computer
Printer
System operation manual

Optional Accessories

Customized clamps by appointment
Additional force sensors
Additional printers
Additional operation manuals

Product Gallery

Our Service Process

Customer Inquiry Process

Discussion of testing requirements and technical details, product recommendations, and quotation based on customer specifications.

Specifications Customization Process

Creation of technical drawings, reference photos for product appearance, and confirmation of final solution and pricing.

Production and Delivery Process

Manufacturing according to confirmed requirements, production progress photos, factory or third-party calibration, quality testing, and timely delivery coordination.

Installation and After-Sales Service

On-site installation support and comprehensive after-sales service provision.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for our customers.

For technical support, contact us via email or phone. We will diagnose issues through conversation or video chat and provide solutions within 24 to 48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days

Out of stock items: 15-20 working days after payment

Urgent requirements receive special arrangement priority

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom logo application on machines.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
