Standard Compliant Digital Tensile Strength Tester Machine With Automatic Data Capture

1 Unit
MOQ
Negotiable
Price
Standard Compliant Digital Tensile Strength Tester Machine With Automatic Data Capture
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Digital Tensile Strength Tester
Model NO.: UP-2000
Test Range: 320mm Max
Test Speed: 50~500mm/Min(Control By Keyboard Inputting
Maxcapacity: 20-100000kN
Resolution: 1/150,000
Stroke: 800mm(Not Including Fixture)
Sample Width: 27mm (optional Width Available)
Highlight:

Standard Compliant Digital Tensile Strength Tester

,

Digital Tensile Strength Tester Machine

,

Standard Compliant Digital Tensile Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2000
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Standard-Compliant Digital Tensile Strength Tester with Automatic Data Capture
Product Overview

Tensile Strength Tester is an advanced digital testing instrument designed to evaluate the physical properties of BOPP films and various materials used in packaging and other applications. This versatile tensile strength tester measures a wide range of performance attributes, including tensile strength, peeling, deformation, tearing, heat sealing, adhesive properties, puncture force, and opening force. It is ideal for laboratories and industries involved in packaging, food, medicine, and beverages.

Standards Compliance

ISO 37, ASTM D882, STM E4, ASTM F904, ASTM D1938, JIS P8113

Technical Specifications
Test Range 0-500N (or 50N, 100N, 200N, etc)
Stroke 800mm (customizable for other strokes)
Test Speed 1~500mm/min
Displacement Accuracy 0.01mm
Accuracy 0.5% Full Scale
Sample Width 27mm (optional width available)
Control PLC and HMI Screen
Data Output Microprinter (optional), RS232 (optional)

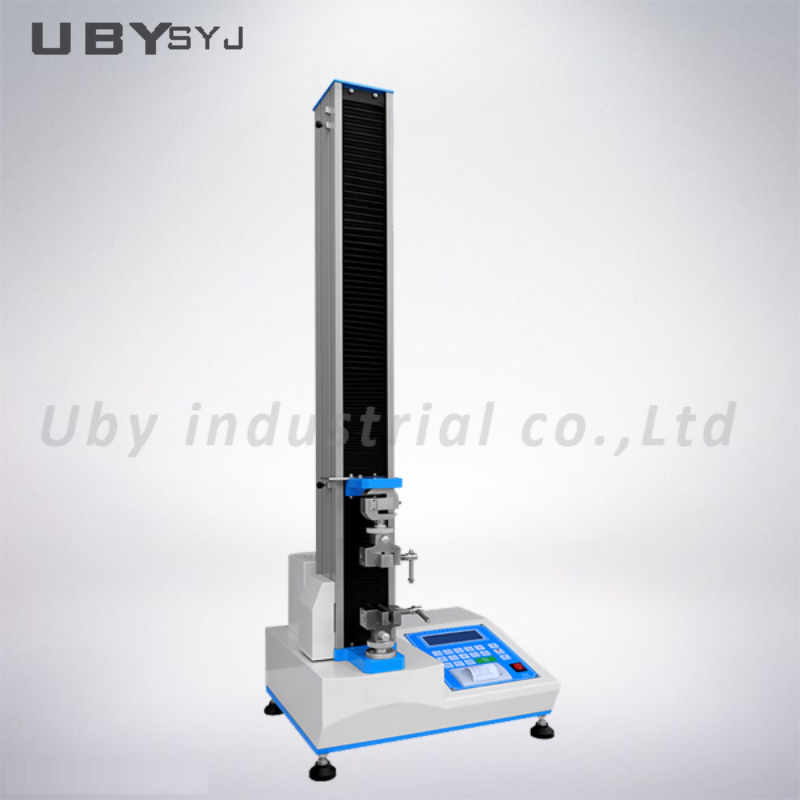

Product Images
Standard Compliant Digital Tensile Strength Tester Machine With Automatic Data Capture 0 Standard Compliant Digital Tensile Strength Tester Machine With Automatic Data Capture 1
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
