Home /Products/Abrasion Testing Machine/UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing

UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing

1
MOQ
299
Price
UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Model NO.: UP-1001
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Rubber,Auto,Leather,Cloth,Fabric...etc
Transport Package: Professional Export Packing
Specification: Refer To The Actual Size Specifications
Trademark: None
Origin: China
HS Code: 9024800000
Production Capacity: 20 Unit/Month
Basic Infomation
Payment & Shipping Terms
Product Description

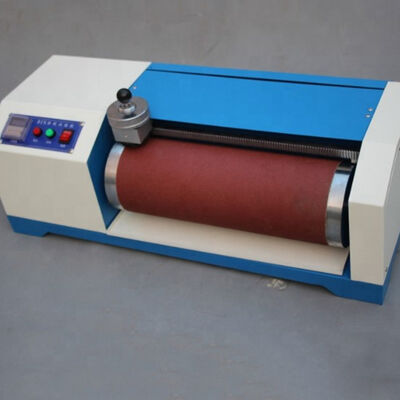

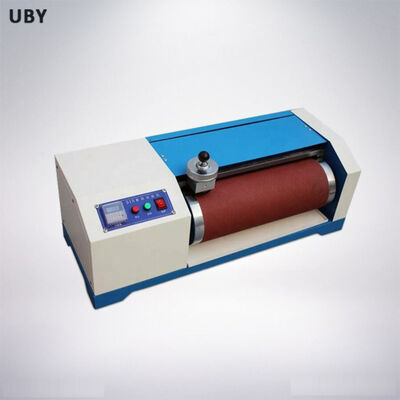

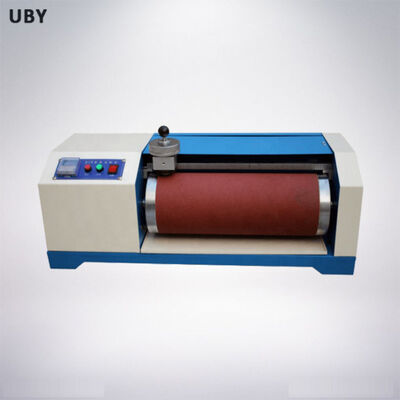

UP-1001 DIN Rubber Abrasion Tester with 150mm Wheel Diameter for Material Wear Testing

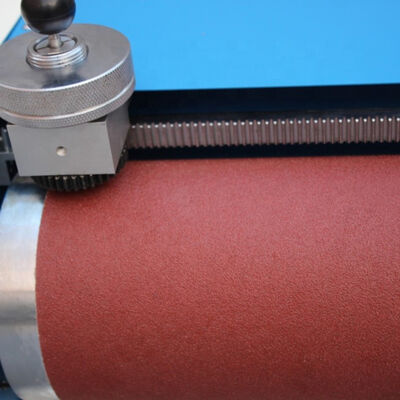

The UP-1001 DIN Rubber Abrasion Tester is designed for measuring abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that experience abrasive/frictional wear in actual service. The equipment evaluates abrasion resistance by moving a test piece across an abrasive sheet mounted on a revolving drum, with results expressed as volume loss in mm³ or abrasion resistance index in percentage. Lower volume loss indicates better abrasion resistance, while a lower abrasion resistance index denotes poorer performance.
Technical Specifications
Parameter Specification
Sample Diameter of 16mm, thickness of 6~15mm
Fixture Load 2.5N
Weight Load 2.5N, 5N
Fixture Lateral Moving Distance 4.2mm/circle
Diameter of the Cylinder (150±0.2)mm
Length of the Cylinder 460mm
Rotation Speed of the Cylinder 40rpm
Distance Reservation 40m/20m (equals 84 circles/42 circles)
Abrasion Speed 0.32m/sec
Incline Angle 3° (angle between sample support axle and vertical plane of cylinder)
Weight 65kg
Power 1∮, AC220V, 3A
UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing 0 UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing 1 UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing 2 UP-1001 DIN Standard Rubber Abrasion Tester with 150mm Wheel Diameter and 40rpm Rotation Speed for Material Wear Testing 3
Our Service Process
Consultative Selling Approach
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create technical drawings for custom requirements, provide reference photos, and finalize solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure proper packaging
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to your specifications. OEM and ODM services are available, including custom branding and logos.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
