Home /Products/Packaging Testing Equipment/Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions

Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions

1
MOQ
Negotiable
Price
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6035
Max Diameter Of Workpiece: 500 Or Above
Mass Scope Of Workpiece: <900kg
Type: Universal Testing Machine
Maxcapacity: 20-100000kN
Accuracy Grade: 0.5
Load Way: Electronic Load
Loading Method: Static Load
Display: Digital
Control: Computer Control
Weight: 100-500Kg
Power Source: AC110-220V
Oil Cylinder Position: Under
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob
Transport Package: Professional Export Wooden Carton Packaging
Specification: About 1CBM
Trademark: None
Origin: China
Production Capacity: 100 Unit/Month
Highlight:

plastic pallet compression tester

,

digital display strength tester

,

customizable packaging testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-6035 Plastic Pallet Strength Compression Tester for Testing Performance of Robust and Durable
Product Overview

The Plastic Pallet Strength Compression Tester is a professional testing machine used to evaluate the compressive performance of cardboard boxes, suitable for pressure resistance, deformation, and stacking tests of corrugated cardboard boxes, honeycomb board boxes, and other packaging. It also accommodates compression testing of containers such as plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, and IBC drums.

Test Standards
  • GB/T 4857.4 pressure test method for packing and transporting packing parts
  • GB/T 4857.3 test method for the static load stacking of packaging transportation packaging
  • ISO 2872 packaging - complete and fully loaded transport package - pressure test
  • ISO 2874 packaging - a complete and full packing package - stacking test by pressure tester
  • QB/T 1048 cardboard and compressive strength tester
Technical Specifications
Accuracy ±1%
Measurement range (50~10000)N
Measurement size (600*800*800) other dimensions can be customized
Resolution 0.1N
Error of deformation ± 1mm
Pressure plate parallelism less than 1mm
Test speed (10± 3) mm/min (stack: 5 ± 1mm/min)
Return speed 100mm/min
Unit interchange N/Lbf/KGF interchange
Man-machine interface 3.5in liquid crystal display, the belt curve shows the change process
Printer module type thermal printer
Working conditions temperature (20 ± 10 ° C), humidity < 85%
Appearance size 1050*800*1280mm

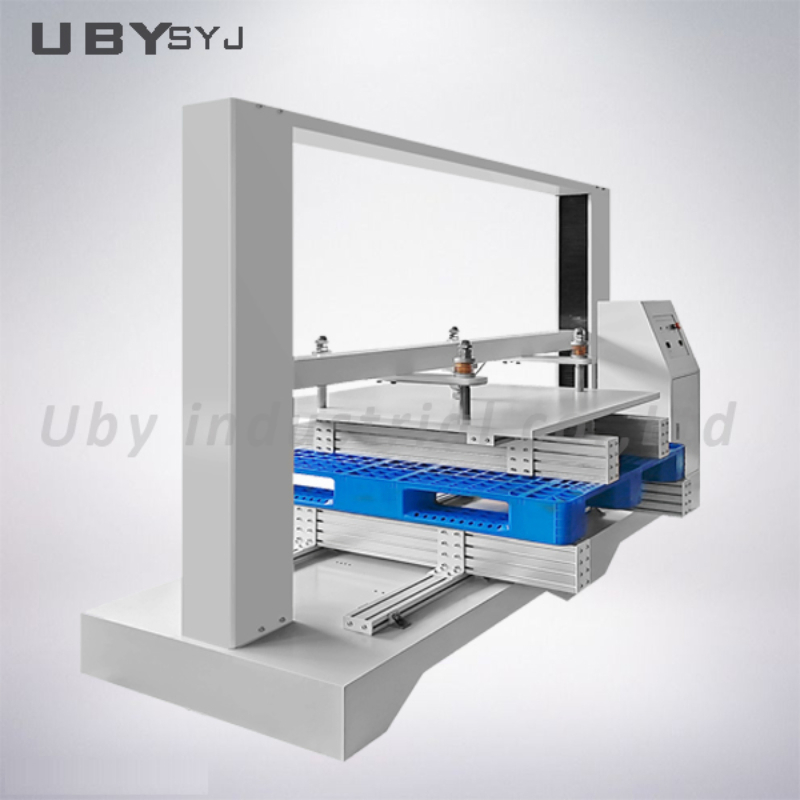

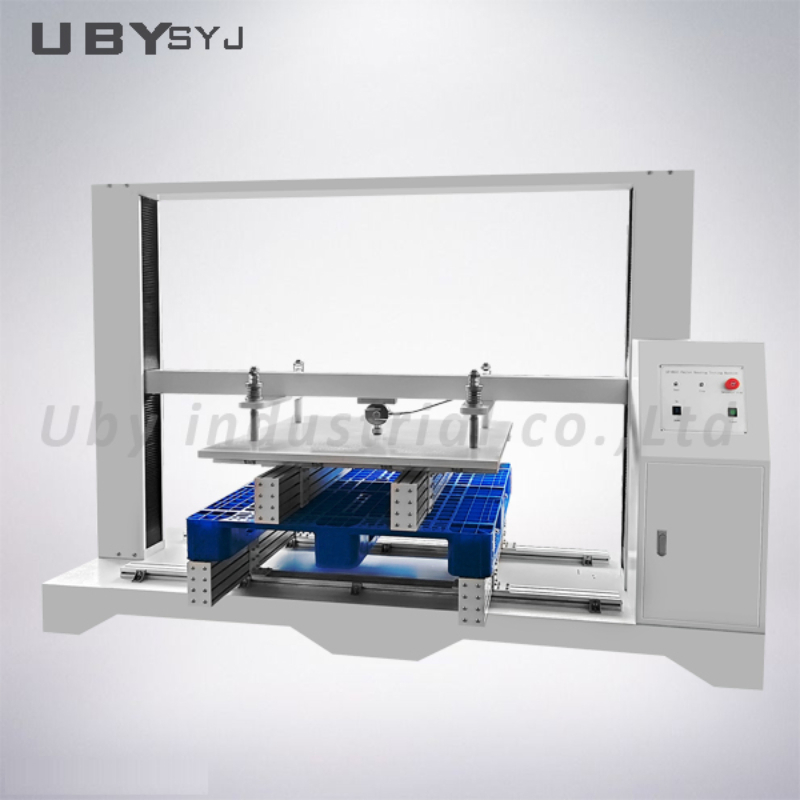

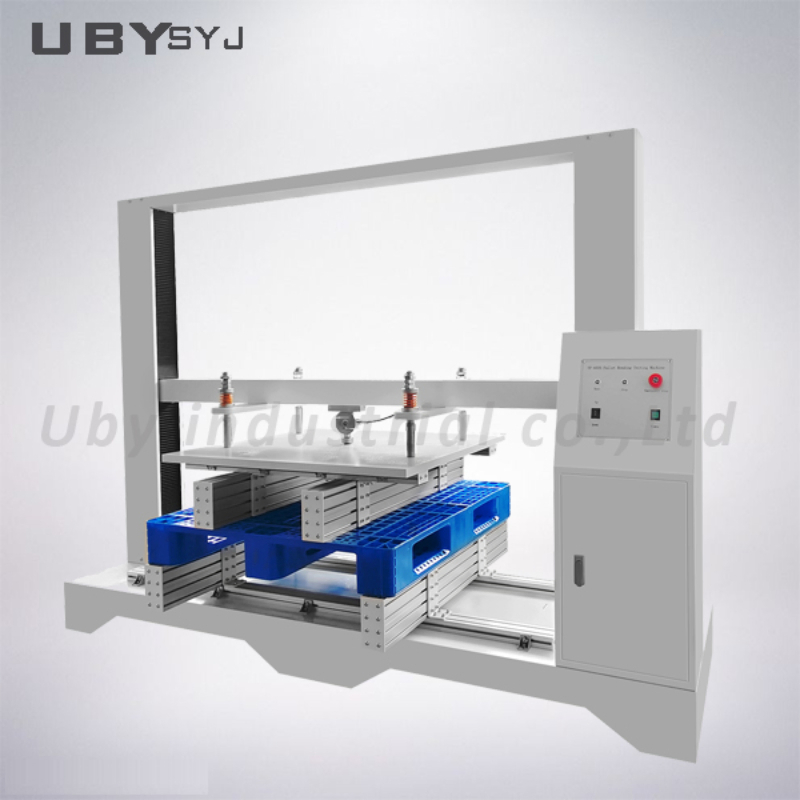

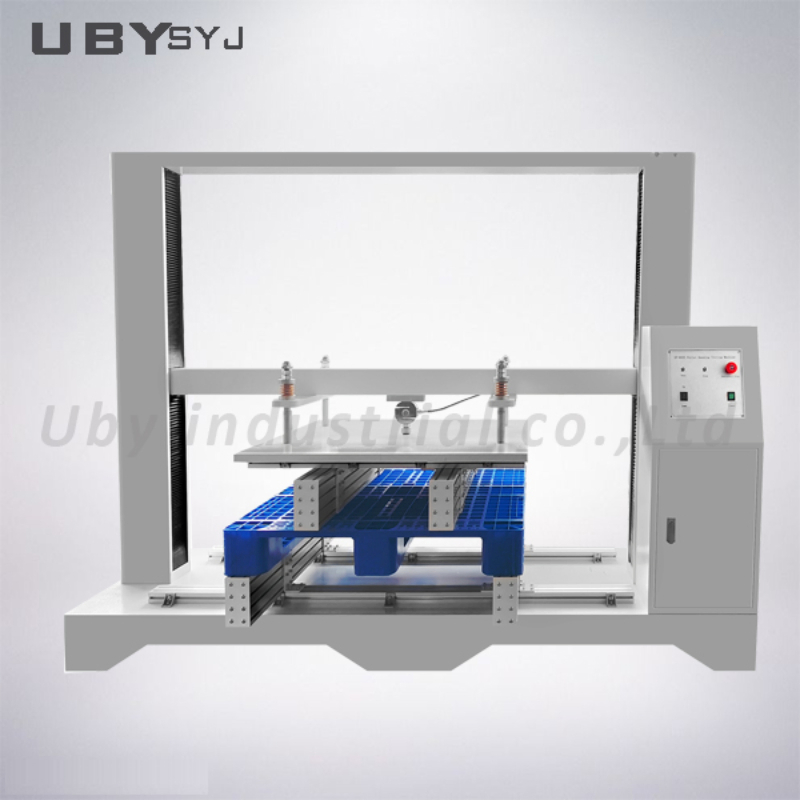

Product Images
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 0 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 1 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 2 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 3 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 4 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 5 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 6 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 7 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 8 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 9 Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Customizable Dimensions 10
Our Service Process
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  • Specifications Customize Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely delivery.
  • Installation and After-Sale Service: Provide field installation support and comprehensive after-sales service.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

4. How can I install and use the machine?

We provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and start using. If necessary, we can assist with on-site installation.
