Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Product Name: | Flammability Testing Equipment |
|---|---|---|---|
| Smoke Density Measurement Range: | 0 ~ 100% | Combustion Box Dimension: | L300*W300*H790(mm) |
| Equipment Overall Dimensions: | (800 * 500 * 500) Mm | Weight: | 35 Kg |
| High Light: | flammability test,laboratory testing machines |
||

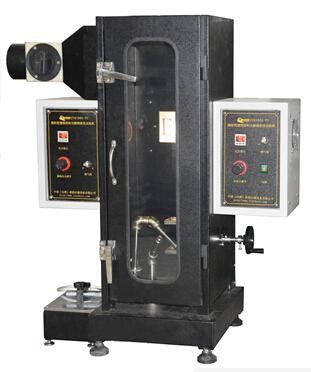

ASTM D 2843 Micro-computer Plastic Burning or Decomposition Smoke Density Testing Equipment
Description:
The test apparatus is used for measuring the somke-producing characteristic of plastics under controlled condition of combustion or decomposition, and also can be used for other building materials.
Standards:
ASTM D 2843,DIN 4102,GB/T 8627
Specification:
1. Gas source: 95% propane gas or higher purity, or the same purity of gas(owned);
2. Photometric system: a light source for the light bulb 15 w, working voltage of 6 v.
3. Smoke density measurement range: 0 ~ 100%;
4. Smoke density measurement accuracy: ±3%;
5. Receive the lens focal length: 60 ~ 65 mm;
6. Main burner work pressure: 276 kpa (adjustable);
7. Auxiliary combustion chamber pressure: 138 kpa (adjustable);
8. Supply voltage: AC220V±10%,50Hz;
9. Using power: 0.5 KW.
10. Combustion box dimension: L300*W300*H790(mm);
11. Equipment overall dimensions: (800 * 500 * 500) mm;
12. Combustion box adopts 304 steel plate, thickness of 1.2 MM;
13. Weight: 35 Kg.
