Product Details:
Payment & Shipping Terms:
|
| Test Speed: | 5kw/h±0.1kw/h (adjustable) | Weight: | About 400kg |
|---|---|---|---|
| Dimension: | 2100x1260x2000mm | Power: | AC380V*3 Diameter*2KW |
| Effective Width: | Max1000mm | Up And Down Adjustment: | Max300mm |
| High Light: | Lab Test Equipment,Professional Test Equipment |
||

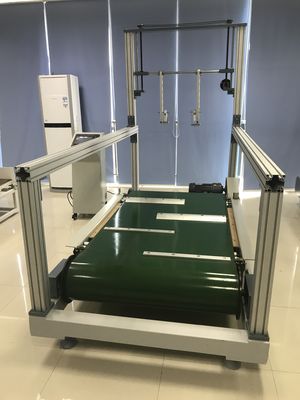

Professional LCD Digital Display Dynamic Durability Strollers Testing Machine
Descriptions:
This machine is designed according to CNS baby-car dynamic abrasion durability test regulations.
Method: place a baby mode in the car, and fix the car on the test table, adjust the speed of
the conveyor belt to 1.4±0.1m/sec. Check whether the car is damaged, after keeping it for 64 hours. When reaching the setting times, it will stop automatically. It is assembled with light sensor, which can prevent damage of the machine when the baby-car is out of control.
It used to test the dynamic durability of wheel and the whole car when simulate the moving
on the road.
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Specifications:
| test specification | designed and manufactured according to standards AS/NZS2088:2000? ASTM-F833 and CNS 6263-11,BSL-1996,EN1888 |
| experiment work | single-seater body(front and rear) |
| test speed | 5kw/h±0.1kw/h (adjustable) |
| drive mode | roller wheel drives the rubber conveyor belt for moving and the driven by special aluminum alloy conveyor belt |
| drive horsepower | AC380V*3diameter*3HP |
| up and down adjustment | max300mm |
| effective width | max1000mm |
| test count | LCD digital display with six digits |
| bearing load | max50 pounds |
| power | AC380V*3 diameter*2KW |
| dimension | 2100x1260x2000mm |
| weight | about 400kg |
| shape of impact block | trapezium, half arc or specified |
