Tensile Tester for Adhesive Tape Protective Film Laminated Composite Film UP-2000 500N Capacity with 180° Peel Fixture and Touch Screen Control

1
MOQ
Negotiable
Price
Tensile Tester for Adhesive Tape Protective Film Laminated Composite Film UP-2000 500N Capacity with 180° Peel Fixture and Touch Screen Control
Features Gallery Product Description Chat Now
Features
Specifications
Capacity: 500 N Standard; 50/100/200 N Optional
Force Accuracy: ±0.5% Of Reading, Class 0.5
Force Resolution: 1/50000 Full-scale
Test Speed Range: 0.1–500 Mm/min Stepless Adjustable
Effective Stroke: 800 Mm
Effective Test Width: 150 Mm
Data Sampling Rate: 200 Times/sec
Displacement Resolution: 0.01 Mm
Dimensions (L×W×H): 420×420×1350 Mm
Net Weight: Approx. 40 Kg
Highlight:

180° Peel Fixture Tensile Tester

,

Touch Screen Control Tensile Tester

,

500N Capacity Peel Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union,paypal
Supply Ability: 20 Unit/month
Product Description
Product Overview

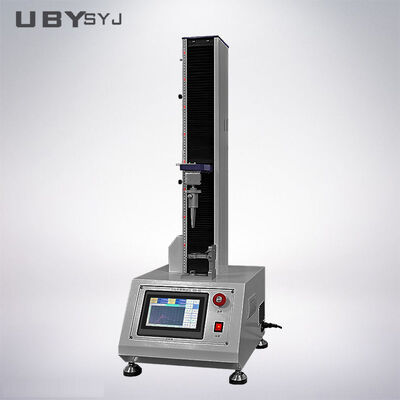

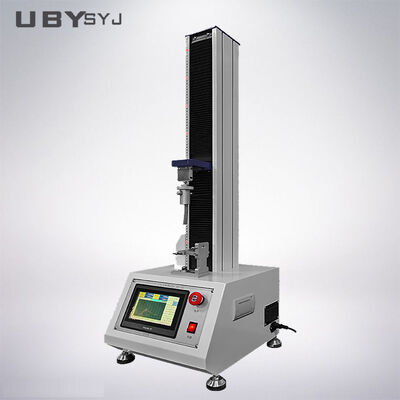

A 500N single-column touch-screen tensile tester equipped with a 180° peel fixture, purpose-built for peel and tensile testing of adhesive tape, protective film and laminated composite film. Optional small-force load cells are available; the system complies with ASTM D3330 and ASTM D882.

Single-column touch-screen tensile tester with 180-degree peel fixture for adhesive tape, protective film and composite film peel and tensile testing

This benchtop laboratory instrument is specially developed for adhesive tape, protective film and laminated composite film. It primarily performs peel strength tests and film tensile elongation tests.

The machine comes standard with a 180° peel test fixture, widely used for evaluating adhesive bonding performance. For ultra-thin and low-force samples, optional small-capacity load cells (50N / 100N / 200N) are recommended to improve data stability. The system is controlled via a color touch screen with Class 0.5 high-precision measurement. A 200Hz high-speed sampling rate captures real-time force fluctuations during the peeling process.

Test results — including peel strength, maximum force and elongation — can be printed via an optional thermal printer or exported through the RS232 port. Switch to wedge grips or pneumatic parallel grips to perform pure tensile tests in accordance with ASTM D882.

ASTM D3330 ASTM D882 ASTM E4 Class 0.5 Accuracy 200Hz Sampling
Technical Specifications
Model UP-2000
Structure Single-column, table-top benchtop frame
Capacity 500N standard; 50N / 100N / 200N optional
(Small-force sensor recommended for thin film and tape; for high-strength thick composite film, please select a higher capacity)
Force Measuring Range 5%–100% FS (hardware readable range; formal lab test recommended: 20%–80% FS, compliant with ASTM E4)
Force Accuracy ±0.5% of reading, Class 0.5 (meets ASTM E4)
Force Resolution 1 / 50,000 full-scale
Displacement Resolution 0.01mm
Test Speed Range 0.1–500mm/min stepless adjustable
Effective Stroke 800mm (including grips, suitable for long-stroke peel and elongation tests)
Effective Test Width 150mm
Data Sampling Rate 200 times/sec (high sampling rate for capturing sharp peel force fluctuations)
Drive System Stepper motor + driver + precision pre-loaded ball screw
Control & Display Color HMI touch screen
Force Units N, kN, kgf, gf, lbf switchable
Output Interface RS232 communication port; optional built-in thermal printer
Printer Output Auto-print report: peel strength, max force, average force, elongation, test date
Safety Devices Overload protection, emergency stop, upper/lower travel limit, leakage protection, auto-return
Standard Fixture 1 set of 180° Peel Test Fixture (for adhesive tape, protective film and laminated film peel strength testing)
Optional Fixtures & Accessories 90° peel fixture, manual wedge tensile grips, pneumatic parallel grips, sample cutting knife, non-standard customized fixtures
Applicable Test Standards ASTM D3330 (adhesive tape peel), ASTM D882 (plastic film tensile), ASTM E4 (force calibration)
Power Supply AC220V 50Hz; AC110V 60Hz optional
Dimensions (L*W*H) 420 * 420 * 1350mm
Net Weight Approx. 40kg
Important Notes
  1. 5%–100% FS represents the hardware readable range. The valid test range for formal accredited reports is 20%–80% full-scale according to ASTM E4.
  2. For thin tape and ultra-lightweight film, please select the optional small-capacity load cell (50N / 100N) to obtain stable and repeatable peel and tensile test data. Using a large-range load cell for tiny-force samples will cause poor data consistency.
  3. The standard 180° peel fixture is intended for adhesive tape, protective film and composite laminated film. Switch to wedge or pneumatic parallel grips when performing pure tensile tests on film according to ASTM D882.
  4. All optional fixtures and accessories are sold separately.
Ready to find the right test solution for your adhesive tape, protective film or laminated composite film?

Contact our engineering team to receive the full technical datasheet, fixture recommendations and a best-price quotation.

Small-force load-cell options are available for ultra-thin samples. A one-year warranty and lifetime technical support are provided.

Frequently Asked Questions
Q: Is the puncture fixture included in the standard package?

A: No. The standard package includes manual wedge tensile grips. The puncture probe is an optional accessory; please let us know if you need puncture testing and we will quote the complete set.

Q: Can the load capacity be changed?

A: Yes. 500N is standard; 50N, 100N and 200N load cells are optional, and other ranges can be customized.

Q: Do I need a computer to run the machine?

A: No. It works standalone with the HMI touch screen and built-in thermal printer. PC software and RS232 are optional for curve analysis and report management.

Q: Can fixtures be customized for my specimen?

A: Yes. Send us your specimen dimensions and test standard and we will propose the matching fixture.

Q: What about calibration?

A: Each unit is factory calibrated before shipment; third-party calibration is available on request.
