Flexing Penetration Test Machine for Shoe Upper Materials with 4 Groups of Specimens, 50±1 mm Reciprocating Stroke, and 20 Times/Min Roller Frequency

1 Unit
MOQ
Negotiable
Price
Flexing Penetration Test Machine for Shoe Upper Materials with 4 Groups of Specimens, 50±1 mm Reciprocating Stroke, and 20 Times/Min Roller Frequency
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Laboratory Testing Equipment
Warranty: 1 Year
Size Service: Support Customer Customization
Roller Reciprocating Frequency: 20 Times/min
Reciprocating Stroke: 50±1 Mm
Water Flow Rate: 7.5±2.5 Ml/min
Counter: 6-digit LCD Display
Specimen Quantity: 4 Groups
Highlight:

4 groups of specimens Flexing Penetration Test Machine

,

50±1 mm reciprocating stroke Shoe Upper Material Tester

,

20 times/min roller frequency Insole Water Absorption Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4021
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Shoe Upper Material Flexing Penetration Test Machine for Leather Artificial Leather Fabric UP-4021
Product Introduction
The UP-4021 Insole Water Absorption & Desorption Tester is professional laboratory testing equipment designed for shoe upper raw materials, including leather, artificial leather, textile fabrics, and other footwear materials. This machine simulates human walking conditions by placing cut specimens on a wet platform and subjecting them to repeated flexing motion under specified compression force. It evaluates the penetration resistance index of materials, as well as water absorption and hydrolysis adsorption performance of insoles. The test data provides reliable reference for material development and waterproof treatment optimization of footwear products.
Key Features
  • Simulates real walking state with roller reciprocating flexing test
  • Stable & controllable compression force ensures repeatable test results
  • 4 groups of specimens can be tested simultaneously for high efficiency
  • Precise LED timer (accuracy up to 0.01s) and 6-digit LCD counter
  • Adjustable water flow system to maintain wet test environment
  • Rough test platform conforming to standard test requirements
  • Desktop structure with simple operation and easy maintenance
Technical Specifications
Item Specification
Compression Force 80±5N
Roller Reciprocating Frequency 20 times/min
Reciprocating Stroke 50±1 mm
Platform Surface Roughness 25 μm
Water Flow Rate 7.5±2.5 ml/min
Timer LED, accuracy: 0.01s, range: 1~100h
Counter 6-digit LCD display
Specimen Quantity 4 groups
Power Supply AC220V, 50Hz
Product Images

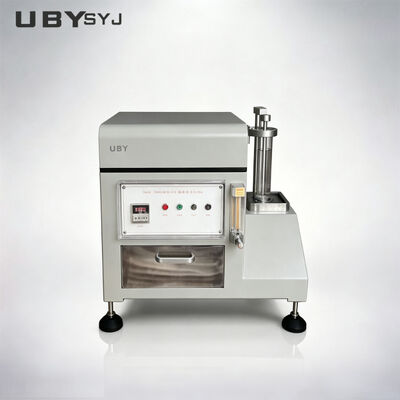

UP-4021 Shoe Upper Material Flexing Penetration Test Machine front view UP-4021 testing machine technical diagram UP-4021 machine in operation with test specimens
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solution
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment. We can make special arrangements for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to start using. We can also assist with on-site installation when necessary.
