Customizable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Linear Continuous Ramp and High Temperature Uniformity

1 Unit
MOQ
$5999~$9999
Price
Customizable Linear Rapid Temperature Change Test Chamber with 1℃-15℃/min Linear Continuous Ramp and High Temperature Uniformity
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Linear Rapid Temperature Change Test Chamber
Custom Service: OEM,ODM
Cooling Time: 10°C/min (non-linear，no Load)
Temperature Range: -70℃ ~ +150℃ (Optional)
Linear Temp. Change Rat: 1℃-15℃/min (Linear Continuous Ramp, Customizable)
Temperature Uniformity: ≤±1.0℃
Temperature Fluctuation: ≤±0.5℃
Warranty: 1 Year
Highlight:

1℃-15℃/min Linear Continuous Ramp Environmental Test Chamber

,

Customizable Temperature Range Linear Rapid Temperature Change Test Chamber

,

High Temperature Uniformity Temperature Cycling Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal;
Supply Ability: 20 Unit/month
Product Description
Customizable Linear Rapid Temperature Change Test Chamber 1℃-15℃/min Linear Continuous Ramp UP-6195
Product Overview

This linear rapid temperature change chamber adopts advanced air circulation temperature control technology, achieving continuous and linear temperature rising/falling without step pause. It features fast temperature change rate, high temperature uniformity and stable performance.

The closed-loop control system ensures precise temperature variation, which is widely used for reliability screening, stress testing and quality verification of electronic components and finished products. The equipment supports customized temperature range, temperature change rate and internal chamber size according to customer test requirements.

Compliance Standards
  • IEC 60068-2-1 (Environmental testing - Temperature test)
  • IEC 60068-2-2 (Environmental testing - Dry heat test)
  • IEC 60068-2-14 (Temperature cycling test)
  • GB/T 2423.1-2, GB/T 2423.22
  • MIL-STD-810H Temperature cycle test
Applications

Suitable for reliability tests of automotive electronics, new-energy battery components, semiconductor chips, PCB boards, optoelectronic devices, communication modules, aerospace parts and household electrical appliances. It is applied in R&D verification, production screening and batch quality inspection for electronic and electrical industries.

Technical Specifications
Item Specification
Temperature Range -70℃ ~ +150℃ (Optional)
Linear Temp. Change Rate 1℃-15℃/min (Linear continuous ramp, customizable)
Temperature Uniformity ≤±1.0℃
Temperature Fluctuation ≤±0.5℃
Refrigeration System Air-cooled / Water-cooled cascade refrigeration
Control System PLC + Touch-screen controller, programmable ramp soak function
Safety Protection Over-temp protection, overload protection, low-pressure alarm, power-failure recovery function
Power Supply AC380V±10% 50Hz 3 phase / Customized
Product Images

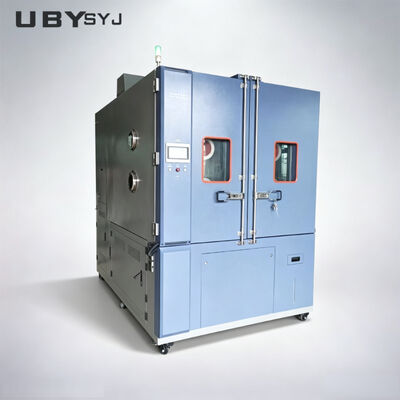

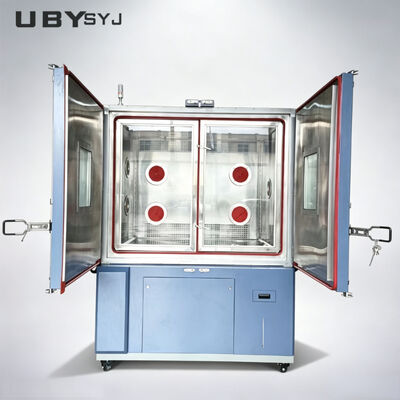

Linear Rapid Temperature Change Test Chamber front view Linear Rapid Temperature Change Test Chamber side view Linear Rapid Temperature Change Test Chamber control panel
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; if there is no stock, normally, the delivery time is 15-20 working days after payment is received; if you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
