Computer-Controlled Universal Testing Machine with 600 mm Test Stroke and Class 1 Accuracy for Material Strength Testing

1 Unit
MOQ
Negotiable
Price
Computer-Controlled Universal Testing Machine with 600 mm Test Stroke and Class 1 Accuracy for Material Strength Testing
Features Gallery Product Description Chat Now
Features
Specifications
Force Accuracy: Within±0.5%
Control: Computer Control
Test Speed Range: 10~500 Mm/min
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Test Force Range: 0.4%~100% FS
Effective Test Stroke: 600 Mm
Product Name: Tensile Tester Equipment
Load Capacity: 2-200KG (Optional)
Accuracy Grade: 1
Power Source: AC110-220V
Highlight:

Computer Control Universal Testing Machine

,

600 mm Test Stroke Tensile Tester Equipment

,

Class 1 Accuracy Peel Strength Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2001
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Computer-Controlled Material Tensile Peel Strength Test Equipment for Rubber Leather Tape UP-2001
Product Overview

Computer-controlled tensile and peel testing machine is a multi-function material testing instrument designed for comprehensive material analysis and quality control.

  • Wide applicability for rubber & plastic, footwear, leather, adhesive tape, textile, insulation materials, terminals and other raw materials
  • Capable of performing tensile, tearing, 90°/180° peel, bending and other mechanical property tests
  • Ideal for material R&D and quality inspection applications
  • Supports flexible upgrades by replacing load cells, extensometers and fixtures for wider measuring range and higher testing accuracy
Standards Compliance

ASTM D412, ASTM D624, ISO36, ISO37, ISO20872, ISO20874, and other relevant industry standards.

Applications

Rubber & plastic industry, footwear & leather industry, adhesive tape & sticker industry, textile, electronic insulation parts, terminal connectors, packaging materials for laboratory quality control and material development.

Technical Specifications
Item Specification
Load Cell 0.5 grade high precision force sensor
Load Capacity 2-200 kg (Optional)
Accuracy Class Class 1
Test Force Range 0.4% ~ 100% FS
Force Accuracy Within ±1%
Displacement Indication Error Within ±1% of indicated value
Control Mode Full computer control
Transmission Stepper motor + high strength timing pulley
Ball Screw Taiwan-made double-structure precision ball screw
Machine Structure Separate design for main frame and control box
Test Speed Range 10~500 mm/min
Speed Accuracy Within ±1% of indicated value
Effective Test Stroke (Excluding Fixture) 600 mm
Fixture Surface Treatment Hard-chrome plated, hardness ≥ HRC55
Data Transmission 24-bit high-precision acquisition, RS-232 transmission. Data saved in peripheral hardware. No extra dongle required for convenient computer upgrade & maintenance
Dimension 50 × 40 × 150 cm
Net Weight Approx. 60 kg
Power Supply AC 220V, 50Hz
Product Images

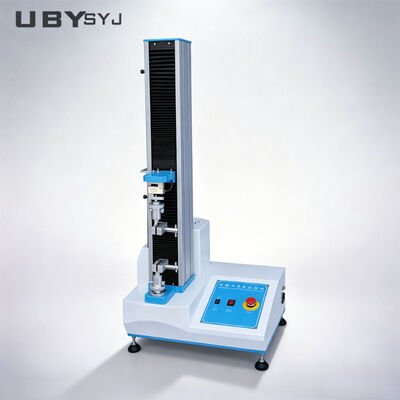

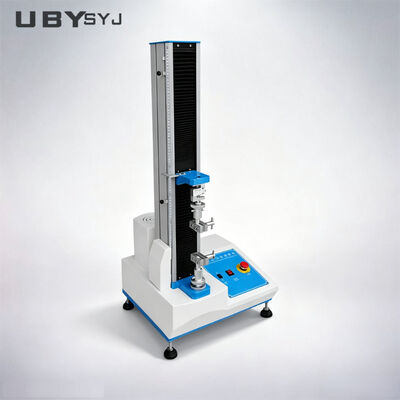

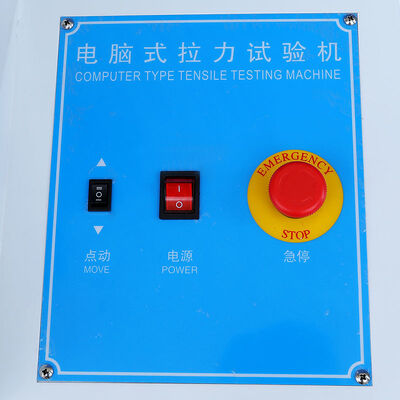

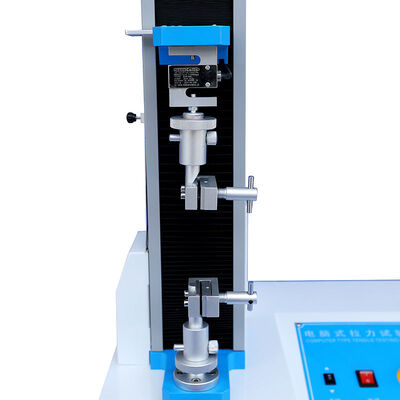

Computer-controlled tensile peel strength test equipment front view Close-up view of testing machine components Material testing equipment side perspective Tensile peel strength test equipment operational view
Our Service Process

We offer comprehensive Consultative Selling services throughout the entire business process:

  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide on-site installation and comprehensive after-sales support services
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom logo placement.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
