Home /Products/Lab Testing Equipment/Computer Control Peel Force Testing Machine with 0.5-grade Accuracy and 600 mm Test Stroke for Adhesive Testing

Computer Control Peel Force Testing Machine with 0.5-grade Accuracy and 600 mm Test Stroke for Adhesive Testing

1 Unit
MOQ
Negotiable
Price
Computer Control Peel Force Testing Machine with 0.5-grade Accuracy and 600 mm Test Stroke for Adhesive Testing
Features Gallery Product Description Chat Now
Features
Specifications
Load Capacity: 1/2/5/10/20/50KG (Optional)
Control: Computer Control
Force Accuracy: Within±0.5%
Power Source: AC110-220V
Test Speed Range: 0.1~500 Mm/min
Effective Test Stroke: 600 Mm
Test Force Range: 0.4%~100% FS
Product Name: Tensile Tester Equipment
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Accuracy Grade: 0.5
Highlight:

Computer Control Peel Force Testing Machine

,

0.5-grade Accuracy T-peel Tester

,

600 mm Test Stroke Peel Adhesion Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2001
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description

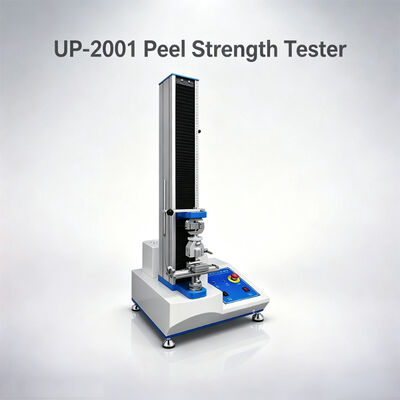

Peel Force Testing Machine 90° 180° T-peel Tester for Tape Label Protective Film UP-2001
Product Overview

The Peel Force Testing Machine UP-2001 is a computer-controlled peel tester specifically developed for adhesive tape and adhesive industries. Designed to measure peel strength of various adhesive products, this machine supports 90°, 180°, T-peel and floating-roller peel tests for high-strength adhesives with optional custom fixtures.

ASTM D903 Compliance

ASTM D903 specifies procedures for measuring peel/stripping strength of adhesive bonds between flexible materials and rigid or flexible substrates. This industry benchmark is widely adopted in pressure-sensitive tape, double-sided tape, protective film, label, and composite material manufacturing.

Applications
  • 90° peel test
  • 180° peel test
  • T-peel test
  • Floating-roller peel test
  • Tensile-shear strength test
  • Tear strength test

Suitable for protective film, double-sided tape, foam tape, sticker label, and other adhesive-related quality inspection applications.

Technical Specifications
Item Specification
Load Capacity 1/2/5/10/20/50KG (Optional)
Load Cell 0.5-grade high-precision force sensor
Accuracy Class 0.5 grade
Force Accuracy Within ±0.5%
Speed Accuracy Within ±1% of indicated value
Effective Test Stroke 600 mm
Ball Screw Taiwan-made double-structure precision ball screw
Displacement Indication Error Within ±1% of indicated value
Test Force Range 0.4%~100% FS
Test Speed Range 0.1~500 mm/min
Fixture Surface Treatment Hard-chrome plated, hardness ≥ HRC55
Software Self-developed material test software for Win7 platform
Data Transmission 24-bit high-precision acquisition, RS-232 transmission, independent hardware data storage
Dimension 50 * 450 * 1080 mm
Net Weight Approx. 60 kg
Power Supply AC 220V, 50Hz, 0.4KW
Standards Compliance

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7

Peel Force Testing Machine UP-2001 front view Peel Force Testing Machine UP-2001 side view Peel Force Testing Machine UP-2001 close-up detail
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of testing equipment. Every machine includes 12-month warranty with extended coverage for sea transportation. We provide free maintenance and technical support via email, phone, or video chat with solutions offered within 24-48 hours.

What is the delivery time?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requests receive special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How do I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin use. On-site installation assistance is available when necessary.
