Home /Products/Lab Testing Equipment/Computer Control Peel Force Tester for 180 Degree Peel Test with 0.5-grade Accuracy UP-2001

Computer Control Peel Force Tester for 180 Degree Peel Test with 0.5-grade Accuracy UP-2001

1 Unit
MOQ
Negotiable
Price
Computer Control Peel Force Tester for 180 Degree Peel Test with 0.5-grade Accuracy UP-2001
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Tensile Tester Equipment
Control: Computer Control
Load Capacity: 1/2/5/10/20/50KG (Optional)
Accuracy Grade: 0.5
Force Accuracy: Within±0.5%
Effective Test Stroke: 600 Mm
Test Speed Range: 0.1~500 Mm/min
Test Force Range: 0.4%~100% FS
Power Source: AC110-220V
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

Computer Control Peel Force Tester

,

180 Degree Peel Test Machine

,

0.5-grade Accuracy Tensile Tester Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2001
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Computer Peel Force Tester 180 Degree Tape Film Peel Test Machine UP-2001
Product Introduction

Computer-controlled peel tester is specially developed for adhesive tape and adhesive industries. It is designed to measure the peel strength of various adhesive products. With optional custom fixtures, the machine supports 180°, 90°, T-peel and floating-roller peel tests for high-strength adhesives. It can also perform tensile-shear strength and tear strength tests for adhesives. Widely used in quality inspection for films, adhesive tapes, labels and packaging materials to realize strict production quality control.

Standards Compliance

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7

Applications
  • 90° peel test
  • 180° peel test
  • T-peel test
  • Floating roller peel test
  • Tensile shear strength test
  • Tear strength test

Suitable for protective film, double-sided tape, foam tape, sticker label and other adhesive-related quality inspection.

Specifications
Item Specification
Load Capacity 1/2/5/10/20/50KG (Optional)
Load Cell 0.5-grade high-precision force sensor
Accuracy Class 0.5 grade
Force Accuracy Within ±0.5%
Speed Accuracy Within ±1% of indicated value
Effective Test Stroke 600 mm
Ball Screw Taiwan-made double-structure precision ball screw
Displacement Indication Error Within ±1% of indicated value
Test Force Range 0.4%~100% FS
Test Speed Range 0.1~500 mm/min
Fixture Surface Treatment Hard-chrome plated, hardness ≥ HRC55
Software Self-developed material test software for Win7 platform
Data Transmission 24-bit high-precision acquisition, RS-232 transmission, independent hardware data storage, no extra dongle required for easy computer upgrade & maintenance
Dimension 50 × 450 × 1080 mm
Net Weight Approx. 60 kg
Power Supply AC 220V, 50Hz, 0.4KW

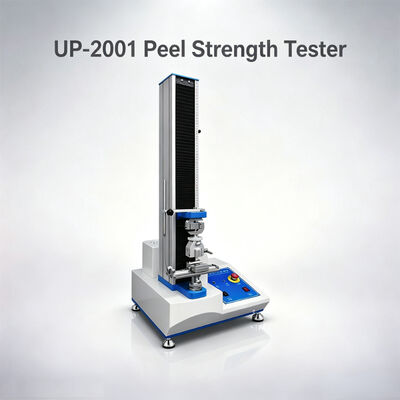

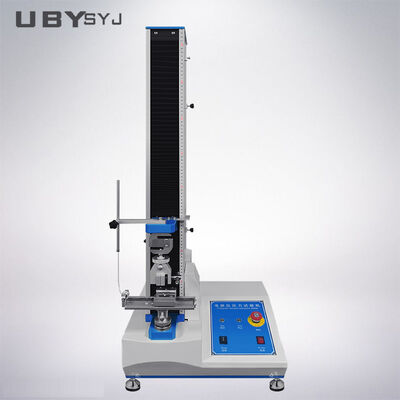

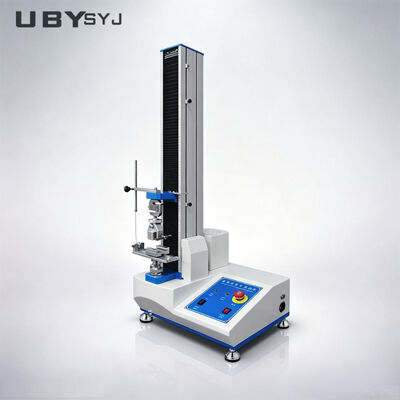

Computer Peel Force Tester UP-2001 front view Computer Peel Force Tester UP-2001 side view Computer Peel Force Tester UP-2001 close-up detail
Our Service

During the whole business process, we offer Consultative Selling services.

  • Customer inquiry process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and delivery process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and after-sale service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine (normal machines): If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.

Most of our machines are shipped as a complete unit, which means they are already installed. You just need to connect the power cable and start using it. And if it's necessary, we can also assist you to install your machine on-site.
