Computer-Controlled Peel Adhesion Tester with 0.5 Accuracy Grade and 600mm Test Stroke for Universal Tensile Testing

1 Unit
MOQ
Negotiable
Price
Computer-Controlled Peel Adhesion Tester with 0.5 Accuracy Grade and 600mm Test Stroke for Universal Tensile Testing
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Universal Material Tensile Tester
Capacity: 2 - 200 Kg (selectable)
Test Speed Range: 10 ~ 500 Mm/min
Test Stroke (without Fixture: 600mm
Accuracy Grade: 0.5
Control: Computer Control
Power Source: AC110-220V
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

Computer Control Peel Adhesion Tester

,

0.5 Accuracy Grade Universal Tensile Testing Machine

,

600mm Test Stroke Material Strength Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2001
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Computer-Controlled Peel Adhesion Tester UP-2001
Product Overview

The UP-2001 500kg Computerized Single Column Universal Tensile Testing Machine is specifically designed for material strength testing in the adhesive tape and adhesive industries. This precision instrument performs peel strength testing of various adhesive products using multiple testing modes.

Key Applications
  • 180°, 90°, T-peel, and floating roller peel tests
  • Tensile shear strength and tear strength testing
  • Material research and quality inspection for rubber, plastic, footwear, leather, adhesive tape, garment, textile, insulator, and terminal materials
  • Bending tests and comprehensive adhesive property analysis
Compliance Standards

This testing machine complies with international standards including: ASTM D903, ASTM D3330, ISO8510-2, JIS-K6854, PSTC 7, GB/T2790, and GB/T2792.

Technical Specifications
Component Specification
Load Cell 0.5 class high precision force sensor
Capacity 2 - 200 kg (selectable)
Accuracy Grade Class 1
Test Force Range 0.4% ~ 100% FS
Force Accuracy Within ±1%
Displacement Indication Error ±1% of indicated value
Control System Full computer control
Transmission Mode Stepper motor + high strength timing belt pulley
Motor Power 0.4 KW
Test Speed Range 10 ~ 500 mm/min
Speed Accuracy Within ±1% of indicated value
Test Stroke (without fixture) 600 mm
Software System Self-developed PK-2000 professional material test software for Win7 and above
Dimension 50 × 40 × 150 cm
Weight Approx. 60 kg
Power Supply AC 220V, 50Hz
Product Images

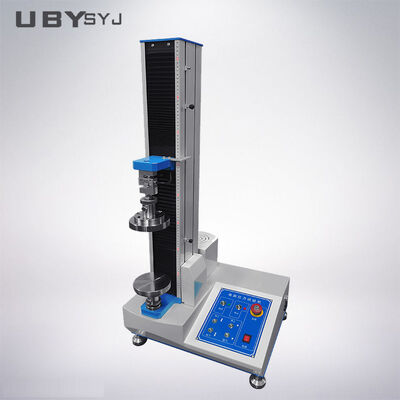

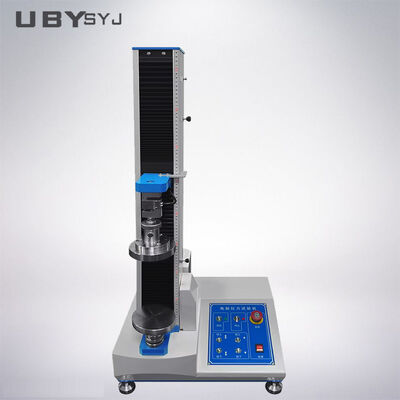

Computer-Controlled Peel Adhesion Tester UP-2001 front view Computer-Controlled Peel Adhesion Tester UP-2001 close-up view
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

  • Customer Inquiry: Technical discussion, product recommendation, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality production with progress updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom branding with your logo.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
