Home /Products/Universal Testing Machine/UP-2003 Servo Universal Testing Machine with 100kN Max Capacity and Class 0.5 Accuracy for Material Testing

UP-2003 Servo Universal Testing Machine with 100kN Max Capacity and Class 0.5 Accuracy for Material Testing

1 Unit
MOQ
Negotiable
Price
UP-2003 Servo Universal Testing Machine with 100kN Max Capacity and Class 0.5 Accuracy for Material Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-2003
Test Speed: 40~400mm/Min
Effective Test Width: 500mm
Crosshead Speed Range: 0.01~500mm/min
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Effective Tensile Stroke: 750mm
Additional Service: Support Customer Customization
Maxcapacity: 100kN
Resolution: 1/500, 000
Power Accuracy: ≤0.5%
Product Name: Tensile Strength Testing Equipment
Power Source: AC110-220V
Highlight:

100kN Max Capacity Universal Testing Machine

,

Class 0.5 Accuracy Tensile Strength Testing Equipment

,

Servo Motor Control Material Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2003
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description

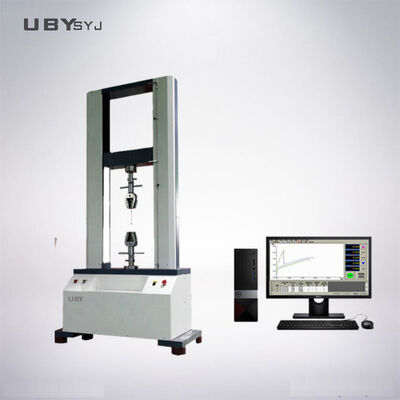

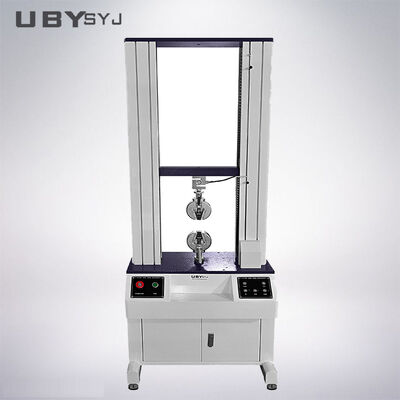

UP-2003 Servo Universal Tensile Testing Machine
High-precision, multi-functional mechanical testing equipment designed for industrial quality inspection and laboratory research. Features dual-column rigid frame structure, high-precision servo motor and ball screw transmission system with stable operation, high testing accuracy and strong durability, reaching Class 0.5 measurement precision.
Product Features
Supports full range of interchangeable customized fixtures including wedge tensile grips, compression platens, 3-point & 4-point bending fixtures, shear fixtures, peel fixtures, manual and pneumatic clamping grippers, and special fixtures for ropes, chains and special-shaped workpieces.
Perfectly clamps and tests metal materials, plastic rubber, composite materials, hardware fasteners and building materials.
Compliance Standards
  • ISO 7500-1, ISO 6892-1 (metallic material tensile test)
  • ISO 527-2, ISO 178 (plastic tensile & flexural test)
  • ASTM E4, ASTM E8, ASTM A370 (metal mechanical test)
  • ASTM D638, ASTM D790 (plastic tension & bending)
  • GB/T 16491, GB/T 228.1
Applications
Metallurgy, auto parts, hardware fasteners, building materials, aerospace, new composite materials, rubber & plastic, scientific research institutes, university laboratories, quality supervision institutions, machinery manufacturing factories.
Test samples include steel bar, alloy plate, bolt, profile, high strength plastic, fiber reinforced composite, hardware component, etc.
Technical Specifications
Item Specification
Max Test Force 100 kN
Accuracy Grade Class 0.5
Force Measuring Range 2%~100% Full Scale
Force Resolution 1 / 500000 FS
Crosshead Speed Range 0.01 ~500 mm/min
Speed Accuracy ±0.1% of set value
Effective Tensile Stroke 750 mm
Effective Test Width 500 mm
Displacement Resolution 0.001 mm
Control Mode Force / Displacement / Deformation closed loop control
Software Language English / Chinese (switchable)
Power Supply AC 220V, 50/60Hz
Machine Structure Double column floor standing frame
Test Functions Tension, compression, bending, shear, peel
UP-2003 Servo Universal Tensile Testing Machine Versatile Modular Tensile Strength Equipment Stable Tensile Testing Machine
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Customization: Create drawings and reference photos for customized requirements, confirm final solution and pricing
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of testing equipment. Every machine purchased has a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. If your machine doesn't work, contact us via email or phone - we'll diagnose the problem and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. No stock: 15-20 working days after payment. Urgent needs receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - just connect the power cable and start using. We offer on-site installation assistance when necessary.
Tag:

Tensile Strength Equipment

Universal Tensile Tester

Universal Strength Testing Machine
