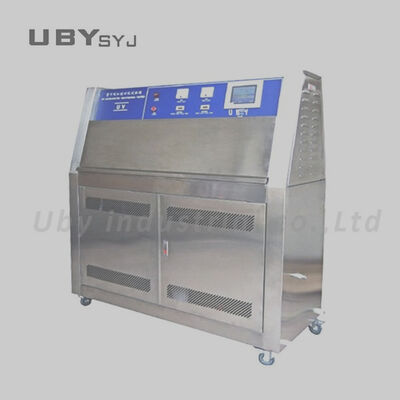

Name: UV Aging Climatic Test Chamber Simulated Solar UV Aging Testing Equipment UP-6200 UV Accelerated Weathering Tester with UVA-340 UVB-313 Lamps and Programmable Multi-Cycle Test Modes
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6200
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Working Chamber Size: 45×117×50 Cm

External Dimensions: 70×135×145 Cm

Temperature Range: RT+10ºC~70ºC

Humidity Range: ≥95%R.H

Temperature Fluctuation: ±0.5℃

Temperature Uniformity: ≤1.0℃

UV Lamp Quantity: 8 (4 Per Side)

UV Wavelength: 290nm~400nm

Lamp Power: 40W

Tube Distance: 35mm

Sample-Tube Distance: 50mm

Sample Plate Size: 300mm×75mm, Approx. 20 Pcs

Highlight:

UV aging test chamber with temperature control

Solar UV aging testing humidity chamber

Environmental test chamber with UV lamp

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6200

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal

Supply Ability: 30 Unit/month

Gallery

UV Aging Climatic Test Chamber Simulated Solar UV Aging Testing Equipment UP-6200 UV Accelerated Weathering Tester with UVA-340 UVB-313 Lamps and Programmable Multi-Cycle Test Modes

Product Description

Product Overview

The UP-6200 UV Aging Climatic Test Chamber simulates natural solar ultraviolet radiation, rain, and condensation environments to accelerate the weathering aging testing of materials. Equipped with UVA-340 and UVB-313 UV lamps and programmable multi-cycle test modes, it is widely used for durability testing of plastics, coatings, rubber, inks, and automotive materials.

Main Features

The accelerated weathering tester chamber is shaped by CNC machining for an attractive, refined appearance; the case cover uses a two-way flip-cover design for easy operation.
Both the inner and outer chamber are made of imported super #SUS stainless steel, enhancing appearance texture and cleanliness.
Heating is achieved through the inner tank water channel, providing fast heating and uniform temperature distribution.
The drainage system uses a vortex-flow type and U-type sediment device for easy cleaning.
QUV design is user-friendly, easy to operate, safe, and reliable.
Adjustable specimen mounting thickness for easy installation.
The upward rotating door does not hinder user operation.
A unique condensation device requires only tap water to meet operational demands.
The water heater is located beneath the container for long service life and convenient maintenance.
Water level is controlled outside the QUV for easy monitoring.
Wheels make moving the unit easy.
Computer programming is easy and convenient.
The irradiation calibrator extends service life.
English and Chinese manuals are provided.

Test Standards

ASTM G 151, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE J 2020, ISO 4892.

Applications

Widely used in the paint, coating, plastic and rubber material, printing and packaging, adhesive, car and motorcycle, cosmetic, metal, electronics, and electroplating industries, among others.

Technical Parameters

Model	UP-6200
Working Chamber Size (cm)	45 × 117 × 50
Outside Size (cm)	70 × 135 × 145
Tube Number	UV Lamp 8, 4 per side
Performance Index
Temperature Range	RT + 10 °C ~ 70 °C
Humidity Range	≥ 95% R.H
Tube Distance	35 mm
Distance Between Sample and Tube	50 mm
Supporting Sample Plate Quantity	Length 300 mm × Width 75 mm, about 20 pcs
Ultraviolet Wavelength	290 nm ~ 400 nm (UV-A340, UV-B313, UV-C351)
Tube Rate of Power	40 W
Control System
Temperature Controller	Imported LED digital P.I.D + S.S.R. microcomputer integration controller
Time Controller	Imported programmable time integration controller
Illumination Heating System	All autonomous system, nichrome heating
Condensation Humidity System	Stainless steel surface evaporative humidifier
Blackboard Temperature	Thermometal blackboard thermometer
Water Supply System	Humidification water supply uses automatic controlling
Exposure Way	Moisture condensation exposure and illumination radiation exposure
Safety Protection	Leakage, short circuit, over-temperature, hydropenia, and overcurrent protection

Product Gallery

Our Service

Throughout the entire business process, we offer consultative selling services tailored to your testing needs.

1. Customer Inquiry Process

We discuss your testing requirements and technical details, recommend suitable products for confirmation, and then quote the most suitable price according to your requirements.

2. Specification Customization Process

We prepare related drawings to confirm customized requirements with you, offer reference photos showing the product appearance, and then confirm the final solution and price together.

3. Installation and After-Sales Service

We define the installation of products in the field and provide ongoing after-sales support.

Frequently Asked Questions

1. Are you a manufacturer? Do you offer after-sales service? How can I request it, and what about the warranty?

Yes, we are one of the professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic and rubber testing equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months of free maintenance; considering sea transportation, we can extend this by 2 months for our customers. Moreover, if your machine does not work, you can send us an email or call us, and we will try our best to identify the problem through conversation or, if necessary, by video chat. Once the problem is confirmed, a solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machines, if we have stock in the warehouse, delivery is 3–7 working days. If there is no stock, the delivery time is normally 15–20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also put your logo on the machine, meaning we offer OEM and ODM services.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English via email. Most of our machines are shipped as a whole part, meaning they are already installed — you just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
