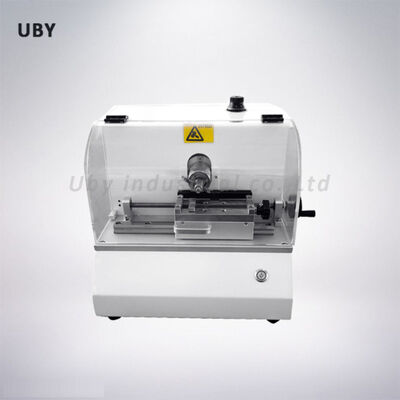

ISO ASTM Compliant Plastic Izod Charpy Impact Sampling Notch Machine

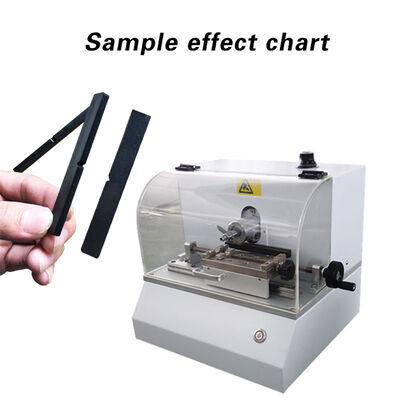

The electric notch sample making machine is designed for creating impact toughness test specimens for cantilever beam and simply supported beam impact testers used with non-metallic materials. This automated system can clamp 20 samples simultaneously and process over 100 notches every 10 minutes, delivering precise notch dimensions with high efficiency while significantly reducing operator workload.
Key Instrument Features
- High automation level with efficient sample preparation
- Complete protection devices for safe operation
- Convenient installation and user-friendly design
- Precision notch production with consistent dimensions
Compliance Standards
ISO 180-2000, GB/T 1843-2008, JB/T 8761-1998, ASTM D256-2010, ISO 179-2000, GB/T 1043-2008, JB/T 8762-1998

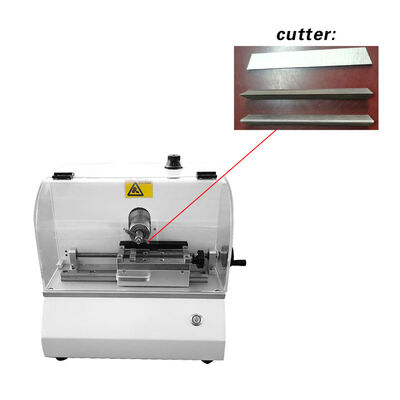

Premium Alloy Steel Cutting Tools
Imported alloy steel cutting tools manufactured from special alloy materials specifically for electric notch prototype machines. These tools produce standard sample notches for cantilever and simple support beam impact tests with exceptional performance characteristics.
- Hardness greater than HRC60
- Surface roughness value less than Ra0.4
- Cutting edge angle: 30° ± 0.1°
- Repeatedly grindable with extended service life
Tool Specifications
- A-type cutter: 45° ± 0.2° notch with r = 0.25 ± 0.05mm radius
- B-type cutter: 45° ± 0.2° notch with r = 1.0 ± 0.05mm radius (Optional)
- C-type cutter: 45° ± 0.2° notch with r = 0.1 ± 0.02mm radius (Optional)
Technical Specifications
| Worktable Stroke |
> 90mm |
| Feed Speed |
30mm/min |
| Sampling Efficiency |
> 100 notches/10min |
| Feed Range |
0-2.5mm optional |
| Feed Stroke |
10mm |
| Notch Type |
Customized according to tool specifications |
| Dimensions |
450mm × 390mm × 360mm (L×W×H) |
| Power Supply |
AC220V ± 10% 50HZ, single-phase three-wire system |
Comprehensive Service Support
Customer Inquiry Process: Technical requirement discussions, product recommendations, and competitive pricing based on your specific needs.
Customization Process: Detailed drawings and reference photos for customized requirements, final solution confirmation, and pricing agreement.
Production & Delivery: Manufacturing according to confirmed specifications, production progress updates, final product confirmation, calibration services, and timely shipping arrangements.
Installation & After-Sales: Field installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include 12-month warranty with extended coverage for sea transportation. We provide free maintenance and technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive special priority arrangements.
Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to specific requirements, including OEM and ODM services with your logo branding.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
