UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing

1
MOQ
Negotiable
Price
UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-4002
HS Code: 9024800000
Service Support: OEM ODM
Language: Chinese And English
Applications: Leather,Shoes
Testing Sample Quantity: 4PCS Shoes
Shoes Size: 18 ~ 45
Test Speed: 50 To 150 R/Min
Flexing Angle: 0~55°
Specification: Refer To The Actual Size Specifications
Highlight:

Bally leather flexing tester

,

High-precision footwear testing equipment

,

Durability tester with adjustable speed
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4002
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-4002 High-Precision Bally Leather Flexing Tester
High-precision Bally Leather Flexing Tester measures long-term durability of processed leather goods with exceptional accuracy and reliability.
Application
The Bally Resistance Flexing Tester determines the resistance of materials to cracking or other types of failure at flexing creases. This method is applicable to all flexible materials, particularly leathers, coated fabrics, and textiles used in footwear uppers.
Compliance Standards
SATRA TM 55; IULTCS/IUP 20-1; ISO5402-1; ISO 17694; EN 13512; EN344-1 section 5.13.1.3 and annex C; EN ISO 20344 section 6.6.2.8; GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; GE-24; JIS-K6545
Testing Methodology

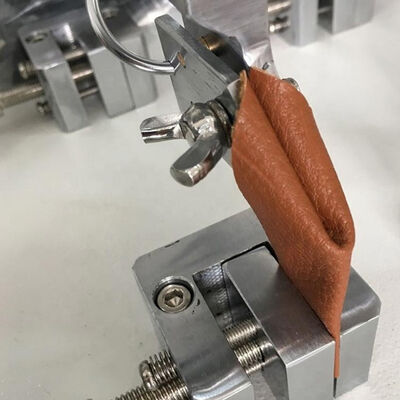

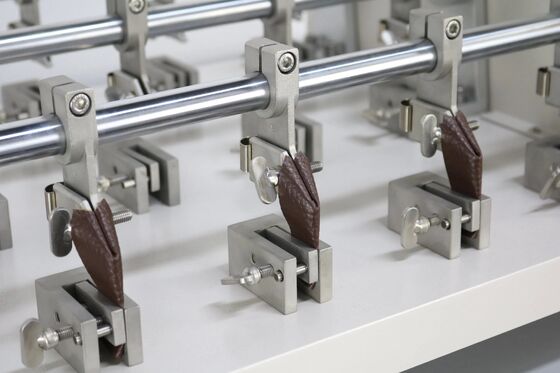

The test specimen is folded in half with one end secured in a clamp. The specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp repeatedly oscillates through a fixed angle at a defined rate, causing the specimen to flex. At set intervals, the number of flexing cycles is recorded and specimen damage is visually assessed. Tests can be conducted with wet or dry specimens at ambient conditions.
Technical Specifications
Testing Sample Quantity 4 pcs shoes
Shoe Size Range 18 - 45
Bending Angle 50°, 30°, 45°, 60°, 90° (adjustable)
Test Speed 50 to 150 r/min
Specimen Length 150 - 400 mm
Maximum Specimen Width 150 mm/each (MAX)

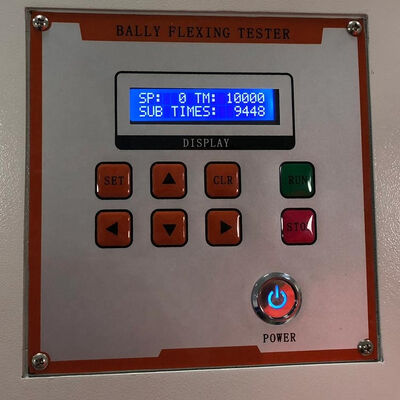

Counter LCD display 0 - 99,999,999 adjust
Motor DC 1/2 HP
Product Dimensions 97 × 77 × 77 cm
Weight 236 kg
Power Requirements 1∮, AC220V, 2.8A

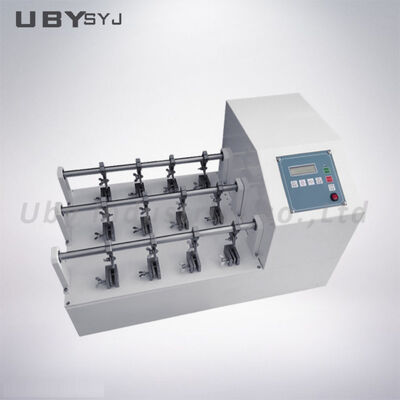

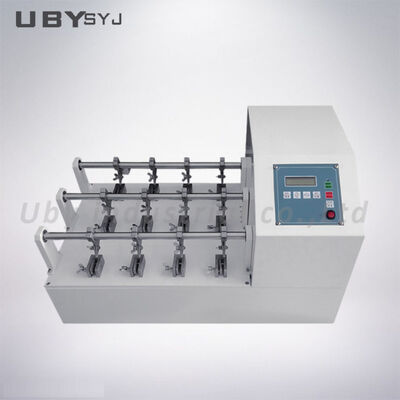

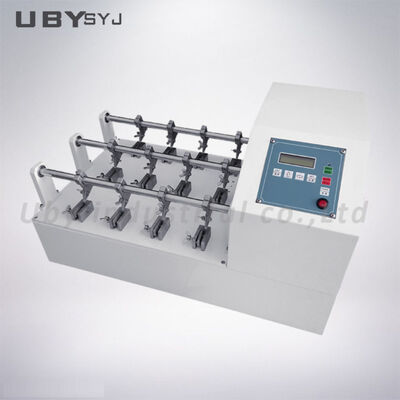

Product Images
UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 0 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 1 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 2 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 3 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 4 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 5 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 6 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 7 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 8 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 9 UP-4002 High-Precision Bally Leather Flexing Tester with 50 to 150 R/Min Speed and 0~55° Flexing Angle for Long-Term Durability Testing 10
Our Service Commitment
We provide comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment; Urgent requirements receive special arrangement priority.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement on equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
