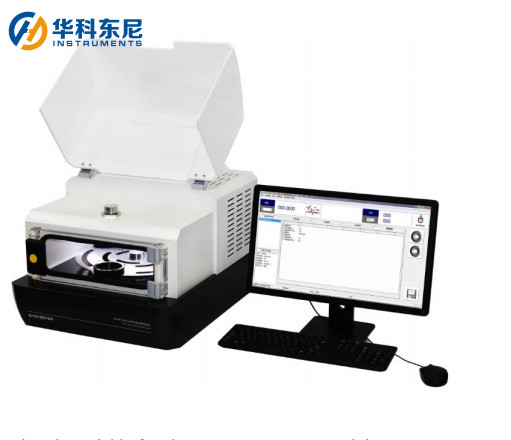

36L Water Vapor Permeability Tester With Computer HTZ C2

Large Image : 36L Water Vapor Permeability Tester With Computer HTZ C2

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-C2

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-c2	Iterm:	Lab Water Vapor Permeability Tester
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ISO 2528, ASTM E96, ASTM D1653, GB 1037, GB/T 16928, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003
High Light:	Lab Water Vapor Permeability Tester , Water Vapor Permeability Tester ISO 2528 , ASTM E96 Water Vapor Permeability Tester

Application :User can performs testing on packaging materials, such as plastic film, composite film, co-extrusion film, geo-membrane, aluminum-plated films and foils, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, and various packaging materials. It can also measure permeability through containers such as bag, pouch, bottle, can, bowl, box, pharmaceuticals, healthcare, electronics etc. with optional adopters for containers..

Principles

Test dishes filled with distilled water in a controlled dry atmosphere, a constant humidity difference is generated between two sides of the test specimen, the water vapor permeates through the specimen and into the dry side, water vapor transmission rate and other parameters can be obtained by measuring the weight changes of the test dish in different time.

Technical indexes

Test range:0.1~19,000 g/m2·24h (standard)
Test accuracy: 0.01 g/m2·24h
Specimen amount: 3 specimens, independent
Temperature range: 15C–60C Temperature accuracy: ±0.1C
Differential humidity range: Room-95%RH,standard condition 90%RH
Humidity accuracy: ±1%RH
Test area: 28.26cm2
Specimen size: Φ76mm
Air velocity: 0.5~2.5m/s (customization available)
Test chamber volume: 36L
Gas supply: Air
Gas interface: Φ8
Power supply: AC 220V 50Hz
Dimension: 650 mm(L) * 550 mm(W) *475(H)mm
Net weight: 67kg

Standard

ISO 2528, ASTM E96, ASTM D1653, GB 1037, GB/T 16928, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003

Features

specimens, continuously test
3 specimens, continuously test
One-button test, test automatically in whole process
Multiple test modes optional
Temperature and humidity auto control
Data curves display
Computer control
Environment temperature and humidity sensor inside
Unit based on embedded system,24bit Δ-Σ AD
Traceable reference film calibration
Supports DSM system (DSM, lab data management system)

accessories:

Mainframe, computer, W-CTrans software, test dishes(3), desiccant tube, pressure regulator, automatic moisture filter, calibration weight, communication cable, sample cutter.

Optional: Reference film, air drying device, sample cutter, DSM system
