Home /Products/Packaging Testing Equipment/High Precision ±1% Accuracy Compression Test Machine for Customizable Dimensions Packaging Testing Equipment ISO 2872 Compliant

High Precision ±1% Accuracy Compression Test Machine for Customizable Dimensions Packaging Testing Equipment ISO 2872 Compliant

1 Unit
MOQ
Negotiable
Price
High Precision ±1% Accuracy Compression Test Machine for Customizable Dimensions Packaging Testing Equipment ISO 2872 Compliant
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6035
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Accuracy: ±1%
Measurement Range: (50~10000)N
Resolution: 0.1n
Return Speed: 100mm/min
Measurement Size: (600*800*800) Other Dimensions Can Be Customized
Product Name: Packaging Testing Equipment
Highlight:

ISO 12048-2001 Packaging Compression Tester

,

Packaging Compression Tester Machine

,

Cardboard Box Compression Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Compression Test Machine For Testing Fully Packed Transport Cardboard Boxes APPI T804
The cardboard box compression machine is a professional testing instrument designed to evaluate the compressive performance of various packaging containers. It is suitable for pressure resistance, deformation, and stacking tests of corrugated cardboard boxes, honeycomb board boxes, and other packaging materials. The machine also accommodates compression testing of containers including plastic drums (for edible oil, mineral water), paper drums, paper boxes, paper cans, and IBC drums.
Test Standards
  • GB/T 4857.4 - Pressure test method for packing and transporting packing parts
  • GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
  • ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
  • ISO 2874 - Packaging - A complete and full packing package - Stacking test by pressure tester
  • QB/T 1048 - Cardboard and compressive strength tester
Technical Specifications
Parameter Specification
Accuracy ±1%
Measurement Range (50~10000)N
Measurement Size (600*800*800) mm (other dimensions can be customized)
Resolution 0.1N
Error of Deformation ±1mm
Pressure Plate Parallelism Less than 1mm
Test Speed (10±3) mm/min (stack: 5±1mm/min)
Return Speed 100mm/min
Unit Interchange N/Lbf/KGF interchange
Man-Machine Interface 3.5in liquid crystal display with curve showing change process
Printer Module type thermal printer
Working Conditions Temperature (20±10°C), Humidity < 85%
Appearance Size 1050*800*1280mm
Product Images

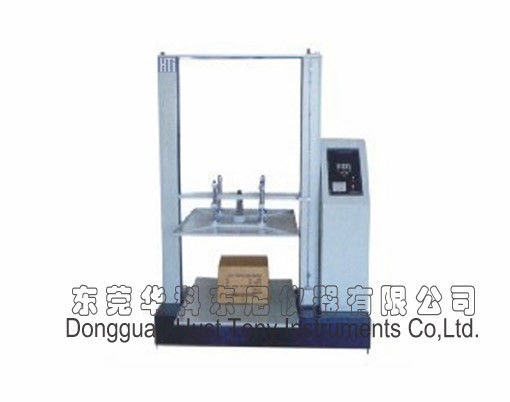

APPI T804 Compression Test Machine for cardboard box testing ISO 12048-2001 Compression Tester of Fully Packed Transport Cardboard Boxes
Our Service
During the entire business process, we offer consultative selling services:
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products for confirmation, then provide the most appropriate pricing according to customer requirements.
Specifications Customization Process
Create related drawings for customized requirements confirmation, provide reference photos to show product appearance, then confirm final solution and pricing.
Production and Delivery Process
Manufacture machines according to confirmed PO requirements, provide production process photos, conduct factory or third-party calibration, perform final testing, and arrange packing and delivery according to confirmed shipping schedule.
Installation and After-Sales Service
Provide field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this by 2 additional months for our customers. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What is the delivery timeline?
Standard machines in stock: 3-7 working days. Machines not in stock: 15-20 working days after payment receipt. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How do I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin use. When necessary, we provide on-site installation assistance.
