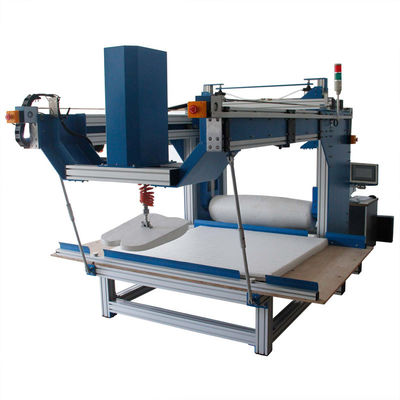

ASTM F1566 Mattress Durability ( 3 on 1) Comprehensive Tester EN1957

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ASTM F1566 Mattress Durability ( 3 on 1) Comprehensive Tester EN1957

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TNJ-007
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-007 Iterm: Mattress Durability Comprehensive Tester
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: ASTM F1566,BS EN1957, QB/T 1952.2-2011
High Light:

ASTM F1566 Mattress Durability Comprehensive Tester

,

EN1957 Mattress Durability Comprehensive Tester

,

Mattress Durability Comprehensive Testing Machine

1) Purpose of equipment

Mattress Rolling Machine has been manufactured to determine the durability of any type of mattress and box spring unit, regardless of the materials of construction, by simulating long-term use conditions.



Download PDF, Please click on here .



2)Standard :

ASTM F1566,BS EN1957, QB/T 1952.2-2011





Test items: include the following tests and measurement projects:

1.Durability test for the bed surface.( simulating the effects to the mattress after the body of people rolls on it)

2.Durability test for bed edge . ( simulate a people sits on the edge of the mattress)

3.Height measurement of the mattress.--thickness test

4.Measurement of the Hardness value.---hardness test

(also  you can choice what you need : only one / 2 on 1 / 3 on1 )



Equipment characteristics:

1) Durability Test Applications& Test Purpose

Mattess Durability Tester using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.

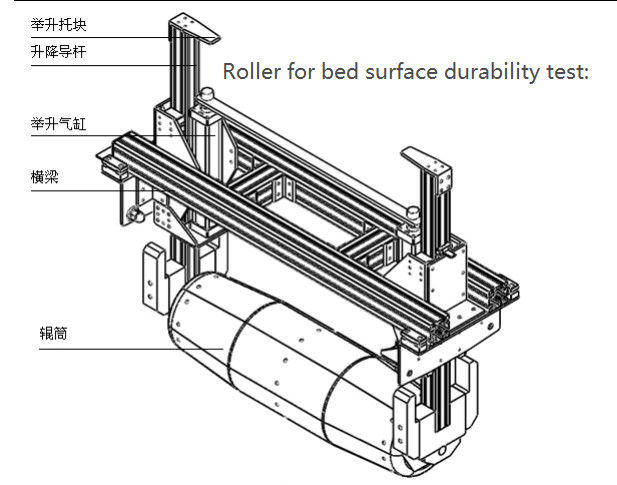

Roller for bed surface durability test:



ASTM F1566 Mattress Durability ( 3 on 1) Comprehensive Tester EN1957 0

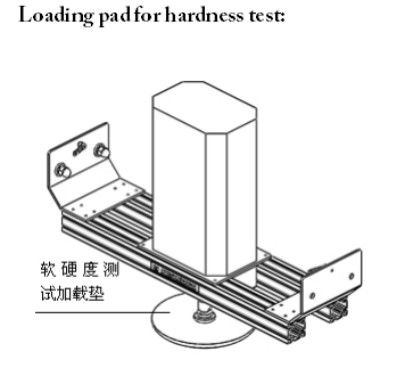

2) EN Hardness and Height Change Test

Mattress Hardness and Height Change Test Applications & Test Purpose:

The mattress test machine combines the loading device (roll) with a hardness measuring device. Thus, firmness test can be carried out according to ASTM F 1566 or EN 1957, without the need for a rearrangement of the specimen, which would falsify the measured values. It can also display height change by servo measuring system.







ASTM F1566 Mattress Durability ( 3 on 1) Comprehensive Tester EN1957 1



3) Edge Test

Test Standard: EN1725

Applications& Test Purpose:

The machine increases mattress fatigue test function, it simulate human sitting on the edge of mattress, with 1000N force to test the fatigue of mattress for 5000 cyclic according to EN1725.





ASTM F1566 Mattress Durability ( 3 on 1) Comprehensive Tester EN1957 2



Technical parameters:

Rolling test stroke: The mattress mid-line left and right are both 500 mm.

Rolling test speed: 16±2Cycles per minute (or specified by customer)

Cylinder Roller: 1400N, The middle diameter: 300mm, Both ends diameter: 250mm, length: 1000

Hexagon style wooden roller: size as standard requirement

Counter: 0~999999can be set.

The control way of rolling: Touch screen + PLC control

Loading cushion on the edge: buttocks shape, 380mmx 495mm

Loading parts on the edge: The midpoint on the long edge of the mattress.200 mm from edge.

Loading force on the edge: 1000N

Loading time on the edge: 3S

Position of measurement: Mattress center, Left and right are both 250mm, the midpoint on the long edge

of the mattress 200 mm inward.

Loading plate of measurement: Diameter 355mm, Radius of curvature of the end R800mm

Capacity of force sensor: 2kN

Loading speed of measurement: 90±5mm/min

Stroke: 500mm

Drive motor: Servo motor
