Product Details:
Payment & Shipping Terms:
|
Model Number: | TNJ-023 | Iterm: | Chair Seat Stability Testing Machine |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | ANSI/BIFMA X5.1-2017-12.4 Front Stability; EN 1022, EN 1729-2 |
High Light: | Chair Seat Stability Testing Machine,EN 1729-2 Chair Seat Stability Tester,EN 1022 Chair Seat Stability Tester |

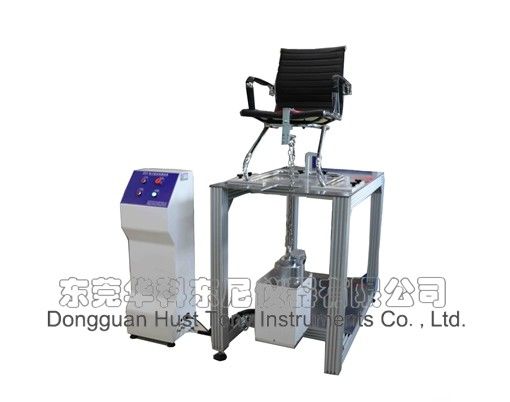

Use : This machine is suitable to test the seats (such as chairs, office chairs) forward stability. The purpose of these tests is to evaluate the front and rear stability of chairs.
Standard :
ANSI/BIFMA X5.1-2017-12.4 Front Stability;
EN 1022,
EN 1729-2
Specification
Power | Electronic |
Seat surface loading Max | 600N |
Horizontal force | 20N |
Loading point position | seat surface center position,60mm from front edge |
Seat surface loading pad | dia:200mm, camber surface:R300mm,9 pins |
Weights basket lifting | manual control |
Dimensions(WxDxH) | 100x140x105cm |
Weight | 500kg |
Air source | 6kgf/cm2 stable air source |
Seat impatct testing | office chair impact test |
