Product Details:
Payment & Shipping Terms:
|
| Model Number: | TW-262 | Iterm: | Drop Ball Impact Testing Apparatus For Toy Cover Face Testing |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Standard: | NM300-1,ASTM F963 8.7.4 Impact Test For Toys That Cover The Face |
| High Light: | Drop Ball Impact Testing Machine,Drop Ball Impact Testing Apparatus,ASTM F963 Impact Testing Machine |
||

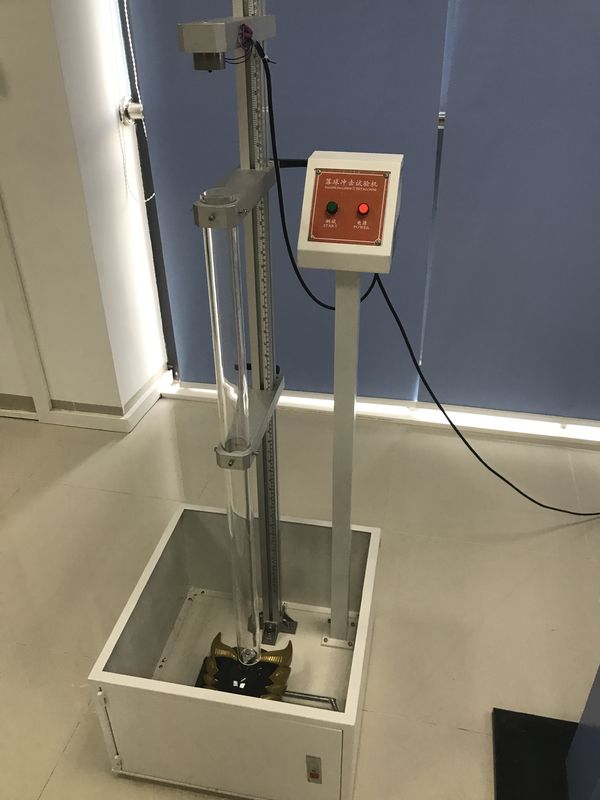

Drop Ball Impact Testing Apparatus adops DC magnetic control, the ball will be sucked automatically when it placed under the magnetic chuck, press the drop button, the ball will be free fall, impacting the test object surface. The falling height can be adjusted up or down, the drop height can be see by the height scale. The key components of the machine are made from Japan, reliable performance, multi-drop attachments; make your test accurate and effective.
Apply standard:
NM300-1,ASTM F963 8.7.4 Impact Test for Toys that Cover the Face
Specifications:
1. Impact Height Range:0-2000MM can be adjusted
2. Control Method:DC electromagnetic control free-all test, impact single once
3. Dimension of specimens:50 * 120 * 60mm, 60 * 120* 80mm
4. Test Height: Can be specified the height and drop the ball.
5. Controll box: Separate electronic magnetism steel install on the bottom
6. Dimension:500 * 500 * 1400MM
7. Power supply:220V 50Hz
8. Steel ball weight: 15.8g Steel ball diameter 16mm
9. Weight:65KG
10. Power:40KW
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
