Product Details:
Payment & Shipping Terms:
|
| Model Number: | HTY -009 | Iterm: | Single Yarn Strength Testing Instrument |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | ISO2062,ASTM D2256 |
| High Light: | ISO2062 Single Yarn Strength Tester,ASTM D2256 Single Yarn Strength Tester,Single Yarn Strength Testing Instrument |
||
Standard : ISO2062,ASTM D2256
Description:

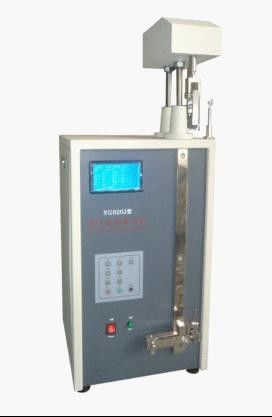

Electronic Single Yarn Strength Tester used for the test of the breaking strength and elongation at break of pure and blended yarns made of cotton, wool, ramie, silk chemical fibers as well as tungsten(molybdenum) filaments.
It does adopt CRE principle and automatically operated with pneumatic/magnetic clamp, provided with
scales
0-5000cN force max.
Specifications:
| Force scale | 0-1000cN; 0-3000cN; 0-5000cN |
| Force division | 0.5CN; 1CN; 1cN |
| Precision | <=1 %F.S |
| Extention speed | 50-1000mm/min (adjustable) |
| Reverting speed | 50-1000mm/min (adjustable) |
| Extention scale | 100mm,250mm,500mm (three selection) |
| Pretension | 0～150cN (adustable) |
| Power | AC 220V±10% 50Hz |
| Dimension | 370*450*970(mm) |
| Weight | 60kg |
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
