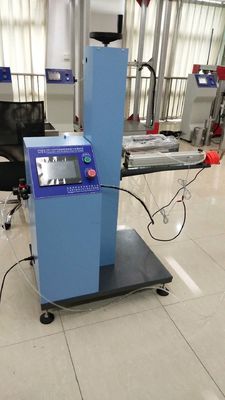

BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: HTJ-005A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-005A Iterm: Drawer Slides Mechanical Durability Cycle Tester
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: BSEN 1728 ,BIFMA X5.1
High Light:

BIFMA X5.1 Drawer Durability Tester

,

BSEN 1728 Drawer Durability Tester

,

Drawer Slides Durability Strength Cycle Tester

Application: Designed to test drawers, desks, cabinets and wardrobe.



Drawer Durability Tester is used to test the durability of the drawer slides of furniture.

Apply a certain load inside the drawer, repeated pull-out and close of the drawer.

After a certain number of cycles, check if the slide is still able to meet the requirements.





Technical Parameter:



Model TNJ-005
Maximum stroke 400mm
Speed 0.25m/s
Test height Max.108cm
Count: 0 ~ 999999 can be set
Control mode Text controller + PLC control
Dimension(W x D x H) 80x60x120cm
Weight (about) ≈80Kg
Power supply AC 220V 50Hz 3A
Gas source ≥ 6kgf / cm2 stable gas so



STANDARD:  BSEN 1728 , BIFMA X5.1



Technical specifications

This machine use for opening and closing drawer and must to fulfill minimum needed as follow:

Compressed air – 6 kg/cm²

AC motor –to control the height from 250-1000mm

Pneumatic cylinder – double acting cylinder with magnetic switch and maximum stroke 600 mm (adjustable). The cylinder shall have the fixture to hold any type of drawer handle to open / close the drawer without exerting force on the drawer system

Control panel/ console consists of :

Power supply: 240 Volts: 13 Amps: 50 Hz

ON/OFF switch button

6- digits Electronic Predetermine Counter (EPC)

The EPC will register every stroke of the cylinder up to six (6) digits,

Will stop the test operation to the preset stroke,

The EPC will display the number of stroke achieved during the test,

EPC also able to store the number of cycles when the power interruption take place and able to display the actual reading and continues counting when operation resumes

The signal shall maintain until the counter is reset

Note: one stroke is counted as one cycle

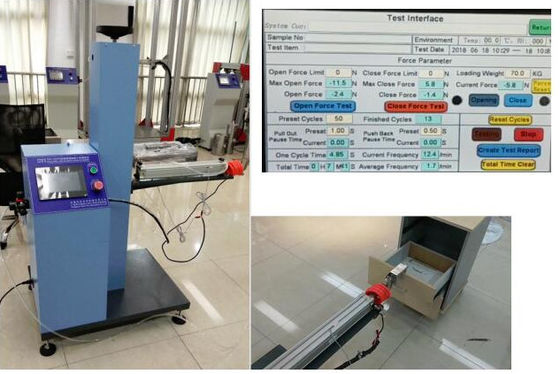

BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester 0

















Service and Support
      Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
      In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.

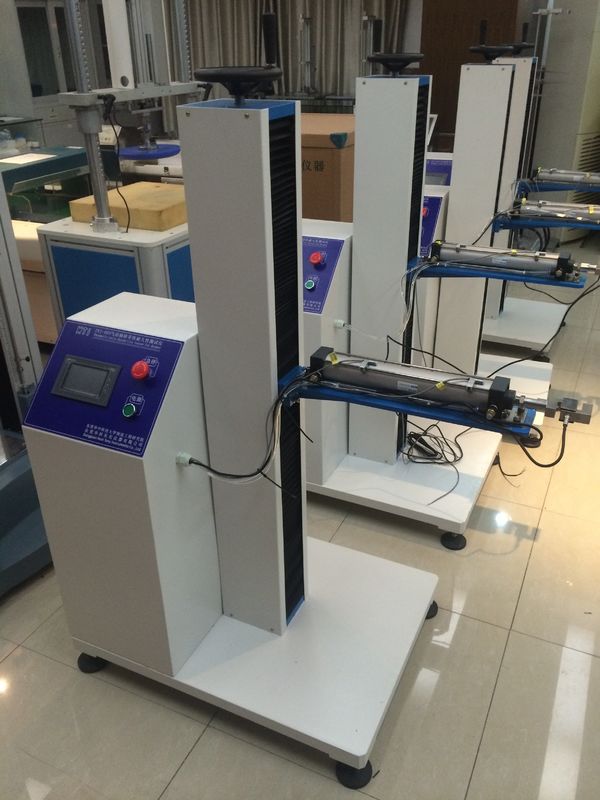

BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester 1
