Product Details:
Payment & Shipping Terms:
|
Model Number: | HTY-003B | Iterm: | Yarn Twist Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Standard: | GB/T2543.1 GB/2543.2 ISO 2061 BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70 | ||
High Light: | ASTM D1422 Twist Tester Machine,DIN 53832 Yarn Twist Tester,ASTM D1422 Yarn Twist Tester |

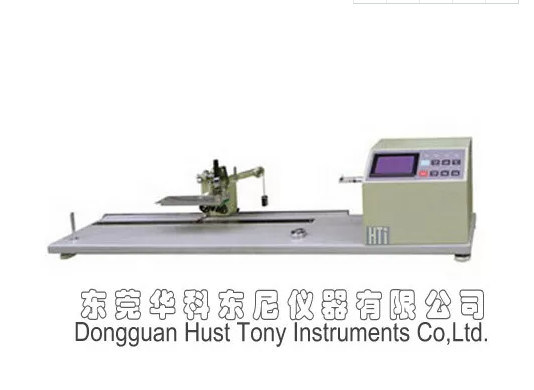

Yarn Twist Tester, to determine yarn twist in single or plied yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Twist Tester Machine complies with ISO 2061, ASTM D1422/1423, BS 2085,etc. Twist test is very important in textile testing. Our Yarn Twisting Machine price is also competitive.
Description:
The machine is used for the textile industry to test the yarn twist such as cotton, wool, silk, fibre, chemical fibre etc. Automatically to counting and printing the test data.
Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarn, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Specifications:
Three methods available to be selected by the operator:
1. Traditional "untwist/ retwist " methods
2. Direct " untwist" method
3. Untwist, retwist and double countercheck
Testing Length Range: 25mm, 50mm, 100mm, 250mm, 500mm
External Dimensions: 1080*275*216mm (L*W*H)
Power: AC 220V 50HZ
Standards:
GB/T2543.1 GB/2543.2 ISO 2061 BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70
