Product Details:
Payment & Shipping Terms:
|
Product Name: | Dynamic Strength Of Barriers And Handrails | Model Name: | TW-403 |
---|---|---|---|
Brand Name: | HTI | Dimension: | 3300×1400×1900mm |
Comply With Standard: | EN171-8,ISO8124-4 | Power: | 220V 50Hz |
Original Place: | Made In China | ||
High Light: | EN1888 Strength Testing Machine,AC220V Strength Testing Machine,TW-403 strength testing equipment |

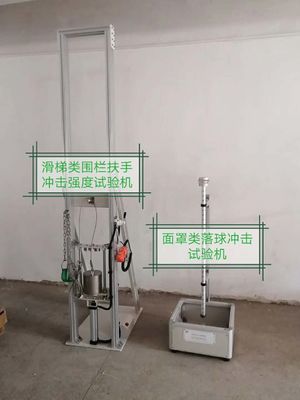

EN1888 TW-403 Dynamic strength Test Machine -Dynamic strength of barriers and handrails
Catalogue for EN71-8 Test Apparatus.pdf
This apparatus is used for dynamic testing of barriers and handrails
When tested in accordance with ISO8124-4 6.3, no part of the barrier or handrail shall collapse, such that the toy does not comply with the relevant requirements of this part of ISO 8124.
Principle: A sudden horizontal impact stress is applied to the barrier or handrail, through a pad, by a falling load.
Place and secure the pad to the top of the barrier or handrail at the most onerous position and without causing any damage to the toy. Attach the free end of the rope to the pad.
Arrange the rope and the pulley so that the load hangs freely. Raise the load vertically 125 mm ± 10 mm and let it drop freely (this will give an impact energy of approximately 30 J). Within 10 s, remove all tension from the barrier.
Size: 500×500×2500mm
Weight: 25 kg ± 1 kg
Impact height: 125mm±10mm
Impact way: free drop
Impact energy: 30J
Sample height: 90cm~240cm
Control: pulley control
Size(WxDxH) 56x85x254cm
Weight: ≈140Kg
Gas source: ≥6kgf/cm2
Power: 1∮ AC 220V 50Hz 3A
Standard: EN71-8 6.4 Dynamic strength of barriers and handrails ;ISO 8124-4 6.3 Dynamic strength of barriers and handrails (see 4.2)
