Product Details:
Payment & Shipping Terms:
|
| Measurement Range:: | A. 0~16N, B. 0~32N, C. 0~64N | Model Number: | HTF-018 |
|---|---|---|---|
| Pruduct Name: | Elmendorf Tearing Tester | Usage: | TextileTearing Test |
| Standard: | ISO1974/9290 , ASTM D1424/5734 | Tearing Length: | 43mm |
| Slash Length:: | 20±0.2mm | Sample Dimensions:: | 100 * 63 Mm |
| High Light: | Elmendorf Tearing Tester,64N Textile Testing Equipments |
||

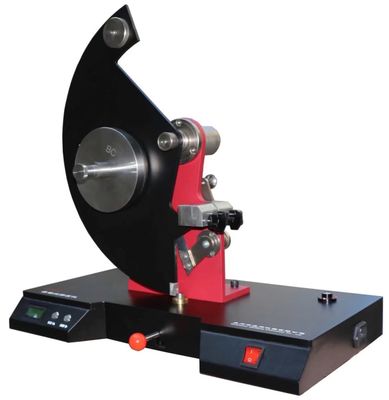

Product Name: HTF-018 Elmendorf Tearing Tester
HTF-018 Fabric Testing Equipments Elmendorf Tearing Tester For Textile TearingTest
Model: HTF-018
Detailed Description:
Elmendorf Tearing Tester.To determine the ballistic tearing strength of textiles, paper or board
The instrument is used to test the tearing strength of woven fabric, light-weight nonwoven fabric and coated fabric etc .
The principle
A slit is centrally precut in a test specimen held between two clamps and the specimen is torn through a fixed distance.
The resistance to tearing is in part factored into the scale reading of the instrument and is computed from this reading and the pendulum capacity.
Specifications:
Measurement range: A. 0~16N, B. 0~32N, C. 0~64N
Test accuracy: ≤±1 Calibration
Sample Dimensions: 100 * 63 mm
Slash length: 20±0.2mm
Tearing length: 43mm
Dimensions: 400 * 210 * 395mm (L*W*H)
Weight: 30kg
Accessories: weights 2 pcs
Standards:ASTM D1424, GB/T3917.1, FZ/T60006, FZ/T75001
