Product Details:
Payment & Shipping Terms:
|
Product Name: | Textile Colour Fastness Friction Testing Machine | Model Name: | HTC-002C |
---|---|---|---|
Brand Name: | HTI | Dimension: | 280 X 230 X 735 Mm |
Comply With Standard: | ISO105X12/D02 ,AATCC 8/165,BS1006 D02 | Weight: | 15kg |
Test Speed: | 60 Rpm/min | Friction Head Diameter:: | 16mm |
Highlight: | textile testing instrument,textile testing machine |

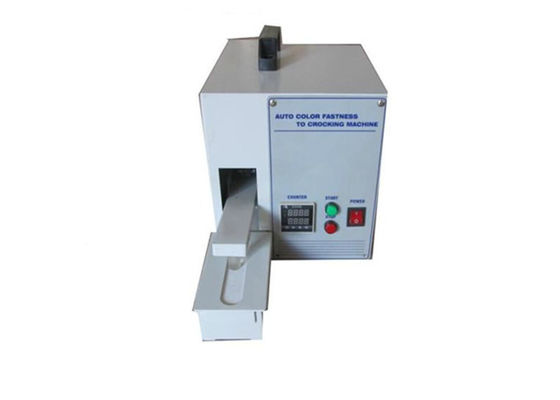

Textile Colour Fastness Friction Testing Machine With ISO105X12/D02 ,AATCC 8/165,BS1006 D02
HTC-002C Electric friction test machine
Detailed Description:
This equipment mainly consists of control system and system of friction, the sample with the sample holder on the base with one end of the paste with sand paper, friction will be wrapped in white cloth placed on the sample, the friction after the specified number, observe the specimen card compared with ashes on the evaluation of white cotton stick color degree, the stability of the dyed or surface coating on the sample of the fabric to judge, and provide reference data for evaluation and selection of materials.This apparatus is suitable for yarn, color weaving, printing and dyeing, as well as all the fabrics on or inside the toy products.
Technical Parameter:
Friction head diameter: 16mm + / - 0.1
Friction stroke: 104/100mm (adjustable)
Vertical pressure: 9N plus or minus 10% (AATCC standard)
Running speed of friction head: 104 + / - 3mm/min (AATCC standard)
Test the number of reciprocating movements: 10 times
Friction speed: 60 + / - 1rpm/min
Weight: 15kg
Instrument size :600mm (24 inches) * 230mm (9 inches) * 260mm (11 inches)
Power connection: 220V, 50Hz
Standard friction small white cloth: 50 * 50mm, desizing, bleaching, cotton fabric without fluorescent whitening agent and finishing agent.
Standard stained grey card (optional purchase item)
Standard light source to color light box.(optional purchase item)
Standard :
ISO105-X12,D02,AATCC8/165,JIS L0849
