Product Details:
Payment & Shipping Terms:
|
| Loading Times:: | 0~99999times Can Be Set | Strength Adjust:: | Pressure Is Adjustable |
|---|---|---|---|
| Beams Lifting Way:: | Electric Lift | Power:: | AC 220V 50Hz 5A |
| High Light: | furniture testing equipment,temperature humidity test chamber,Bifma Standard Strength Durability Tester |
||

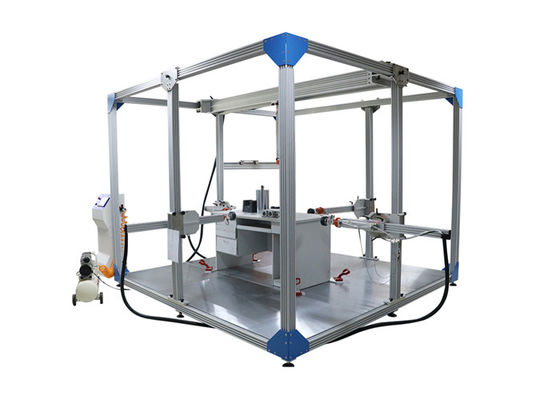

Furniture Cabinet Test Apparatus For Mechanical Test With BS EN , Bifma Standard
Features:
Strength Durability Tester for chest desk and bed adopts PLC controller to control the motion of the tester.It is simple to operate. Force value can be adjusted through the pressure changes in the precision pressure regulating valve.With high precision power sensor, it can induct the force value immediately.
Every load group can be adjusted to control by itself.Load force value is stable and reliable.The loading cushion is dismountable so that it is convenient to change different cushion to meet different test requirement.
Brief introduction:
The Furniture Universal Testing Machine is suitable for Chair , Desk And Bed Mechanical Testing,
Strength Durability Tester for chest desk and bed is used to test the strength and durability of each part of furniture through each part of furniture is under one-off or repetitive load in the normal use or wrong use condition.It is used for testing the mechanical performance of all kinds of desk chest and bed.
This tester can be used for doing the horizontal static loading test and also can do horizontal durability test.
Technical Parameter Performance:
| Loading cylinder: | Four Diameter 50mm,Route:300mm, |
| Loading force : | 0-1500Nþ (adjustable) |
| Force value induction: | high-precision power sensor Capacity:3KNþ |
| Load force solution: | 1/10000 |
| System test force accuracy: | ±1%(static) ; ±5% (dynamic) |
| Test speed: | 10~30 cycles per minute, 1-5 test cycles per 10 second (adjustable) |
| Loading cycle: | 0~999999 adjustable |
| Control method: | Microcomputer automatism servo control, Touch screen control |
| Loading method: | Pneumatic linear actuator |
| Specimen test station: | 5 |
| Test independence: | Independent control by each work station |
| Setting: | Computer software setting |
| Data storage: | RAM and U disc |
| Loading power: | Motor |
| Motion control: | PLC control |
| Dimension | 2.5x2.5x2m,(L×W×H) it is made of 80x80mm aluminum |
|
Air source: |
Air supply input is 0.4Mpa-0.8Mpa. (7kgf/cm^2 or above, supplied by customer themselves) |
| Power: | 1∮AC 220V 50Hz 5A, 3KW |
|
Standards:
|
BS EN 581-3,EN 747 5.4.5/5.5 ,GB/T10357.1 GB/T10357.4 GB/T10357.5 GB/T10357.6 GB/T10357.7 |
|
Accessories:
|
Seat loading pad 1 set; back loading pad 1set; Stationary fixture 1 set. |
