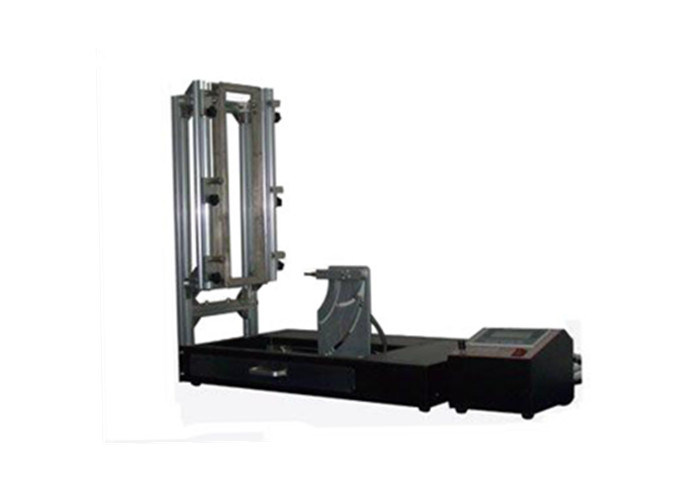

Textile Flammability Testing Chamber With Standards ISO 6940,6941,15025,BS 5438

Textile  Flammability Testing Chamber With Standards ISO 6940,6941,15025,BS 5438
Textile  Flammability Testing Chamber With Standards ISO 6940,6941,15025,BS 5438

Large Image :  Textile Flammability Testing Chamber With Standards ISO 6940,6941,15025,BS 5438

Product Details:
Place of Origin: China
Brand Name: TONY
Certification: ISO 6940,6941,15025,BS 5438
Model Number: HTB-003
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 8 workdays
Payment Terms: T/T, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Specimens Diameter:: 560mm*170mm, Warp, Weft Each 3pcs Flame Height:: 0~60mm(adjustable)
Fire Mouth Angle :: 0°/22.5°/90°(adjustable) Duration Of Ignition::: 5s
Combustion Gas:: Butane Gas Weight: 30 Kg
High Light:

flammability testing equipment

,

laboratory testing machines

Product Name: Textile Flammability Testing Chamber

Model:HTB-003





Detailed Descriptions



This tester is suitable for single component or multic-omponent (coating, quilting, multilayer, laminated products and similar) clothing, curtains and a large tent including cold tent and door cover textiles vertical to the properties of flame spread. This tester can only be used for evaluation of control in the laboratory under the condition of material or composite performance after contact with flame, The test results do not apply to the status of hypoxia occasion or heating time is too long in the fire.





Specifications:



Specimens diameter: 560mm*170mm, Warp, weft each 3pcs
Flame height: 0~60mm(adjustable)
Fire mouth Angle : 0°/22.5°/90°(adjustable)
duration of ignition: 5s
Combustion gas: butane gas
Dimension: 930*650*880mm(L*W*H)
Weight: 30kg
Power: 1∮ AC 220V 50Hz





Standards:

GB/T 5456,8746,BS EN ISO 6940,6941,15025,BS 5438,





Accessories:

Flame gauge 40mm 1pcs(ISO 6940,6941), Flame gauge 25mm 1pcs( ISO 6940,6941 Fire needle mouth positioning instructions 2pcs (ISO 6940,6941), clamp 2 set, weights 8 pcs, burning torch 1pcs Micro gas tanks device, Micro gas cylinders, power line 1pcs
