10X 20X 50X 100X Benchtop Optical Comparator / Digital Profile Projector

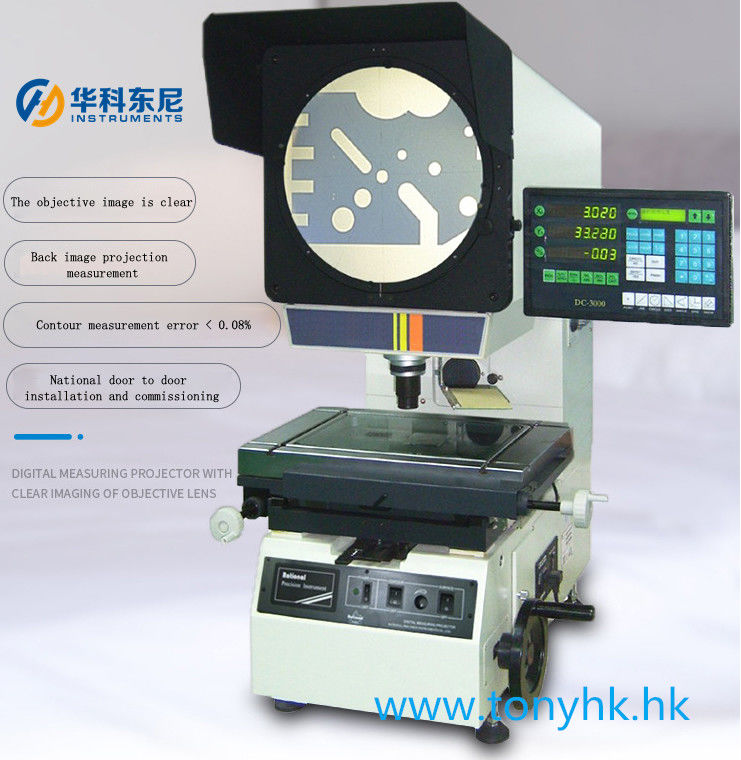

Large Image : 10X 20X 50X 100X Benchtop Optical Comparator / Digital Profile Projector

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	WCPJ-3015Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Wooden box
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	WCPJ-3015Z	Iterm:	Optical Comparator
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	CE
High Light:	100X Benchtop Optical Comparator , 10X Digital Profile Projector , 50X Automated Optical Comparator

10X 20X 50X 100X Optical Comparator & Digital Profile Projector

Usages:

1. Profile projector is mainly used for the measurement of the mechanical parts of the length,

angle, contour and surface shape.

2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and

measurement-inspecting department.

3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

Table	The metal table’s size	260*152 mm
	The glass table’s size	125*100 mm
	X-axis travel	75 mm
	Y-axis travel	50 mm
	Z-axis travel	90 (for focus)
	Measuring accuracy	3+L / 75 um
	Resolution(X-axis,Y-axis): 0.5 mm
Projector screen	Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)
	Screen rotary range: 0°~360°
	Resolution(X-axis,Y-axis): 1´ or 0.01°
Lens	Magnification: 10X option 20X option 50X option 100X option
	Object view(mm): Ø30 Ø15 Ø6 Ø3
	Working distance(mm): 77.7 44.3 38.4 25.3
	Max.workpiece height: 80mm 80mm 80mm 80mm
Data Processing System	DP-100multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.
Illumination	The illumination of transmission and reflection: 24V/150W-halogen lamp.
Power	110V/220V(AC), 50/60HZ, Total power=400W
Cold	Forced air cooling
Dimensions	7705501100mm
Weight	250kg

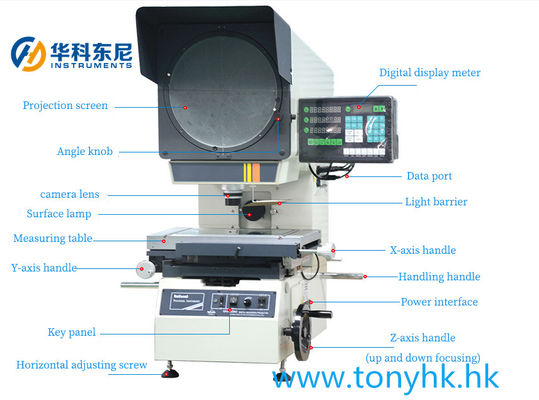

Features:

It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

400mm Measurement Profile Projector can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

400mm Measurement Profile Projector Used Profile Projector widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.

Measurement data can output and connect printer and computer.

It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.08%.Coordinate measurement deviation is ≤(3 + L/200) um, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.

Service and Support

Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.

10X 20X 50X 100X Benchtop Optical Comparator / Digital Profile Projector 0
