Product Details:
Payment & Shipping Terms:
|
| Product Name: | Toy Lid Tester, Lid Support Tester, Toy Box Cover Tester, Toy Durablity Tester | Model Name: | TW-228 |
|---|---|---|---|
| Brand Name: | HTI | Dimension: | 152×233×425 |
| Comply With Standard: | EN71-1,ISO8124-1,ASTM F963 | Weight: | 50KG |
| Materila: | Stainless Steel | Original Place: | Made In China |
| High Light: | Toy Lid Tester,EN 71-1 Toy Box Cover Tester,Lid Support Tester |
||

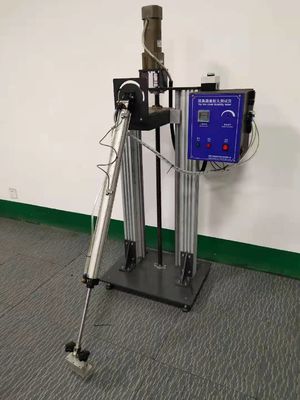

Toy Lid Tester,Lid support tester (Toy chest lids) according to EN 71-1:toy box cover tester,7000 cycle tests
Toy Box Cover Durability Tester , Toy Chest Tester
Application:
| (Toy chest lids) according to EN 71-1: (The time to complete one cycle shall be ~15 s. The 7,000 cycles shall be completed within a period of 72 h) |
Applications:
Toy Chest Lid Durability Tester applies to test the durability of toys box cover. It uses fixtures to drive the toy box cover move, after simulating a certain number of opening and closing movements, check whether the toy box lid hinge part’s functions are in good condition.
Standards: EN-71-1；ASTM F834；ISO 8124-1；GB 6675.2
Toys Lid Tester Durability Tester
Applications Industry
All kinds of children products can be tested on the Toys Chest Lid Tester.
The machine applies to test the durability of toys lid switch that can be repeated. Through toys lid
movements by the driven force of a rotating pendulum, to simulated hinged part of the toy lid is intact or not after a certain number of repeated opening and closing movements.
Parameters:
Control mode: Controlled by Micro-computer automatically
Action mode: pneumatic
Test pieces: Stop automatically
Sample for test: One pcs for each test
Test speed: 15 second for opening and closing movement each cycle.
Pendulum rod moving angle: 0°~80°
Test cycles: 7000 cycles
Counter: LED display; 0~9999 times
Max height: 700mm
Gas source: 6kgf/cm^2
Dimension (WxDxH): 97.5x35x126cm
Weight: 80kg
Power: 1∮ AC 220V 3A
Standards: 16 CFR 1500, ASTM F963 4.8, EN71-1 2014 8.31.3 , ISO 8124 -1 5.13
Contact Person: linmei
Tel: 86-13421721188
