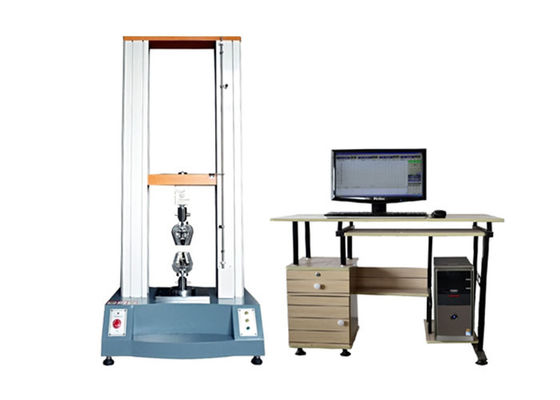

Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm

Dual Arm Computer Servo Tensile Testing Machine With  Effective Test Width 400mm
Dual Arm Computer Servo Tensile Testing Machine With  Effective Test Width 400mm

Large Image :  Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: HTI
Certification: ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209
Model Number: HTP-004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Package
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Dual Arm Servo Tensile Tester Model Name: HTP-004
Brand Name: HTI Dimension: 1100*700*2100mm
Comply With Standard: ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209 Weight: 15kg
Test Speed: 0.01 - 500mm / Min Unit Shift: N,KN,KGF,N,LBF,unit Of Length: Mm, Cm, Inch Freely Shift Convertible
High Light:

tensile testing equipment

,

tensile test equipment

Dual Arm Computer Servo Tensile Strength Tester(Digital Display)





Introduction of product:

This Tester can widely apply to a variety of different textile materials and wood, shoes, tires, leather, tannery,rubber tubes, triangular tape, plastic sheeting, plastic sheeting, packaging films, acrylic, FRP, ABS, EVA, PV and other products, semi-or dumbbell-shaped specimens of the tensile strength, elongation, tear, glue focused, tensile stress, peel, shear, the sticky relay of rubber and metal by using different fixtures





Technical parameters:

Item Model
Max Capacity HTP-004A HTP-004B HTP-004C HTP-004D HTP-004E HTP-004F HTP-004G HTP-004H HTP-004I
1000N 2000N 5000N 10KN 20KN 30KN 50KN 100KN 150KN
Accracy 0.5 grade
Test force loading the measuring range 0.4%-100%FS
Load Sensor High precision tension and pressure transmitter (multiple sensors can be installed at the same time - optional)
Max Test Force Resolution 1/200000
Unit Shift N,KN,KGF,N,LBF,unit of length: mm, cm, inch freely shift convertible
Test Speed range 0.01 - 500mm / min. or specified per customer.
Speed Control Accuracy ± 0.5% when the control rate ≥ 0.05% FS/S
Displacement measurement Accuracy ± 0.5% of indication
Test Strok 800mm,Effective test width 400mm or Customization
Dynamic system Servo motor + hight precision ball screw
Overload Protect system Over 10% of the set test force, the system will be stopped automatically
Power 220 VAC, 50/60 Hz,0.75 kW;
Dimension 1100*700**2100mm(L*W*H)
Weight 400KG





Comply With Standards:

ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209,ASTM D5034,ASTM D5053,ASTM D1424,ASTM D2212,ASTM D2262,ASTM D2261,ASTM D4704,ASTM D4705,ASTM D5733,ASTM D5734,ASTM D2207,ASTM D412,ASTM D638 ,ASTM D3137,ASTM D3574,ASTM D624,ASTM D3574,ASTM D4964,ASTM D2061,ASTM D5169,ASTM D5170,ASTM D2558,ASTM D413
