Home /Products/Abrasion Testing Machine/UP-1010 Taber Abrasion Tester with 60 rpm /72 rpm Adjustable Speed and 500g, 1000g Load Weights for Wear Resistance Testing

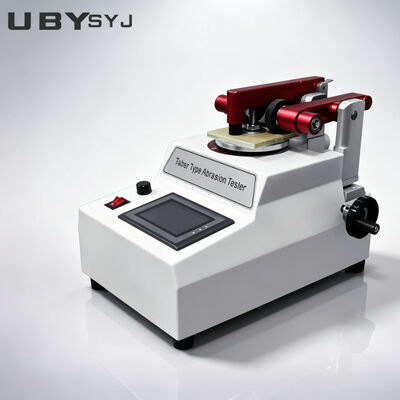

UP-1010 Taber Abrasion Tester with 60 rpm /72 rpm Adjustable Speed and 500g, 1000g Load Weights for Wear Resistance Testing

1
MOQ
Negotiable
Price
UP-1010 Taber Abrasion Tester with 60 rpm /72 rpm Adjustable Speed and 500g, 1000g Load Weights for Wear Resistance Testing
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Load Weights: 500g, 1000g (2 Pcs Each)
Abrasive Wheel Dimension: 2" × 1/2"
Counter Range: 0~999,999 Cycles
Turntable Speed: 60 Rpm /72 Rpm, Adjustable
Wheel Center Distance: 63.5 Mm
Specimen Size: Φ120 × Φ6.5 × 3 Mm
Abrasive Wheel Model: Taber S-32
Center Distance: 37~38 Mm
Wear Track: Outer Dia 3 1/2" × Inner Dia 2 1/2", Area: 30 Cm²
Power Supply: AC 220V, 50Hz
Highlight:

60 rpm /72 rpm adjustable Taber Abrasion Tester

,

500g 1000g load weights Wear Resistance Testing Machine

,

Touch screen control Abrasion Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1010
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 30 Unit/month
Product Description

UP-1010 Taber Type Abrasion Tester|Wood Floor Wear Resistance Testing Machine|UP-1010

Product Introducation:

Taber Abrasion Tester is a precision wear resistance testing instrument designed to evaluate the anti-abrasion performance of various solid sheet materials. It is widely used for wood flooring, composite floor, leather, fabric, paper, paint coating, plywood, ceramic tile, glass and natural rubber.

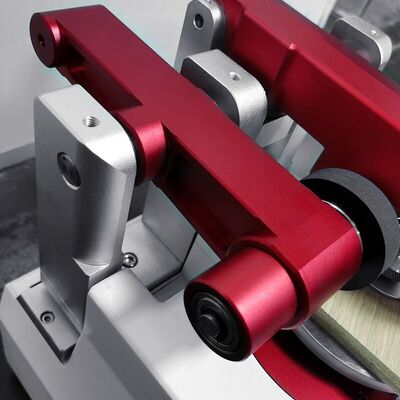

During the test, the specimen rotates under two abrasive wheels with specified load weights. The material will be worn by the rotating wheels. The abrasion loss value is calculated by the weight difference of the sample before and after the test, to judge the material wear resistance.

Standards:

DIN-53754,TAPPI-T476,ASTM D 1175

Application:

This tester is ideal for quality control labs, material research institutes, flooring factories, paint manufacturers and leather production enterprises to finish wear resistance inspection.

Technical Parameters:

Item

Specification

Specimen Size

Φ120 × Φ6.5 × 3 mm

Load Weights

500g, 1000g (2 pcs each)

Abrasive Wheel Model

Taber S-32

Abrasive Wheel Dimension

2" × 1/2"

Center Distance Between Wheel & Specimen Disc

37~38 mm

Wear Track

Outer Dia 3 1/2" × Inner Dia 2 1/2", Area: 30 cm²

Rotation Speed

60 rpm /72 rpm, adjustable

Counter Range

0~999999 cycles

Power Supply

AC 220V, 50Hz

Features:

  • Touch screen control, simple operation
  • High precision cycle counter, up to 999999 times
  • Stable rotary structure for repeatable test results
  • Wide compatibility for coating, flooring, leather and tile samples
  • Factory direct supply, custom technical support available

Send your test requirement to us. We provide professional technical support, customized test scheme and fast delivery. Contact our engineer now!

UP-1010 Taber Abrasion Tester wood floor wear resistance testing machine






Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
