Home /Products/Abrasion Testing Machine/ASTM D3884 Compliant Taber Abrasion Tester with φ110mm Specimen Dimension and 60rpm Rotating Speed

ASTM D3884 Compliant Taber Abrasion Tester with φ110mm Specimen Dimension and 60rpm Rotating Speed

1 Unit
MOQ
Negotiable
Price
ASTM D3884 Compliant Taber Abrasion Tester with φ110mm Specimen Dimension and 60rpm Rotating Speed
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Service Support: OEM ODM
MOQ: 1 PCS
Applications: Leather Products
Specification: Refer To The Actual Size Specifications
Specimen Dimension: φ110mm φ6mm
Power: 1∮,AC220V,50HZ
Highlight:

60rpm Rotating Speed Taber Abrasion Tester

,

φ110mm Specimen Dimension Abrasion Testing Machine

,

OEM ODM Support Leather Abrasion Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1010
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Unions,Papal
Supply Ability: 20 Unit/month
Product Description
Taber Abrasion Tester ASTM D3884 Coating Wear Loss Test Instrument with Vacuum Cleaner UP-1010
Applications

The Taber abrasion tester is designed for wear resistance testing on various materials including surfaces, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The testing method involves using a standard knife to cut the specimen, followed by abrasion with regulated grinding wheel models under specified load weights.

Testing Standards

DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470, QB/T2726-2005

Technical Specifications
Specification Value
Specimen Dimension φ110mm φ6mm
Grinding Wheel φ2″(MAX .45mm) 1/2″(W)
Center Space of Wheel 63.5mm
Distance Between Wheel and Test Plate 37~38mm
Rotating Speed 60rpm

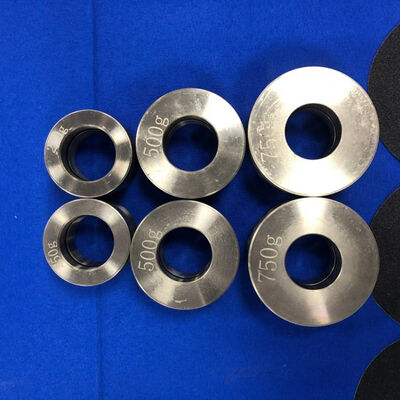

Load 250g, 500g, 750g, 1000g
Timer LCD, 0~999999
Distance Between Sample and Dust Collector 3mm
Dimension 53×32×31cm
Weight 18kg (Excluding dust collector)
Power 1∮, AC220V, 50HZ
Product Images

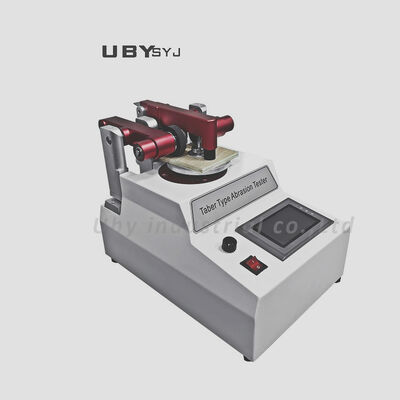

Taber Abrasion Tester front view showing control panel and testing mechanism Taber Abrasion Tester side view displaying grinding wheels and specimen holder Taber Abrasion Tester technical diagram and specifications
Our Service Process
  • Customer Inquiry: Technical consultation, product recommendations, and quotation based on requirements
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Manufacturing according to PO requirements, production updates, calibration, and timely delivery
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. All machines include 12-month warranty with free maintenance. Extended warranty available for sea transportation. Technical support provided via email, phone, or video chat with solutions within 24-48 hours.
What is the delivery time?
Standard machines: 3-7 working days (in stock) or 15-20 working days (no stock). Urgent orders receive special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to requirements, including OEM and ODM services with logo placement.
How do I install and operate the machine?
We provide English operation manuals and videos. Most machines are shipped pre-assembled - simply connect power and begin use. On-site installation assistance available when necessary.
