Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-6195

Warranty: 1 Year

Additional Service: Support Customer Customization

Custom Service: OEM,ODM

Temperature Range: -70~180ºC

Humidity Range: 20%~98%

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Basic Infomation

Certification: CE, ISO

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 10~20 work days

Payment Terms: D/P,T/T,Western Union,PAYPAL

Supply Ability: 20 Unit/month

Gallery

Product Description

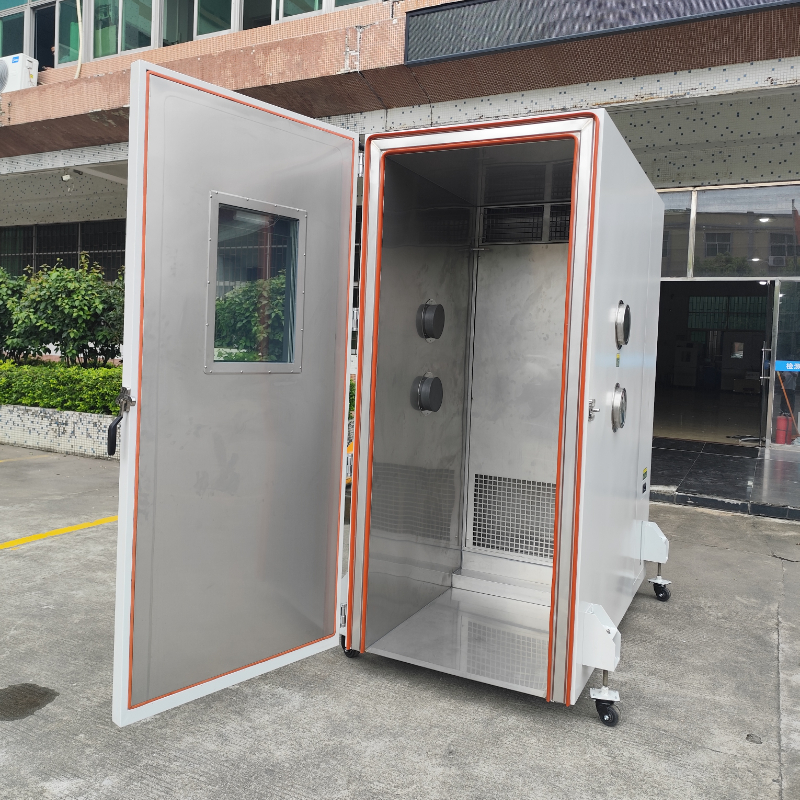

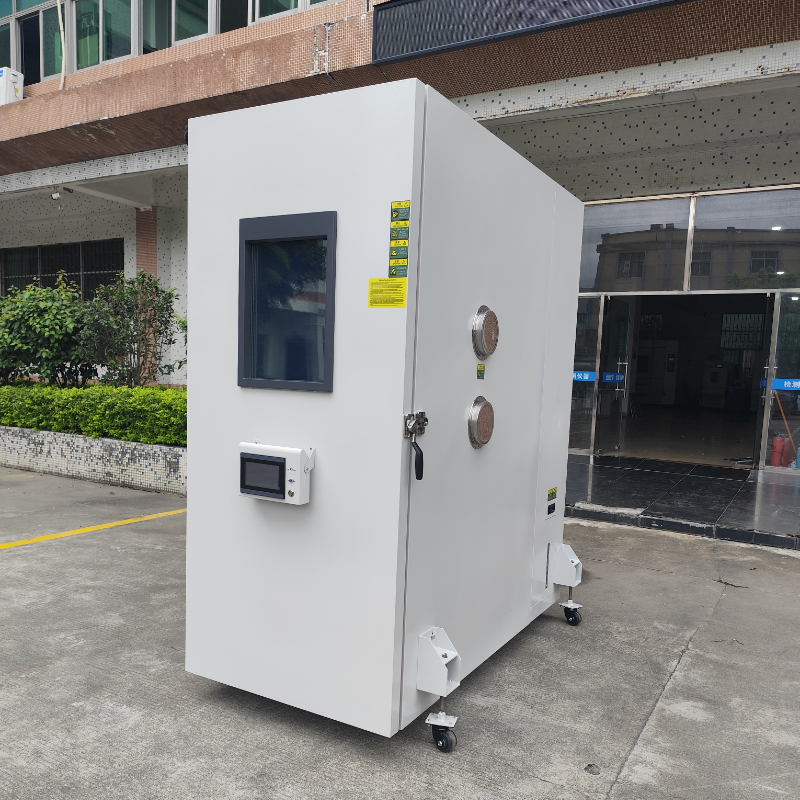

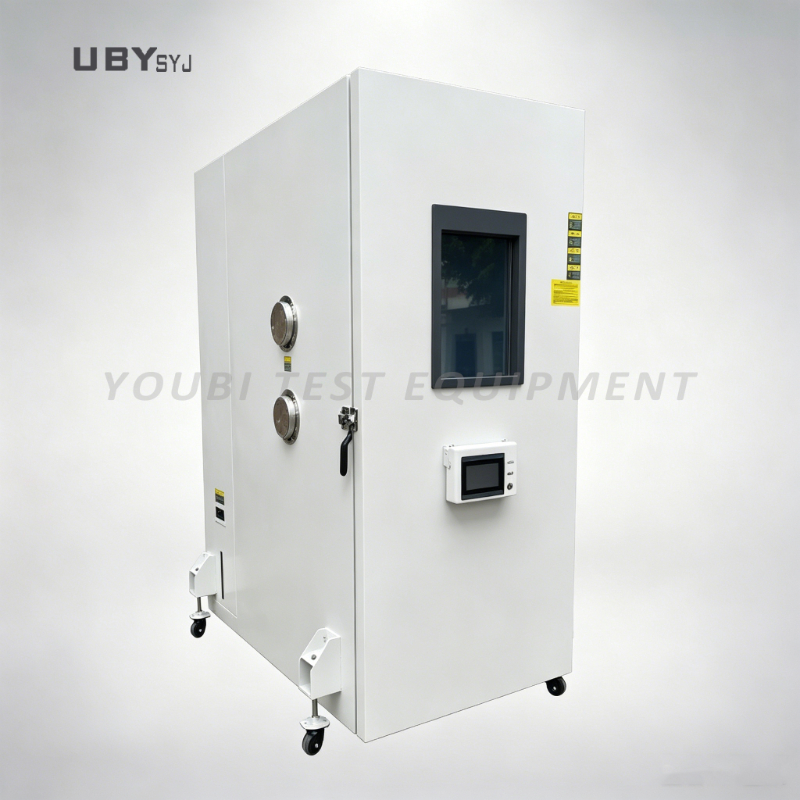

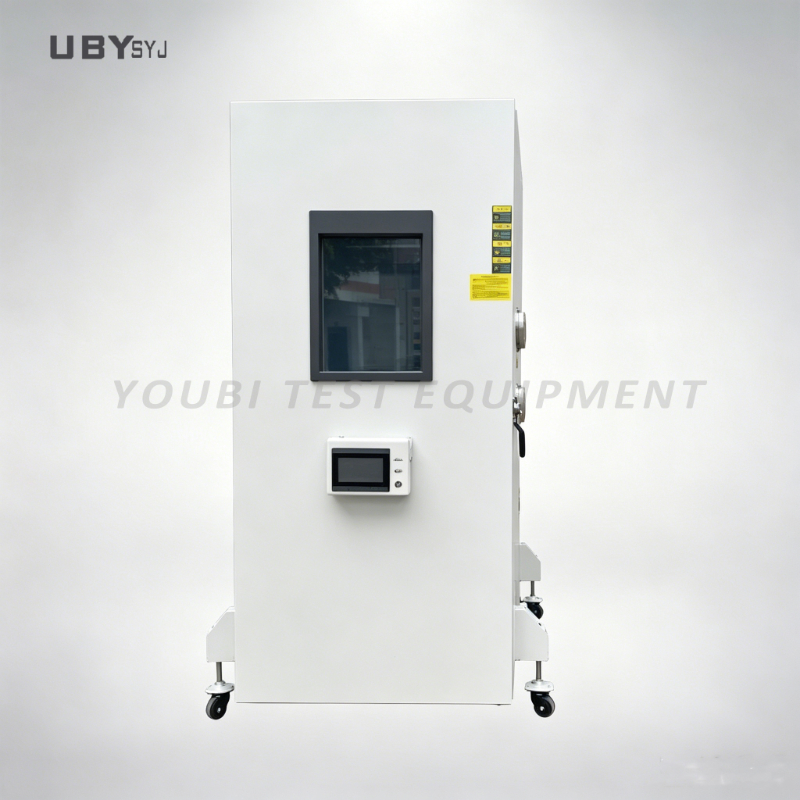

Steady State Temperature and Humidity Deviation Durability Test Chamber

Design Standard:
GB2423/T5170/10586/10592, IEC68,GJB150,JIS C60068, ASTM D4714, CNS3625/12565/12566

Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Specification:

Model		UP-6195-A	UP-6195-B	UP-6195-C	UP-6195-D	UP-6195-E	UP-6195-F
Size of inner box (W×H×D)		40×50×40cm	50×60×50cm	40×75×60cm	60×85×80cm	100×100×80cm	100×100×100cm
Size of outer box (W×H×D)		92×138×108cm	102×146×116cm	102×162×126cm	113×172×148cm	150×186×139cm	158×188×168cm
Volume of inner box		80L	150L	225L	408L	800L	1,000L
Control range of temperature and humidity		A:-20ºC~150ºC B:-40ºC-~150ºC C:-60ºC~150ºC D:-70ºC~150ºC RH20%~98%
Performance	Fluctuation of temperature and humidity	±0.5ºC;±2.5%RH
	Deviation of temperature and humidity	±0.5ºC~±2ºC;±3%RH(<75%RH);±5%RH(≥75%RH)
	Accuracy of control analysis	±0.3ºC;±2.5%RH
	Controller brand	Customized
Material	Interior	#SUS 304 Steel plate
	Exterior	White&Blue
	Thermal insulation material	High temperature and high density vinyl chloride for mate foam insulation material
System wind path circulation		Centrifugal fan - wide band forced air circulation (upper in, lower out)
Refrigerating method		Single stage mechanical compression refrigeration
Refrigerating machine		Fully enclosed piston type compressor From TAIKANG French
Refrigerant		R4O4A/Dupont environmental refrigerant(R23+R4O4)
Condensation method		Air or water cooled
Heater		Nickel-chromium electric heating wire heater
Humidifier		Semi-enclosed steam humidification
Water supply method		Fully automatic circulating water supply (manual Watering)
Standard equipment		View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1
Safety device		No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system
Power		1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
