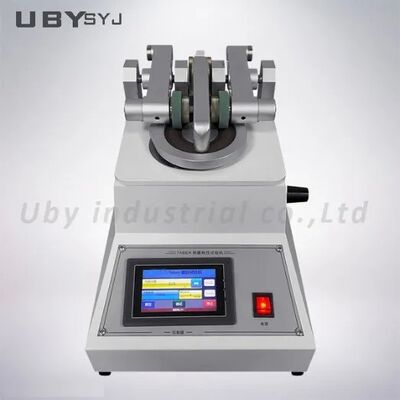

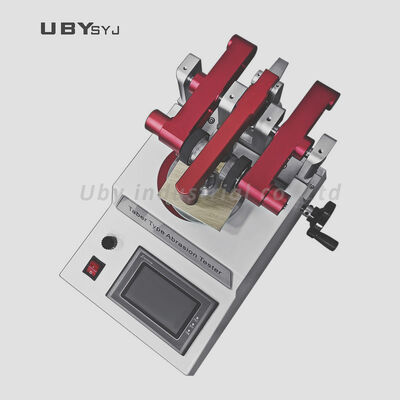

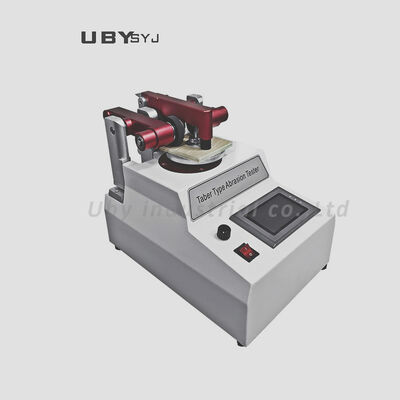

Digital Taber Abrasive with Rotating Platform for Standard Wear Resistance Testing Machine
This precision testing machine evaluates wear resistance across various materials including surfaces, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. The testing methodology employs a standard cutting knife on specimens, followed by abrasion using regulated grinding wheel models with calibrated loading weights.
Testing Standards Compliance
DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470, QB/T2726-2005
Technical Specifications
| Specification |
Value |
| Specimen Dimension |
φ110mm φ6mm |
| Grinding Wheel |
φ2″(MAX .45mm) 1/2″(W) |
| Center Space of Wheel |
63.5mm |
| Distance Between Wheel and Test Plate |
37~38mm |
| Rotating Speed |
60rpm |
| Load Options |
250g, 500g, 750g, 1000g |
| Timer |
LCD, 0~999999 |
| Distance Between Sample and Dust Collector |
3mm |
| Dimension |
53×32×31cm |
| Weight |
18kg (Excluding dust collector) |
| Power Requirements |
1∮, AC220V, 50HZ |
Our Comprehensive Service Process
Customer Inquiry Process
Technical consultation to discuss testing requirements, product recommendations, and competitive pricing based on customer specifications.
Customization Process
Engineering drawings and reference photos provided for custom requirements confirmation, followed by final solution and pricing approval.
Production and Delivery
Manufacturing according to confirmed specifications with production progress photos, factory calibration, comprehensive testing, and timely shipping coordination.
Installation and Support
Field installation services and comprehensive after-sales technical support for optimal machine performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty with 14-month free maintenance coverage considering sea transportation. Technical support is available via email or video chat with problem resolution within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to specific requirements. OEM and ODM services include logo application on equipment.
How can I install and use the machine?
Complete operation manuals and instructional videos in English provided upon order. Most machines ship fully assembled requiring only power connection. On-site installation assistance available when necessary.
