Home /Products/Abrasion Testing Machine/UP-1004 ASTM D3884 ASTM D2197 Compliant Linear Abrasion Tester with Adjustable Test Speed 2~75 Times/Min and Dry Wet Abrasion Test Modes

UP-1004 ASTM D3884 ASTM D2197 Compliant Linear Abrasion Tester with Adjustable Test Speed 2~75 Times/Min and Dry Wet Abrasion Test Modes

1
MOQ
Negotiable
Price
UP-1004 ASTM D3884 ASTM D2197 Compliant Linear Abrasion Tester with Adjustable Test Speed 2~75 Times/Min and Dry Wet Abrasion Test Modes
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-1004
Service Support: OEM ODM
Language: Chinese And English
Applications: Cookware,Coating,Painting And Etc.
Test Speed: 2~75 Times/Min Adjustable
Load Range: Standard Load 350g~2100g, Optional
Stroke Travel: 0.2" ~ 4.0" (approx. 5mm ~ 102mm), 11 Optional Stroke Lengths
Test Modes: Dry Abrasion Test / Wet Abrasion Test
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1004
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,PAYPAL
Supply Ability: 30 Unit/month
Product Description
UP-1004 Complaint With ASTM D3884 ASTM D2197 Linear Abrasion Tester For Textiles
Product Introduction
Linear Abrasion Resistance Tester designed to evaluate abrasion resistance, scratch resistance (single or multiple scratches), and color transitivity (crocking resistance or rubbing fastness) of various materials.
Applications
This tester can accommodate samples of any size or shape, making it ideal for abrasion testing of products with contoured and polished surfaces. Widely used in plastics, automotive accessories, rubber, leather, textiles, electroplating, disassembled components, lacquers, printing patterns, and more.
Compliance Standards
ASTM D3884, ASTM D2719, ASTM D5178, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799
Key Features
  • Adjustable parameters including moving distance, rotating speed, rotation number, and load
  • Various wear media and accessories available (optional sample holders and accessories for hanging tests, damage degree assessment, alcohol resistance testing, coin scratch resistance testing, etc.)
  • Ensures stability and accuracy with high-quality abrasion materials; grinding head matches the size and shape of pencil rubber wipe head
Technical Specifications
Movement Distance Options 5 types optional | Standard: 0.5", 1", 2", 3", 4" or specified
Test Speed 2~75 times/min, adjustable (2,15,30,40, and 60 return/min are TABER standard)
Test Times 999,999 times
Test Load Standard load 350g~2100g, optional
Power 220V, 50/60Hz

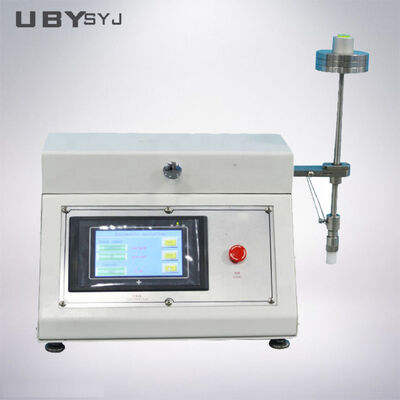

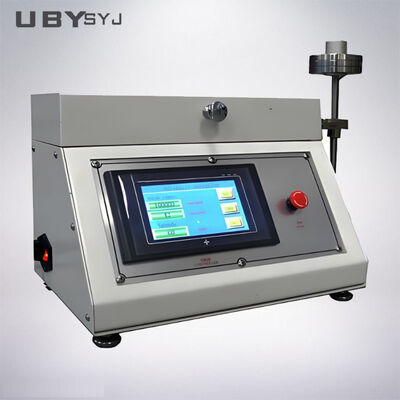

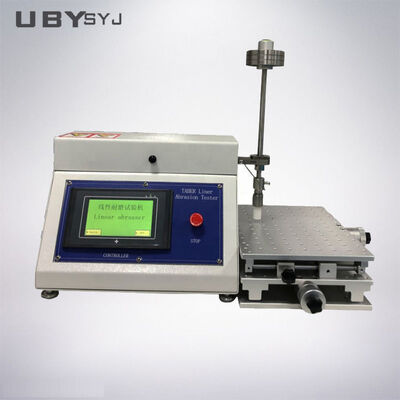

Product Images
UP-1004 ASTM D3884 ASTM D2197 Compliant Linear Abrasion Tester with Adjustable Test Speed 2~75 Times/Min and Dry Wet Abrasion Test Modes 0 UP-1004 ASTM D3884 ASTM D2197 Compliant Linear Abrasion Tester with Adjustable Test Speed 2~75 Times/Min and Dry Wet Abrasion Test Modes 1
Our Service Process
1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide customized pricing.
2) Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
3) Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and arrange packaging and shipping.
4) Installation and After-Sales: Provide field installation and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment (extended to 14 months considering sea transportation). For technical issues, contact us via email or phone - we provide solutions within 24-48 hours through remote diagnostics and video chat if necessary.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin use. On-site installation assistance is available when necessary.
