Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range

1
MOQ
Negotiable
Price
Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-1012
Service Support: OEM ODM
Language: Chinese And English
Applications: Cookware,Coating,Painting And Etc.
Test Modes: Dry Abrasion Test / Wet Abrasion Test
Stroke Travel: 0.2" ~ 4.0" (approx. 5mm ~ 102mm), 11 Optional Stroke Lengths
Moving Speed: 2 ~ 75 Cycles/min; Common Preset Speeds: 2, 15, 25, 30, 40, 60 Cycles/min
Load Range: Standard Load 350g~2100g, Optional
Counting Range: 0 ~ 999,999 Cycles
Power: 220V, 50/60Hz
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-1004
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,PAYPAL
Supply Ability: 30 Unit/month
Product Description
UP-1004 Digital-Display Linear Abrasion Resistance Tester Supports Real-Time Data Reading and Recording
Product Overview

The Digital-Display Linear Abrasion Resistance Tester evaluates abrasion resistance, scratch resistance (single or multiple scratches), and color transitivity (crocking resistance or rubbing fastness) of various products.

Applications

This tester can accommodate samples of any size or shape, making it ideal for products with contoured and polished surfaces. Commonly used for testing computer mice, IT product plastic surface paint, and widely applied in plastics, automotive accessories, rubber, leather, textiles, electroplating, disassembled components, lacquers, and printing patterns.

Compliance Standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799

Key Features
  • Configurable parameters including moving distance, rotating speed, rotation number, and load
  • Multiple wear media and accessory options available
  • Ensures test stability and accuracy with high-quality abrasion materials
  • Standard grinding head matches rubber wipe head dimensions for consistent testing
Technical Specifications
Movement Distance Options 5 types available | Standard: 0.5", 1", 2", 3", 4" or custom specified
Test Speed 2-75 times/min, adjustable (2,15,30,40, and 60 return/min are TABER standard)
Test Cycles Up to 999,999 times
Test Load Standard load 350g-2100g, optional configurations available
Power Requirements 220V, 50/60Hz
Product Images

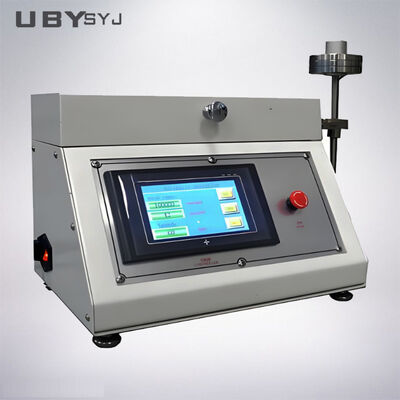

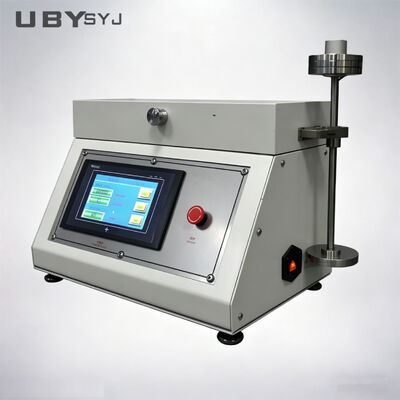

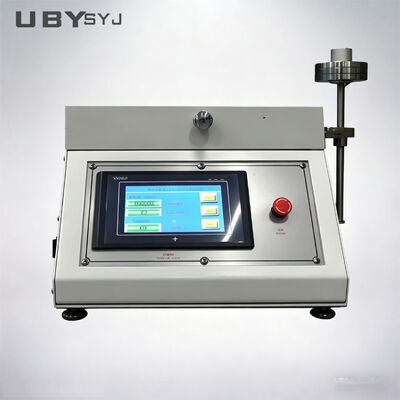

Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range 0 Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range 1 Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range 2 Digital-Display Linear Abrasion Resistance Tester with Real-Time Data Reading, Multiple Test Modes, and Adjustable Load Range 3
Our Service Process
  • Customer Inquiry: Technical consultation, requirement analysis, and product recommendation with competitive pricing
  • Customization: Detailed drawings and reference photos for custom specifications confirmation
  • Production & Delivery: Transparent production updates, factory calibration, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty with free maintenance. For international shipping, we extend this to 14 months. Technical support is available via email or video chat, with solutions provided within 24-48 hours of problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent orders receive special priority handling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. OEM and ODM services including logo placement are available.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
