Home /Products/Abrasion Testing Machine/Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine

Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine

1 Unit
MOQ
Negotiable
Price
Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Name: Abrasion Resistance Testing Machine
Model NO.: UP-1000
Friction Load: 908g ( 2lb), 1810g (4 Lb)
Friction Speed: 43 Times/Min ( 21,43,85, 106 Times/Min, Adjustable
Friction Stroke: 60mm
Friction Area: 50×100 Mm
Service Support: OEM ODM
Language: Chinese And English
Highlight:

Ink Friction Testing Machine

,

Ink Friction Testing Apparatus

,

UP-1000 Abrasion Resistance Testing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-1000
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Ink Friction Tester Abrasion Resistance of Ink Layer Tester UP-1000
Product Overview

This machine is applicable to testing ink layer of materials like labels, folding cartons, corrugated boxes, etc. Ink Rub Tester can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other products.

Compliance Standards

GB/T 7706; GB/T 17497.3; ISO 9000; JISK5701; ASTMD5264; TAPPI-UM486T

Application Functions
  • Dry grinding test
  • Wet grinding test
  • Bleaching change test
  • Paper fuzzy test
  • Special friction test

Effectively analyze the problem of poor rub resistance, poor adhesion, ink layer peeling off, ink discoloration, low printing durability of PS plate and poor coating hardness of other products.

Product Features
  • LCD English display, fully automatic test
  • Mechatronics principle with programmable friction test cycles
  • Power-off memory function maintains previous settings
  • High-precision motor with precision optical shaft bearings
  • Linear reciprocating friction mechanism
Technical Specifications
General Specifications
Packaging Dimensions 390 × 500 × 550mm (W×D×H)
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight 40kg
Standard Features
Feature Specification
Display LED display and Microcomputer control
Specimen Size Minimum Size: 230 × 50 mm
Friction Speed 43 times/min (21, 43, 85, 106 times/min, adjustable)
Friction Load 908g (2LB), 1810g (4LB)
Friction Stroke 60 mm
Friction Area 50 × 100 mm
Frequency Setting 0-9999 times, auto-shutdown
Outside Dimension (L×W×H) 330 × 300 × 410mm
Weight 15Kg
Power AC220V, 60W

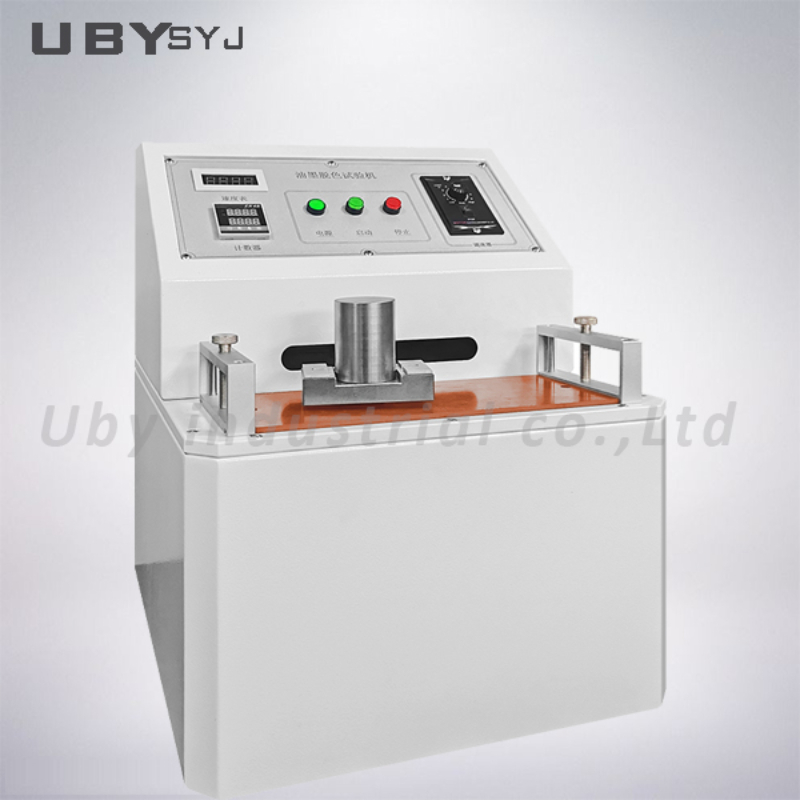

Product Images
Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine 0 Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine 1 Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine 2 Ink Friction Testing Machine Ink Layer Tester UP-1000 Abrasion Resistance Testing Machine 3
Our Service
Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.

Tag:

Abrasion Resistance Tester

Abrasion Resistance Testing Machine

Taber Abrasion Tester
